2M-Series

Product Type:

PC Mount Miniature Toggle Switches

Description:

The 2M family of miniature toggle switches is comprised of three switch series: the 2M1-Series miniature toggle switch, the 2MS-Series sealed miniature toggle switch, and the 2M1H-Series premium sealed miniature toggle switch. These series all feature PC mounting and offer a variety of ratings, circuits, contact materials, terminal platings, toggle styles and lengths, and optional color caps.

View Similar Products »
  • Carling Technologies 2M-Series Miniature Toggle Switches

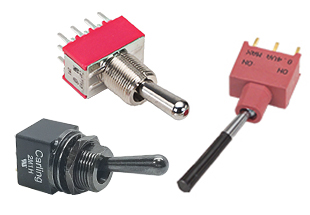

Carling Technologies 2M-Series Miniature Toggle Switches

Specs

Certifications

2M1-Series: UL & CSA Approved, IP67
2M1H-Series: UL Approved, IP67
2MS-Series: UL & cUL Approved, IP67

Number of Poles

2M1-Series: 1-4 poles
2M1H-Series: 1-2 poles
2MS-Series: 1-3 poles

Ratings

5A @ 125 VAC or 28VDC
2A @ 250VAC

0.4VA max @ 20V max (AC/DC)

Circuits

On-On
On-(On)
On-Off-On
(On)-Off-(On)
On-Off-(On)
On-On-On

Dielectric Strength

1500 Volts RMS @ sea level

Insulation Resistance

1000 megohms (minimum)

Actuator Style

Round bat toggles
paddles
retangular toggle
flat toggle
locking lever

Case Material

2M1 & 2M1H-Series: Dially phthalate (DAP) (UL94V-0)
2MS-Series: Glass filled nylon 6/6, flame retardant, heat stabilized (UL94V-0)

Toggle Material

2M1-Series: Brass, chrome plated
2M1H-Series: Brass, black finish with o-ring seal
2MS-Series: Brass, chrome plated, internal o-ring sealed

Bushing Material

2M1-Series: Brass, nickel plated
2M1H-Series: Brass, black finish with o-rng seal
2MS-Series: Glass filled nylon 6/6, flame retardant, heat stabilized (UL94V-0)

Housing Material

Stainless Steel

Switch Support

Brass, tin plated

Terminal Options

Solder Lug
PCB
PC Mount
Snap-in, U bracket
Wire Wrap

Mounting Hole Dimensions

See PDF datasheet file above for dimensions
and more
