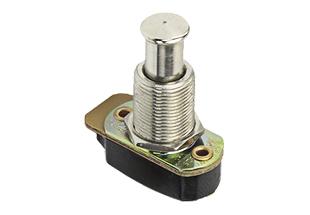

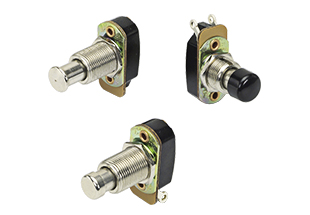

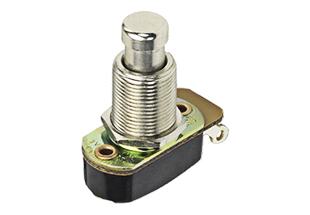

16-3P-Series

Product Type:

Light Actuation Pushbutton Switch

Description:

The 16-3P-Series pushbutton switches are single pole and AC rated up to 3 amps. These momentary action switches have a slow-make, slow-break contact mechanism in single and double throw construction. They require only 4 ounce and up to 1 pound of actuation force. Optional overtravel circuit and ideal for finger actuation.

Download Datasheet Request a Quote or Sample Configure a PartBrowse Standard Parts
View Similar Products »

Specs

Certifications

UL CSA

Number of Poles

1 pole

Ratings

3A 125VAC

1A 125V

Circuits

Off-(On)
Off-(On) with overtravel
On-(Off)
On-On
On-On with overtravel

2 Circuit:
1 On- 1 Off
1 On- 1 Off with overtravel

Dielectric Strength

1,000 V RMS (minimum)

Insulation Resistance

100 megohms (minimum)

Base Material

Phenolic

Actuator Style

Pushbutton

Actuator Material

Brass/Nickel Plate

Bushing Material

Brass/Nickel Plate

Terminal Options

Solder Lugs
Wire Leads

Mounting Method

Bushing Mount

Mounting Hole Dimensions

.500" diameter; 12.70mm diameter

Value Added

Bushing accessories available
Plastic color caps available
Custom lead lengths available
Custom strip lengths available
and more

Resources

Switches - Pushbutton

Applications

Test & Measurement
Audio-Visual
