Eco-Friendly

622/632-Series

Product Type:

Small-Sized Rocker Switches

Description:

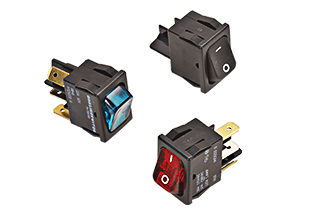

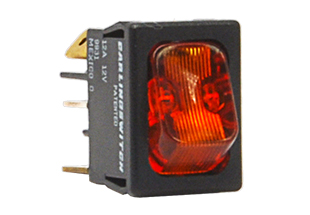

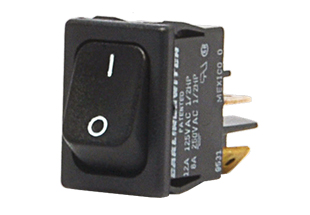

The 622/632-Series are available in non-illuminated or illuminated, single or double pole configurations. With silver-alloy butt contacts, these switches will handle inrush spikes up to 100 amps and steady state current to 12A 125VAC. They fit into industry standard cutout dimensions and include a quick-make contact mechanism. Additional features include a small, shallow base and availability of a single pole circuit with an independent lamp. These switches are offered in a single throw and maintained. The lighted 632-series features a variety of illumination circuit options available with LED, incandescent and neon style lamps. Base is made of polysulfone and actuator of polycarbonate for flammability resistance.

1-2 Poles; 8A 250VAC; 12A 125VAC; ½ HP 125-250VAC

View Similar Products »

Specs

Certifications

UL CSA

Number of Poles

1 & 2 pole

Ratings

8A 250VAC 1/2HP
12A 125VAC
1/2HP 125-250VAC

12A 28V 1/2HP

Circuits

On-Off

Dielectric Strength1,500 V RMS (minimum)
Insulation Resistance

50 megohms (minimum)

Base Material

Polysulfone
Flammability Rating - UL 94 V-0

Actuator Style

Solid Color Rocker
Translucent Solid Color Rocker

Actuator MaterialPolycarbonate
Terminal Options

Solder Lugs
.187 QC Tabs

Mounting Method

Snap-In

Mounting Hole Dimensions

.508" x .756"; 12.9mm x 19.2mm

Value Added

Custom colors and legends available LED's
Wire leads with connectors
and more

Resources

Applications

Handheld Appliance
Audio-Visual
Power Supplies
Medical Equipment
