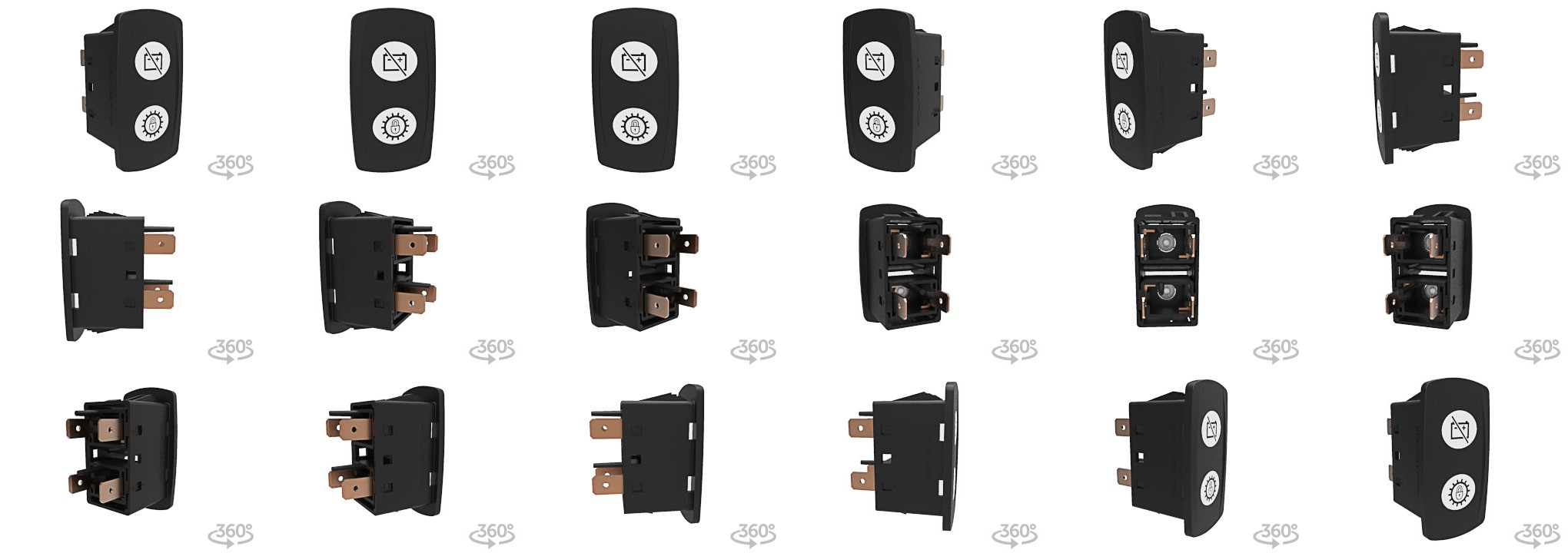

VP-Series: Contura Illuminated Plug

Product Type:

Illuminated Indicator

Description:

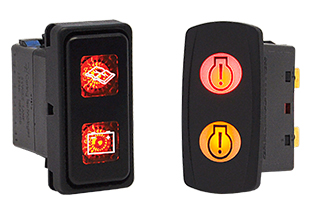

The VP-Series illuminated plug offers an additional design option for the modular and flexible V-Series Contura system. It is offered with removable/replaceable lamps, Contura styling, and LED illumination with your choice of one or two lenses. Using the same cutout as the Contura line of rocker switches, the VP-Series Illuminated Plug also has a unique panel retention system which accommodates panel thicknesses up to 1/2". Three different style housings (flush, raised panel, oval) assure seamless integration into most any dashboard panel. A one-piece polarized connector, which assures simple, economical installation, is also available.

The VP-Series illuminated plug is vibration, shock, thermoshock resistant and operate in temperatures ranging from -40°C to 85°C.

View Similar Products »

Specs

Lamp Ratings

Neon
125 VAC
250 VAC

Incandescent
3V - 24V

LED
2VDC - 24VDC

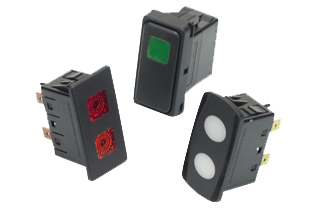

Housing Style

Flush bracket (Contura II & III style)
Raised bezel (Contura X & XI style)
Oval bezel (Contura V style)

Base Material

Nylon

Bracket/Bezel Material

Nylon

Lens Material

polycarbonate

Termination

.250 QC Tabs

Mounting Method

Snap-In

Mounting Hole Dimensions

.83" x 1.45" ; 21.08mm x 36.83mm

Value Added

Custom colors and legends available
Optional one piece polarized connector
Housing and lamp modules can be ordered separately
and more
