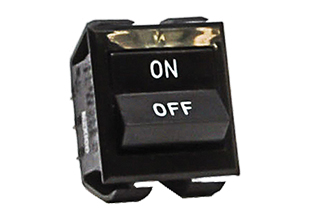

TG/LTG-Series: Mid-Sized Tippette™

Product Type:

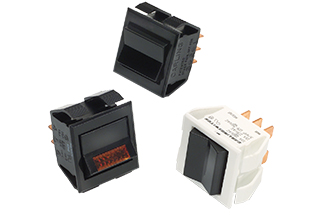

Mid-Sized Rocker Switches

Description:

The TG/LTG-Series Mid-Sized Tippette™ rocker switches are single or double pole featuring snap-in mounting, nylon construction & optional illumination. These AC rated switches are also suitable for low voltage DC applications. They are offered in a single or double throw momentary and maintained circuits. Options include a variety of rocker colors, lamp voltages, and terminations.

1 & 2 pole; 10A 250VAC & 15A 125VAC max ratings; UL & CSA approved

Download Datasheet Request a Quote or Sample Configure a PartBrowse Standard Parts
View Similar Products »

Specs

Certifications

UL CSA

Number of Poles

1 & 2 pole

Ratings

5A 250VAC
10A 125VAC
1/2HP 125-250VAC


5A 250VAC 1/2HP
10A 125VAC 1/2HP

10A 25OVAC
15A 125VAC
3/4HP 125-250VAC

10A 120VAC
15A 125VAC

Circuits

On-Off
(On)-Off
On-(Off)
On-On
On-(On)
On-Off-On

Dielectric Strength

1,000 V RMS (minimum)

Insulation Resistance

100 megohms (minimum)

Base Material

Nylon

Actuator Style

Angled Rocker
Paddle

Actuator Material

Nylon or Polycarbonate

Bezel Material

Nylon

Terminal Options

Solder Lugs
.250 QC Tabs
.187 QC Tabs
Wire Leads

Mounting Method

Snap-In

Mounting Hole Dimensions

1.00" x 1.125"; 25.40mm x 28.57mm

Value Added

Custom colors and legends available
Dependent and independent lamps offered
and more

Resources

Applications

Appliances
HVAC
Commercial Food
On-Highway
Medical Equipment
