Eco-Friendly

CRS-Series

Product Type:

Rotary Encoder Switch

Description:

The CRS-Series rotary encoder switch features an IP67 rating for above-panel components and mechanical and electrical endurance ratings of 500,000 cycles, making it ideal for work trucks, farm equipment, and construction vehicles. Available with an operating voltage rating of 3.3 V DC or 5.0 V DC, this rotary encoder switch is available for 4-way directional, rotary, and push-button input, rotary and push-button input, or rotary-only input.

* For a complete CAN solution, please see our CKJ-Series.


Download Datasheet Request a Quote or Sample Configure a Part
View Similar Products »

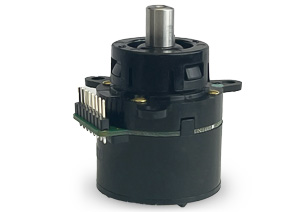

  • CRS-Series rotary encoder switch

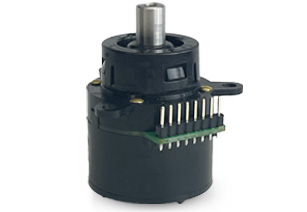

  • CRS-Series rotary encoder switch
CRS-Series rotary encoder switch
CRS-Series rotary encoder switch
CRS-Series rotary encoder switch

Specs

Operating Voltage

3.3 or 5 VDC

Electrical Endurance

Rotary; 500,000 cycles of one full rotation
Push-button; 500,000 cycles
Joystick; 500,000 cycles in each direction

Operating Temperature

-40°C to + 85°C

Sealing Protection

 IP67 above panel

Thermal Cycling (Change of Temperature)

 Test Nb, -40°C to 85°C, dwell: 3 hours; transfer rate: (3 ± 0.6°C)/min, 2 cycles

Mounting

3x mounting holes

Additional Specifications

View data sheet for complete specifications

Resources

Switches - Digital Switching

Applications

Truck
Bus
Construction
Mining
Agricultural

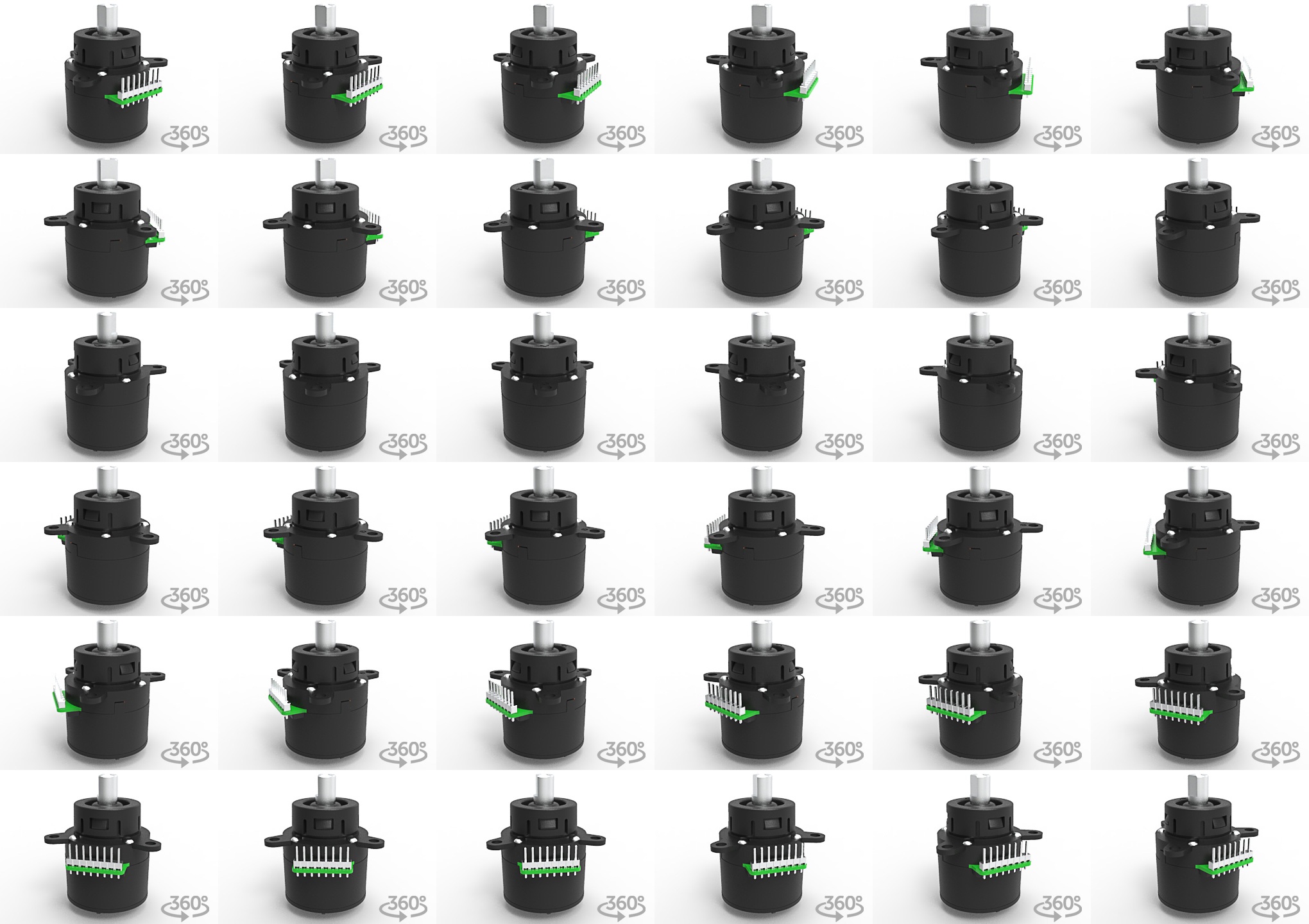

3D Files
