Eco-Friendly

EPB-Series

Product Type:

Electronic Parking Brake Switch

Description:

The EPB-Series is a configurable electronic parking brake switch for 12/24 VDC systems. Featuring IP54-rated sealing of above-panel components and an electrical endurance rating of 1,000,000 cycles, the EPB-Series switch is ideal for commercial vehicles.

The durable EPB switch can be configured with parking brake only, parking brake with auto hold, or parking brake with auto hold and trailer brake functions. In addition, there are multiple options for configuring the switch for hardwired signals or SAE J1939-compliant CAN protocol.

View Similar Products »

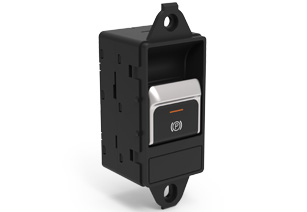

  • EPB-Series electronic parking brake switch

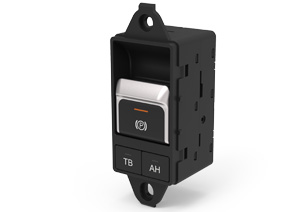

  • EPB-Series electronic parking brake switch
EPB-Series electronic parking brake switch
EPB-Series electronic parking brake switch
EPB-Series electronic parking brake switch

Specs

Operating VoltageDesigned for 12/24 VDC systems
CAN ProtocolSAE J1939 compliant
Baud Rate250-500Kbps
Electrical EnduranceOperating 1,000,000 cycles, Rate 15~20cycles/minute, with 28V 100mA, 20% at 85°C, 20% at -40°C, 60% at 25°C. Force deviation <30%
Limit SwitchMicro switch, two channels
IlluminationLED backlit icon, dimmable illumination, controlled by CAN messages
SealingIP54, for above-panel components of actual switch
Operating Temperature-40°C to +85°C
Weight102 grams
Additional specificationsView data sheet for complete specifications

Resources

Switches - Digital Switching

Applications

Work Trucks
Commercial Vehicles
Construction Equipment
Agricultural Equipment

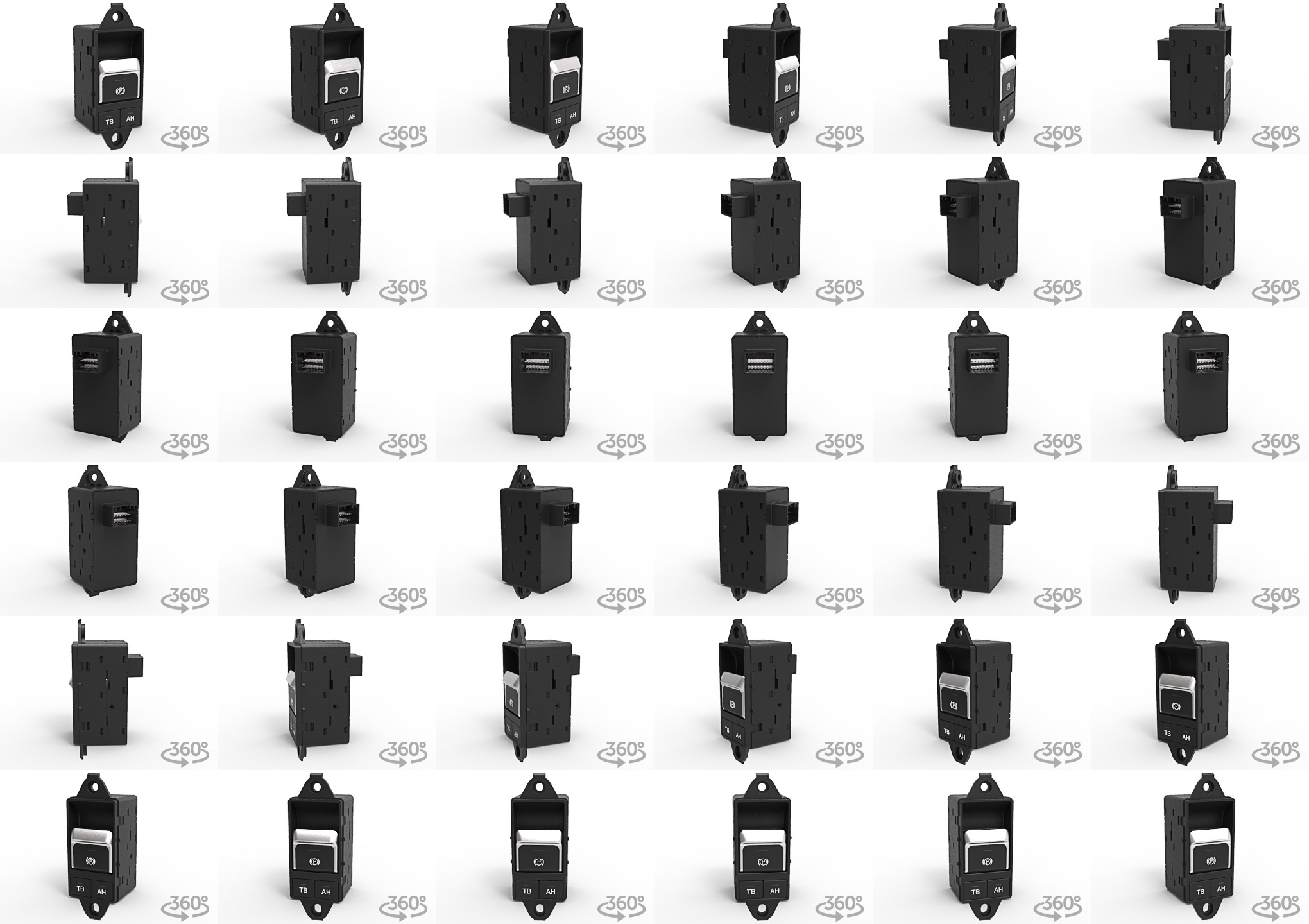

3D Files
