TTG-Series: Mid-Sized Tippette

Product Type:

Mid-Sized Rocker Switches

Description:

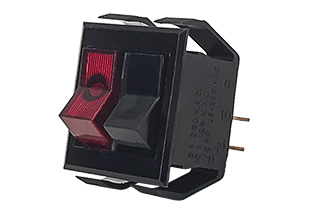

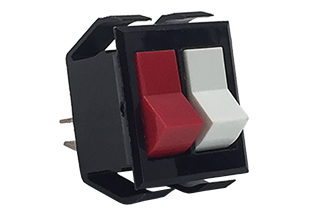

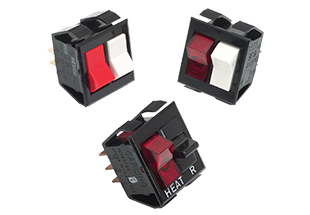

The TTG Series Mid-Sized Tippette rocker switches consist of two single pole illuminated or non-illuminated in a common base. Each pole can have the same or different switch function. These AC rated switches are also suitable for low-voltage DC applications. Options include a range of single or double throw momentary and maintained circuits, a variety of rocker styles, colors, lamp voltages, and terminations.

1-pole; 20A 125-250VAC H max rating; UL & CSA approved.

View Similar Products »

Specs

Certifications

UL CSA

Number of Poles

1 pole

Ratings

5A 250VAC
10A 125VAC
1/2HP 125-250VAC

5A 250VAC 1/2HP
10A 125VAC 1/2HP
5A 125VAC L

10A 25OVAC
15A 125VAC

10A 250VAC
15A 125VAC
3/4HP 125-250VAC

10A 125VAC
15A 125VAC
20A 125-250VAC H
3/4HP 125-250VAC

Circuits

On-Off
(On)-Off
On-(Off)
On-On
On-(On)
On-Off-On

Dielectric Strength

1,000 V RMS (minimum)

Insulation Resistance

100 megohms (minimum)

Base Material

Nylon

Actuator Style

Angled Rocker
Paddle
Short Paddle

Actuator Material

Nylon

Bezel Material

Nylon

Terminal Options

Solder Lugs
.250 QC Tabs
.187 QC Tabs
Wire Leads

Mounting Method

Snap-In

Mounting Hole Dimensions

1.00" x 1.125"; 25.40mm x 28.57mm

Value Added

Custom colors and legends available
and more

Resources

Applications

Appliance
HVAC
Food Service
Transportation
Medical Equipment
