About this product

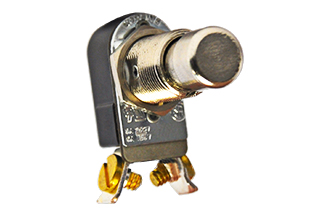

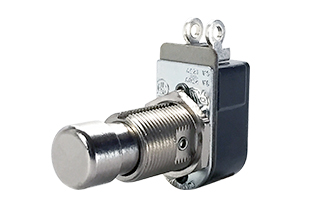

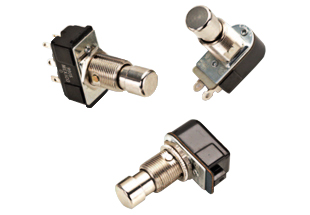

The 110/316P-Series pushbutton switches are single or double pole heavy duty AC/DC rated switches suitable for foot switches. This versatile single or double throw construction switch is available in maintained and momentary circuits with a variety of termination and rating options. It features a quick-make, quick-break contact mechanism which is both non-teasable and self-cleaning. The 110-Series provides a compact yet rugged solution to general purpose switch needs. Further, alternate action circuit, metal construction and stiff (6-8lb.) actuation force have combined to make this switch a pillar in the Music Industry and Audiovisual Markets.
| Certifications | UL CSA |
| Number of Poles | 1 & 2 pole |
| Ratings | 3A 250V |
| Circuits | Off-On |
| Insulation Resistance | 100 megohms (minimum) |
| Base Material | Phenolic |
| Actuator Style | Nickel Plated Pushbutton |
| Actuator Material | Brass/Nickel Plate |
| Terminal Options | Solder Lugs - End |
| Mounting Method | Bushing Mount |
| Mounting Hole Dimensions | .500" diameter; 12.70mm diameter |
| Value Added | Bushing accessories available |
Music Industry
Audio-Visual
Electronic Road Signs
