Eco-Friendly

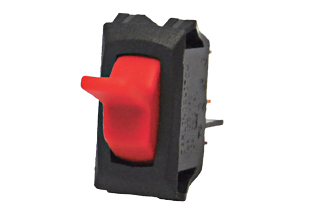

LRA-Series: Curvette

Product Type:

Mid-Sized Rocker Switches

Description:

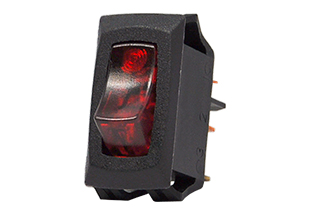

The LRA-Series Curvette single pole rocker switches are illuminated with snap-in mount. With their patented mounting ear design, these switches are compatible with a wide range of standard panel cutouts. Available in a maintained single throw circuit and in a variety of rocker styles, colors, lamp voltages, legend options, and terminations. They have a rated life of 50M cycles @ rated load.

Since its introduction, the Curvette switch has become the barometer for versatility and performance in the mid-sized switch market. This lighted version features the very same self cleaning contacts, International approvals, along with a wide variety of circuits, ratings, and actuator options that make the Curvette the switch of choice for a large range of applications.

1 pole; 10A 250VAC, 16A 125VAC, 10(4)A 250VACu T85 ratings; UL, CSA, VDE, SEMKO, DEMKO, NEMKO, FIMKO, SEV and BEAB approved.

View Similar Products »

Specs

Certifications

UL CSA VDE SEMKO DEMKO NEMKO FIMKO SEV BEAB

Number of Poles

1 pole

Ratings

10A 250VAC
16A 125VAC
10(4)A 125VACu

10A 250VAC
16A 125VAC
6(4)A 250VACu T85

10A 250VAC
16A 125VAC
10(4)A 250VACu T85

LOW VOLTAGE
FOR 6,12,18, & 24
VOLT LAMPS

Circuits

Off-On

Dielectric Strength

1,000 V RMS (minimum)

Insulation Resistance

100 megohms (minimum)

Base Material

Nylon

Actuator Style

Clear Rocker
Translucent Paddle
Solid Color Translucent Rocker

Actuator Material

Polycarbonate or Transclucent Nylon

Terminal Options

.250 QC Tabs
Solder Lug Terminals
Wire Leads

Mounting Method

Snap-In

Mounting Hole Dimensions

.480" x 1.072"; 12.19mm x 27.23mm

Value Added

Custom colors and legends available
Wire leads with connectors
and more

Resources

Applications

HVAC
Office Lighting
Transportation
Commercial Food
Lawn & Garden
Power Strip
Medical Equipment
