BD1-Series

Product Type:

Battery Disconnect Switch

Description:

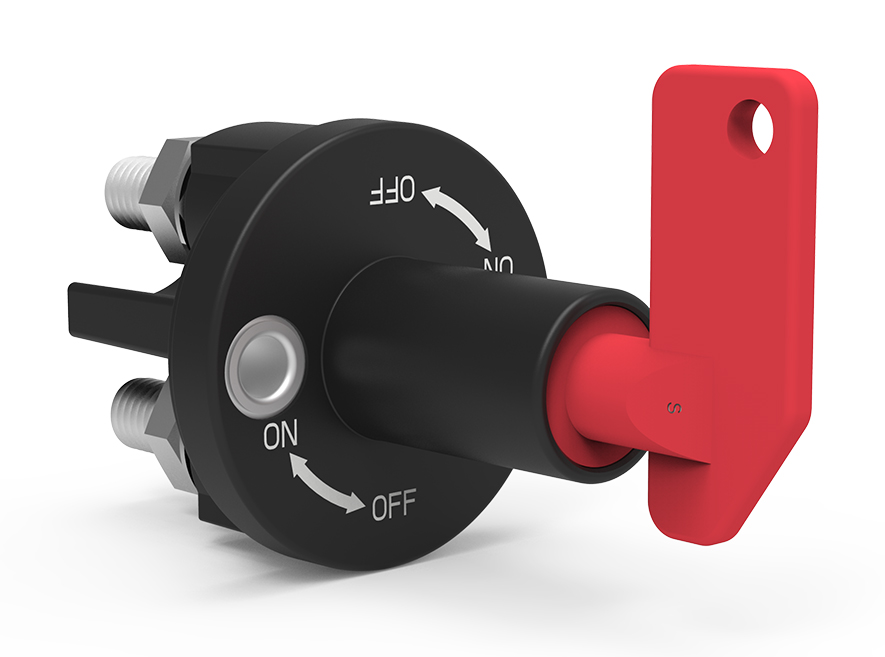

Carling Technologies IP67 sealed BD1-Series battery disconnect switch is designed to minimize battery drain, ensure maintenance personnel safety. The optional removable key adds an extra layer of security to protect against vehicle theft.

View Similar Products »
  • BD1-Series 250 Amp Battery Disconnect Switch
BD1-Series 250 Amp Battery Disconnect Switch

Specs

Number of Poles

1 Pole

Ratings

250A @ 12/24VDC

Circuits

On-Off

Dielectric Strength

50HZ, 1200VAC

Insulation Resistance

Minimum of 100 Megohms 1 min @ 500VDC.

Base Material

Glass Filled Nylon

Actuator Style

Removable or Non-Removable Key

Actuator Material

Glass Filled Nylon

Bracket Material

Glass Filled Nylon

Terminal Options

M10 Stud, 19mm length
M10 Stud, 27mm length

Mounting Method

Screw Mount

Resources

Switches - Battery Disconnect

Applications

On/Off-Highway Equipment
Military
Marine

3D Files



    Back to Top

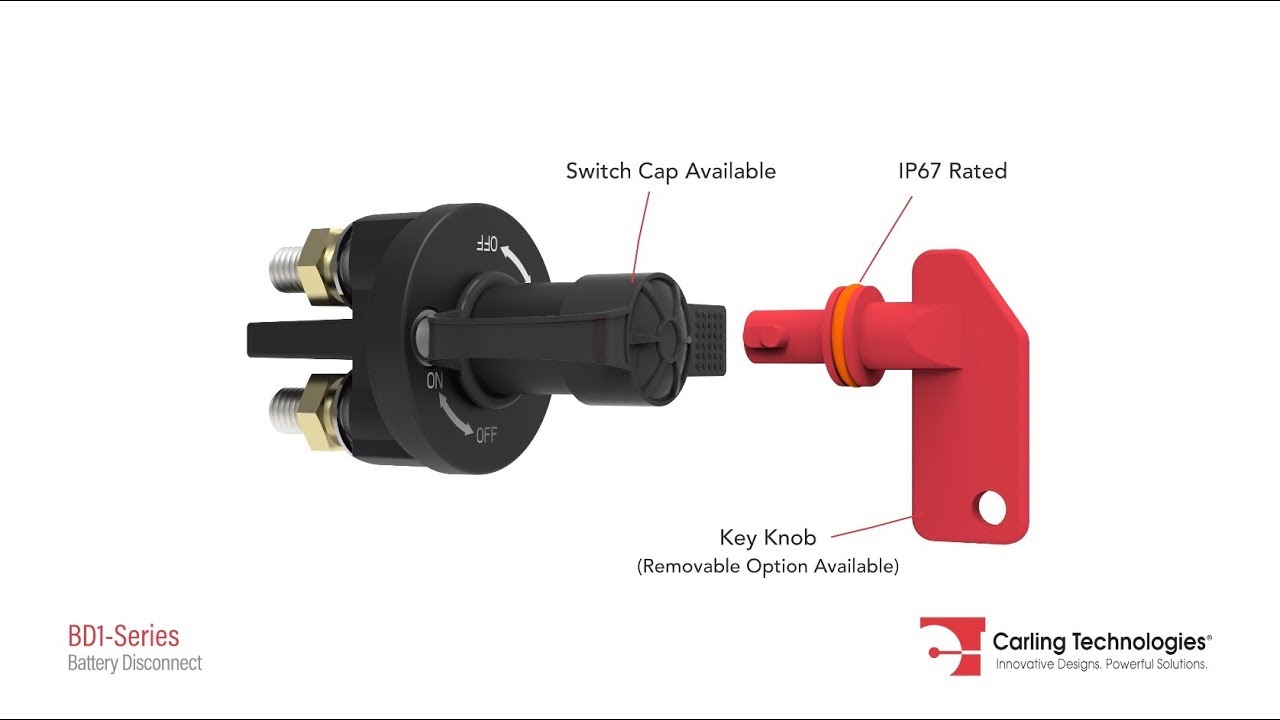

    BD1-Series Video
