About this product

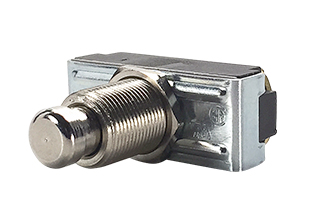

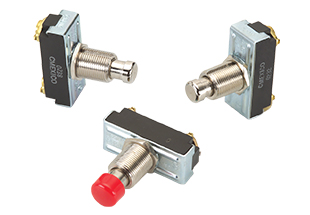

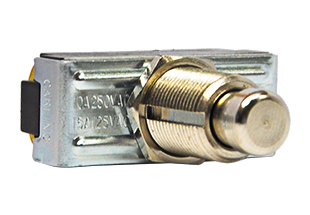

The 170/172-Series pushbutton switches are single pole, high amperage switches suitable for shallow back panel applications. These single throw momentary action switches have a slow-make, slow-break contact mechanism. They require 2.5 pounds of actuation force, and are AC rated up to 15 amps at 125V AC.
| Certifications | UL CSA |
| Number of Poles | 1 pole |
| Ratings | 10A 250VAC |
| Circuits | On-(Off) |
| Insulation Resistance | 100 megohms (minimum) |
| Base Material | Phenolic |
| Actuator Style | Nickel Plated Pushbutton |
| Actuator Material | Brass/Nickel Plate |
| Bushing Material | Brass/Nickel Plate |
| Terminal Options | Solder Lugs |
| Mounting Method | Bushing Mount |
| Mounting Hole Dimensions | .500" diameter; 12.70mm diameter |
| Value Added | Bushing accessories available |
