AV/AVH-Series

Product Type:

Illuminated/Anti-Vandal Pushbutton

Description:

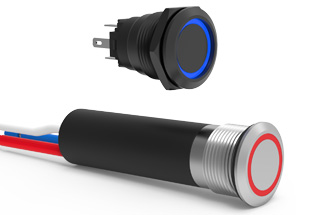

The AV/AVH-Series sealed switch product line features a sleek design with various LED illumination options. These single pole switches are available with momentary and maintained circuits, with quick connect tab terminals for easy installation and daisy chaining.

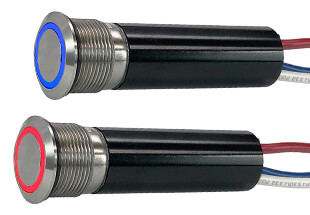

The high powered AVH-Series also features ratings up to 30 amps, and safeguards internal switch circuitry with integrated overload protection and thermal cut off, while providing superior safety and performance capabilities. Switching options include ON-OFF, as well as progressive circuits perfectly suited for NAV/ANCHOR functions.

View Similar Products »
  • AV/AVH-Series | Anti-Vandal Switches
  • AV-Series Lighted Pushbuttons in Stainless, Black, Red and Gold

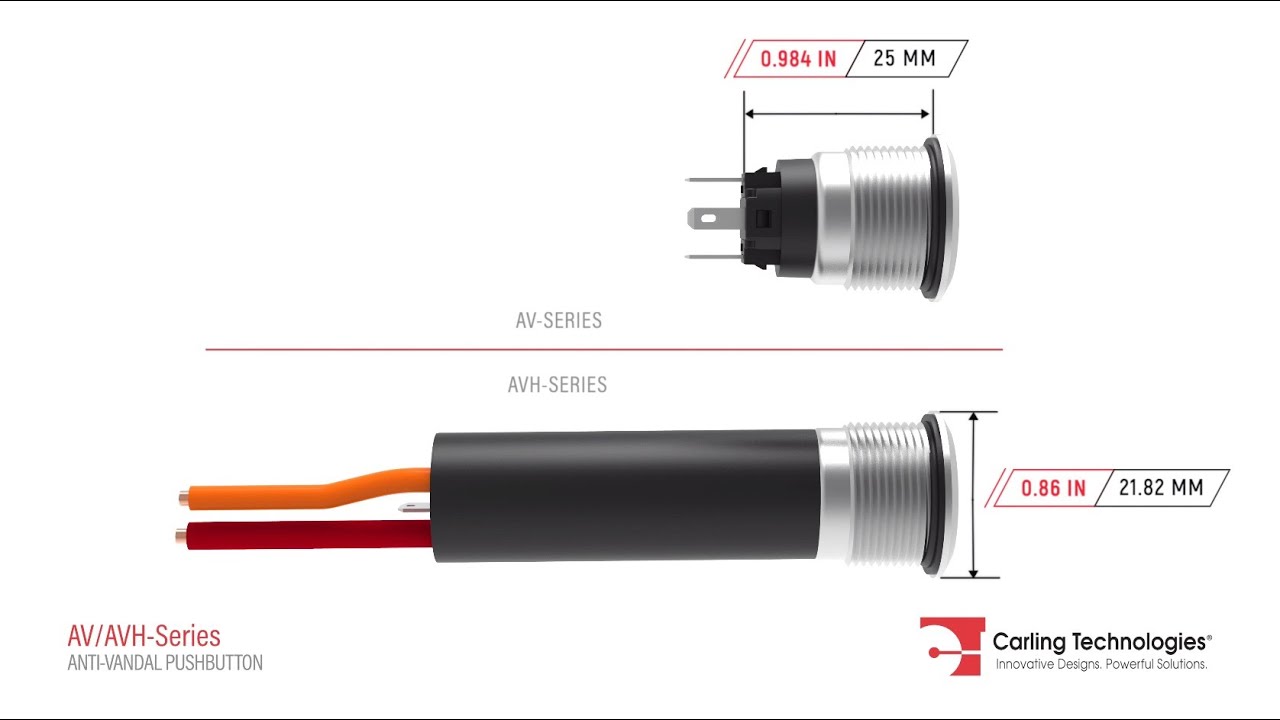

AV/AVH-Series | Anti-Vandal Switches
AV/AVH-Series | Anti-Vandal Switches

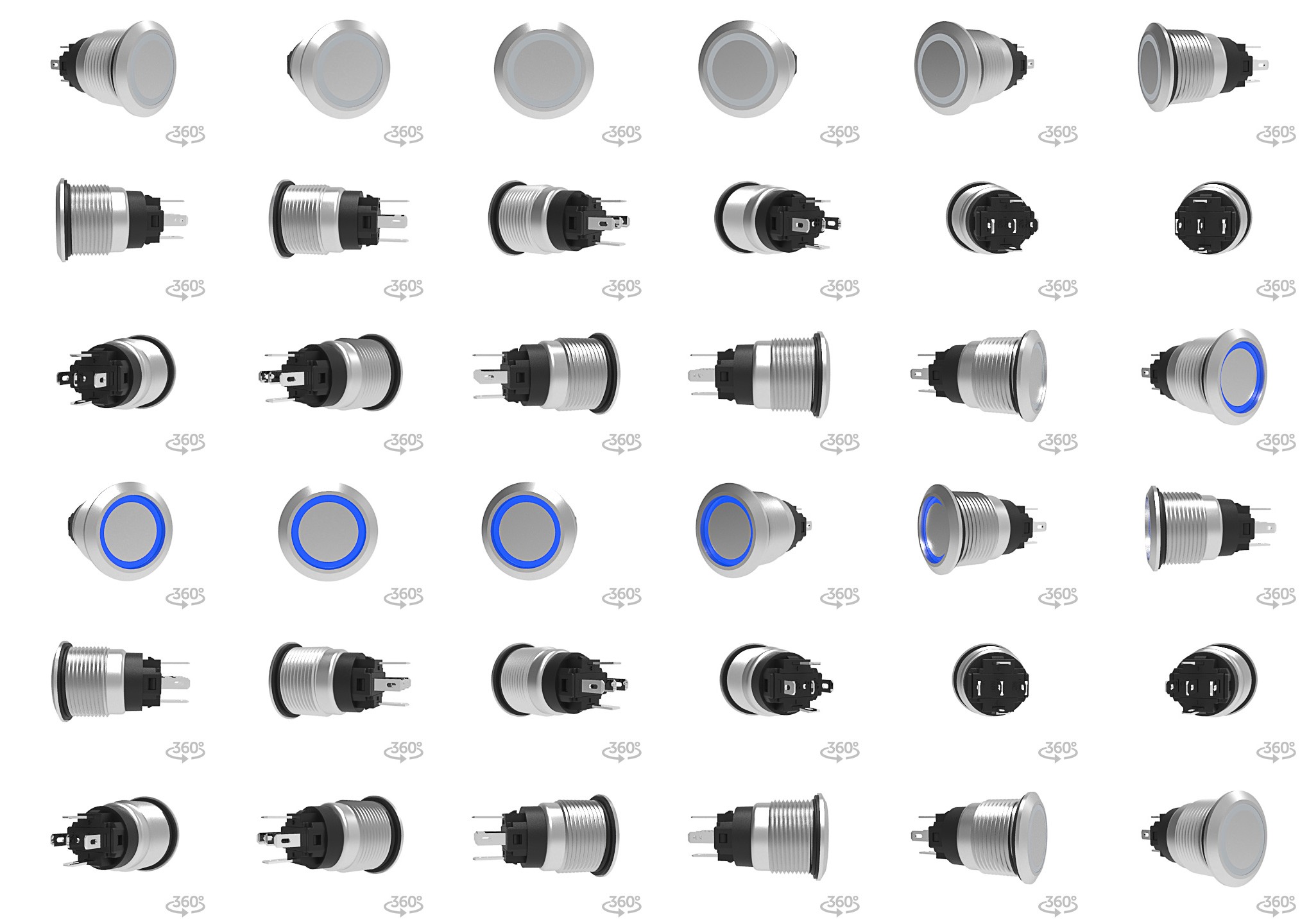

AV-Series Lighted Pushbuttons in Stainless, Black, Red and Gold

Specs

Certifications

Sealing: IP67 for above-panel components

Ignition Protection: UL1500

Number of Poles

1 pole

Ratings

AV: 10.1A Resistive, 12VDC

AVH: 30A 12VDC (Per Output)
20A 12VDC (Per Output)
5A 12VC (Per Output)/ 10A 12VDC (Total)

Circuits

AV: Momentary NC/NO
Maintained NC/NO

AVH: ON-OFF (Output1-None) Maintained
ON-ON-OFF (Output1&2-Output1-None) Momentary
OFF-ON-ON (None-Output1-Output2) Momentary

Base Material

AV: Glass filled Nylon

AVH: Aluminum 6061 T6, Anodized per MIL-STD-8625, Type II, Class 2; Black

Actuator Style

Pushbutton with or without illuminated ring

Actuator Material

Stainless Steel 316 or Aluminum Anodized

Bushing Material

Stainless Steel 316 or Aluminum Anodized

Terminal Options

AV: .110” Quick Connect Tabs - Silver Plated

AVH: 6 inch Wire (152.4 mm) with 0.187” (4.8mm) Ground Tab Terminal

Mounting Method

Bushing Mount

Mounting Hole Dimensions

.748 inches; 19.00 mm

Resources

Switches - Pushbutton

Applications

Marine
Industrial Controls
Security Panels
Public Transit Systems
Traffic Signals
Emergency Phones
Harsh and/or Outdoor Environments
