TLG-Series: Mid-Sized Tippette™

Product Type:

Mid-Sized Rocker Switches

Description:

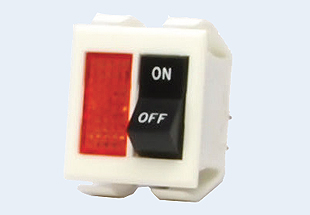

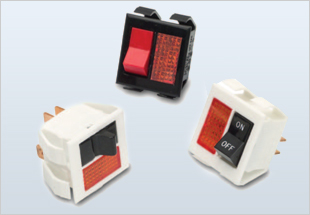

The TLG-Series Mid-Sized Tippette™ rocker switches are single pole snap-in mount switches with an adjacent indicator light. These AC rated switches are also suitable for low voltage DC applications. Options include single or double throw momentary and maintained circuits, as well as a variety of rocker colors, lens colors, lamp voltages, and terminations.

1-pole; 20A 125-250VAC H max rating; UL & CSA approved.

Download Datasheet Request a Quote or Sample Configure a PartBrowse Standard Parts
View Similar Products »

Specs

Certifications

UL CSA

Number of Poles

1 pole

Ratings

5A 250VAC
10A 125VAC
1/2HP 125-250VAC

5A 250VAC
10A 125VAC
5A 125VAC L

10A 250VAC
15A 125VAC

10A 250VAC
15A 125VAC
3/4HP 125-250VAC

10A 250VAC
15A 125VAC
20A 125-250VAC H
3/4HP 125-250VAC

Circuits

On-Off
On-On
On-Off-On

Dielectric Strength

1,000 V RMS (minimum)

Insulation Resistance

100 megohms (minimum)

Base Material

Nylon

Actuator Style

Unlighted and Lighted Angled Rockers
Unlighted and Lighted Paddles
Short Paddle

Actuator Material

Nylon

Bezel Material

Nylon

Terminal Options

Solder Lugs
.250 QC Tabs
.187 QC Tabs
Wire Leads

Mounting Method

Snap-In

Mounting Hole Dimensions

1.00" x 1.125"; 25.40mm x 28.57mm

Value Added

Custom colors and legends available
Dependent and independent
lamps offered
and more

Resources

Applications

Appliance
HVAC
Food Service
Transportation
Medical Equipment
