About this product

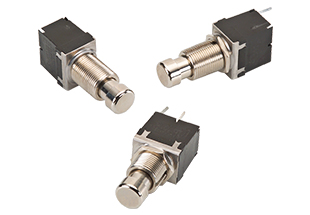

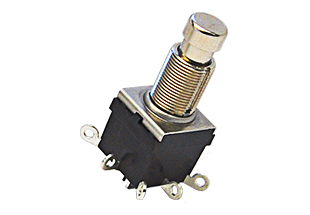

The 641-Series pushbutton switches are single, double or triple pole heavy duty AC rated switches. These switches have a maintained action and are available in single and double throw construction. They utilize a slider contact mechanism. Typical required actuation force is 3 to 3 1/2 pounds. Ideal for foot control applications.
| Certifications |
UL CSA |
| Number of Poles |
1 - 3 poles |
| Ratings |
2A 250VAC |
| Circuits |
On-Off |
| Insulation Resistance |
100 megohms (minimum) |
| Base Material |
Polyester |
| Actuator Style |
Nickel Plated Pushbutton |
| Actuator Material |
Brass/Nickel Plate |
| Bushing Material |
Brass/Nickel Plate |
| Terminal Options |
Solder Lugs |
| Mounting Method |
Bushing Mount |
| Mounting Hole Dimensions |
.500" diameter; 12.70mm diameter |
| Value Added |
Bushing accessories available |
Music Equipment
Test & Measurement Devices
Audi-Visual Equipment
Appliances
Industrial Automation
