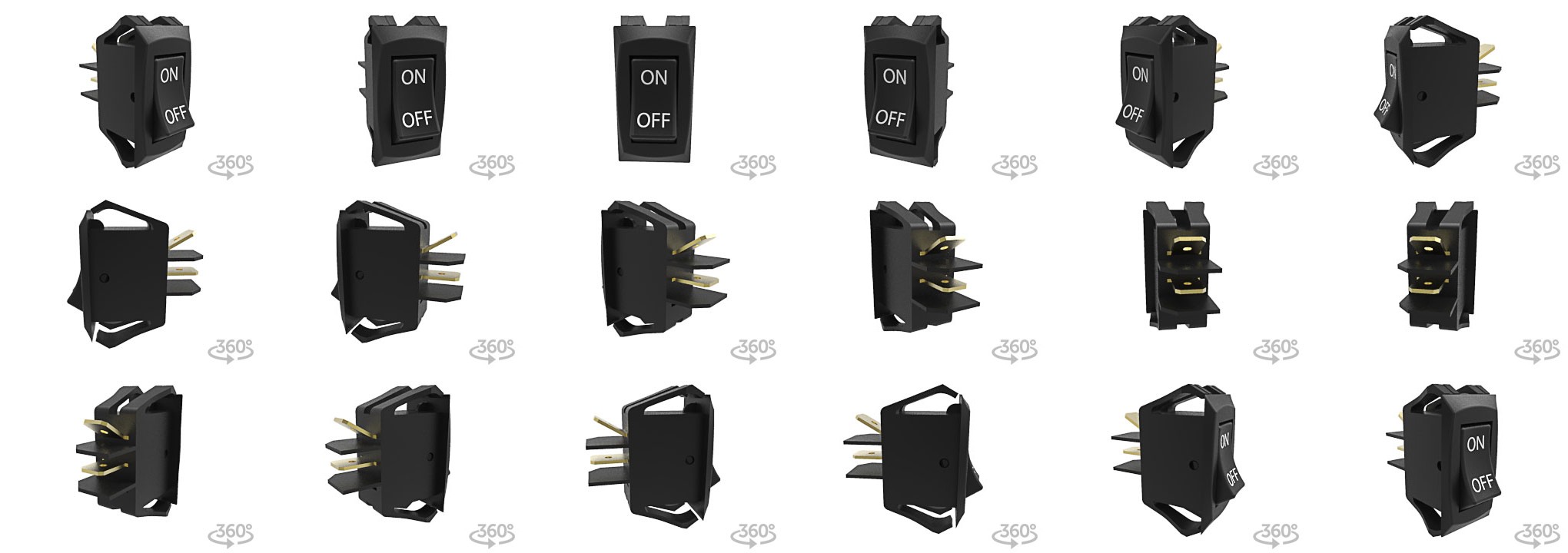

R-Series: Curvette™

Product Type:

Mid-Sized Rocker Switches

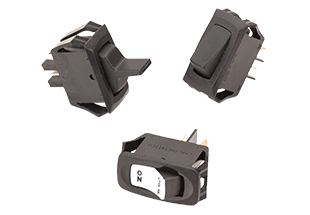

Description:

The R-Series Curvette single pole rocker switches are aesthetically pleasing miniature snap-in switches. Due to the patented mounting ear design, they are compatible with a wide range of standard panel cutouts. Options include a range of momentary and maintained single or double throw circuits, various terminations, and legend options, as well as a variety of rocker colors and styles, including our unique curved two-color molded Visi-Rocker® for low cost "ON" indication.

Since its introduction, the Curvette switch has become the barometer for versatility and performance in the miniature switch market. Self cleaning contacts, International approvals, along with a wide variety of circuits, ratings, and actuator options make the Curvette the switch of choice for many applications.

1-Pole; Max rating of 16A 125 VAC & 10A 250 VAC. UL, CSA & VDE approvals.

View Similar Products »

Specs

Certifications

UL CSA VDE

Number of Poles

1 pole

Ratings

10A 250 VAC
16A 125VAC
3/4HP 125-250VAC

8A 250VAC
12A 125VAC
1/2HP 125-250VAC

5A 277VAC
10A 125VAC
10A 30V
8A 14VT

10A 250VAC
16A 125VAC

10A 250VAC
16A 125VAC
10(4)A 250VACu T85

10A 250VAC
16A 125VAC
10(4)A 250VACu T85

10A 250 VAC
16A 125VAC
3/4HP 125-250VAC
10(4)A 250VACu T85

Circuits

Off-On
On-On
On-Off-On

Dielectric Strength1,000 V RMS (minimum)
Insulation Resistance

100 megohms (minimum)

Base Material

Nylon

Actuator Style

Momentary Rocker

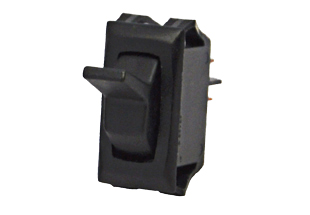

Paddle
Solid Color Curvette Rocker
Two Color Visi-Rocker®

Actuator Material

Phenolic or Nylon

Terminal Options

.250 QC Tabs
Solder Lugs
Wire Leads

Mounting Method

Snap-In

Mounting Hole Dimensions

.480" x 1.072"; 12.19mm x 27.23mm

Value Added

Custom colors and legends available
Additional ratings available
Wire leads with connectors
and more

Resources

Applications

Office Lighting
Appliance
HVAC
On-Highway
Commercial Food
Lawn & Garden
Medical Equipment
