Eco-Friendly

LT-Series

Product Type:

Illuminated Toggle Switches

Description:

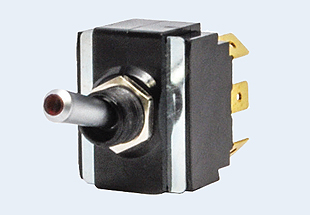

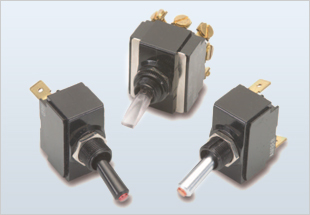

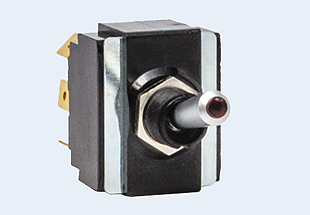

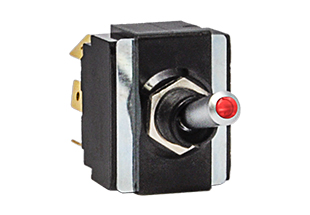

The LT-Series toggle switches are AC rated illuminated toggle switches featuring a three-color lighting sequence from a single lamp. These lighted toggle switches contain neoprene bushing seals for dust and moisture protection. A variety of maintained and momentary single or double throw circuits, terminations, lamp voltages, and color sequences are available. LT-Series switches fit the industry standard .500 diameter mounting hole.

Download Datasheet Request a Quote or Sample Configure a PartBrowse Standard Parts
View Similar Products »
  • LT-Series Illuminated Toggle Switches
LT-Series Illuminated Toggle Switches

Specs

Number of Poles

1 & 2 pole

Ratings

10A 250VAC
15A 125VAC
3/4HP 125-250VAC

Circuits

On-Off
On-(Off)
(On)-Off
On-On
On-(On)
On-Off-On
On-Off-(On)
(On)-Off-(On)

Dielectric Strength

1,000 V RMS (minimum)

Insulation Resistance

100 megohms (minimum)

Base Material

Phenolic

Actuator Style

Bat Toggle
Translucent Paddle
Clear Paddle

Actuator Material

Polycarbonate

Terminal Options

.250 QC Tabs
.187 QC Tabs
Solder Lugs
Wire Leads
Screw Terminals
PC Terminals

Mounting Method

Bushing Mount

Mounting Hole Dimensions

.500" diameter; 12.70mm diameter

Value Added

Dependent and independent lamps offered
SnapKap Toggle Lenses available separately
and more
