About this product

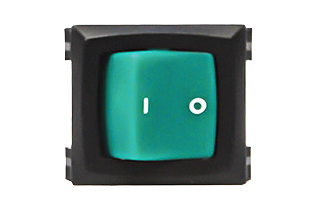

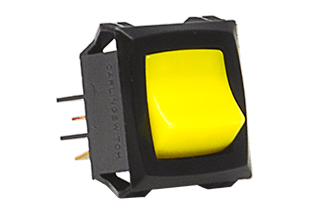

The LRG-Series Super Curvette™ illuminated rocker switches offer double pole, single throw maintained circuit with 20 amp electrical ratings and high inrush capabilities. These switches can handle up to 125 amp peak inrush current. Due to the patented mounting ear design, they are compatible with a wide range of standard panel cutouts. They come in a variety of rocker styles and colors, lamp voltages, terminations, and legend options.
| Certifications |
UL CSA |
| Number of Poles |
2 pole |
| Circuits |
Off-On |
| Insulation Resistance |
100 megohms (minimum) |
| Base Material |
Nylon |
| Actuator Style |
Translucent Rocker |
| Actuator Material |
Nylon/Polycarbonate |
| Terminal Options |
.250 QC Tabs |
| Mounting Method |
Snap-In |
| Mounting Hole Dimensions |
.866" x 1.182"; 22mm x 30mm |
| Value Added |
Custom colors and legends available |
Power Supply
Appliance
Exercise Equipment
Music Equipment
Medical Equipment
