VM-Series

Product Type:

Multiplexed Operator Control Module

Description:

The VM-Series is a multiplexed operator control module ideal for the Construction, Agriculture and Commercial vehicles. Rugged and sealed to IP68, these multiplex switches can be used in open or closed cab environments and connect to industry standard SAE J1939 CAN Bus protocol.

Multiplex switches reduce the complexity and cost of traditional wire harnesses, increase product life and reliability, and improve assembly efficiencies.

The VM-Series was developed in conjunction with the globally successful Carling Contura® family of switches, providing the look and feel of our traditional rocker switches, but offering the benefits of a multiplexed product. It is available in either a 3 pod or 6 pod configuration.

Download Datasheet Request a Quote or Sample Configure a PartBrowse Standard Parts
View Similar Products »
  • VM-Series 6 Pod Operator Control Module; multiplex switches that connect to J1939 CAN bus protocol.
  • VM-Series 3 Pod Operator Control Module; multiplex switches that connect to J1939 CAN bus protocol.

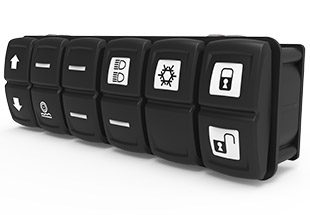

VM-Series 6 Pod Operator Control Module with multiplex switches that connect to J1939 CAN bus protocol.
VM-Series 6 Pod Operator Control Module; multiplex switches that connect to J1939 CAN bus protocol.

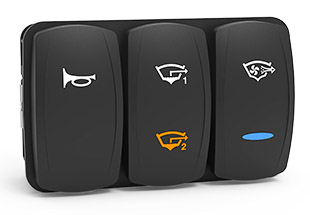

VM-Series 3 Pod Operator Control Module; multiplex switches that connect to J1939 CAN bus protocol.

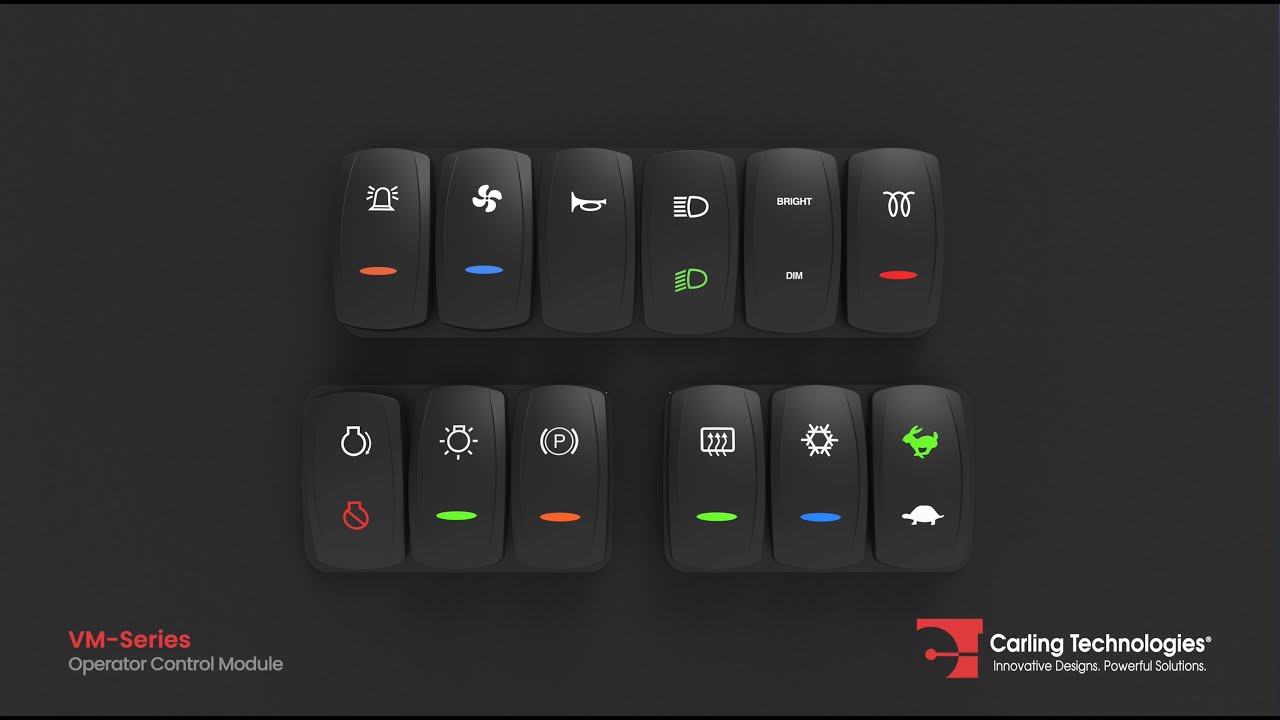

Watch Product Video

Specs

Operating Voltage

12VDC or 24VDC

Communication

Master: CAB 2.0b (SAE J1939)

Electrical Endurance

Minimum 250K Operations
(50K cycles at Tmin, 150K cycles at Tnom, 50K cycles at Tmax)

Illumination

Single color LED
Red, Green, Amber, Blue, White Illumination Table (for each switch position)

Dimming

LED dimming controlled by the ECU through CAN bus

Connection

Deutsch DT-Series 4 and 6 pin

Operating Temperature

-40°C to +85°C

Thermal Cycling

IEC 60068-2-14 Test Nb, -40°C to 85°C,
2 cycles of 8 hours each

Shock

IEC 60068-2-27, 3 shocks in each direction of the three axes (18 total shocks) at 500m/s2 for 11 ms

Bump

IEC 60068-2-27, 100 shocks in each direction of the three axes (600 total shocks) at 400m/s2 for 6ms

Vibration, General

IEC 60068-2-6, swept sine wave from 5-500 Hz
+/-15 mm amplitude, 5g, 20 cycles in each plane

Chemical Resistance

ISO 16750-5 Method II for Engine oil, hydraulic oil, diesel fuel, grease and urea at Tmax

Sealing Protection

IP68 front and back panel (when connected)

EMC

Transient Emission: ISO 13766 Annex D and E, 30MHz-1GHz

Conducted Transients:

VM3:
Applied level IV according to ISO 7367, Annex A, and ISO 16750-2, sections 4.6.3 & 4.6.4

VM6:
ISO 7637-2:2004, Annex A Table A2 (for 24V systems), Level 3 minimum

Resources

Switches - Digital Switching

Applications

On/Off Highway
Construction
Agriculture
Commercial Vehicles

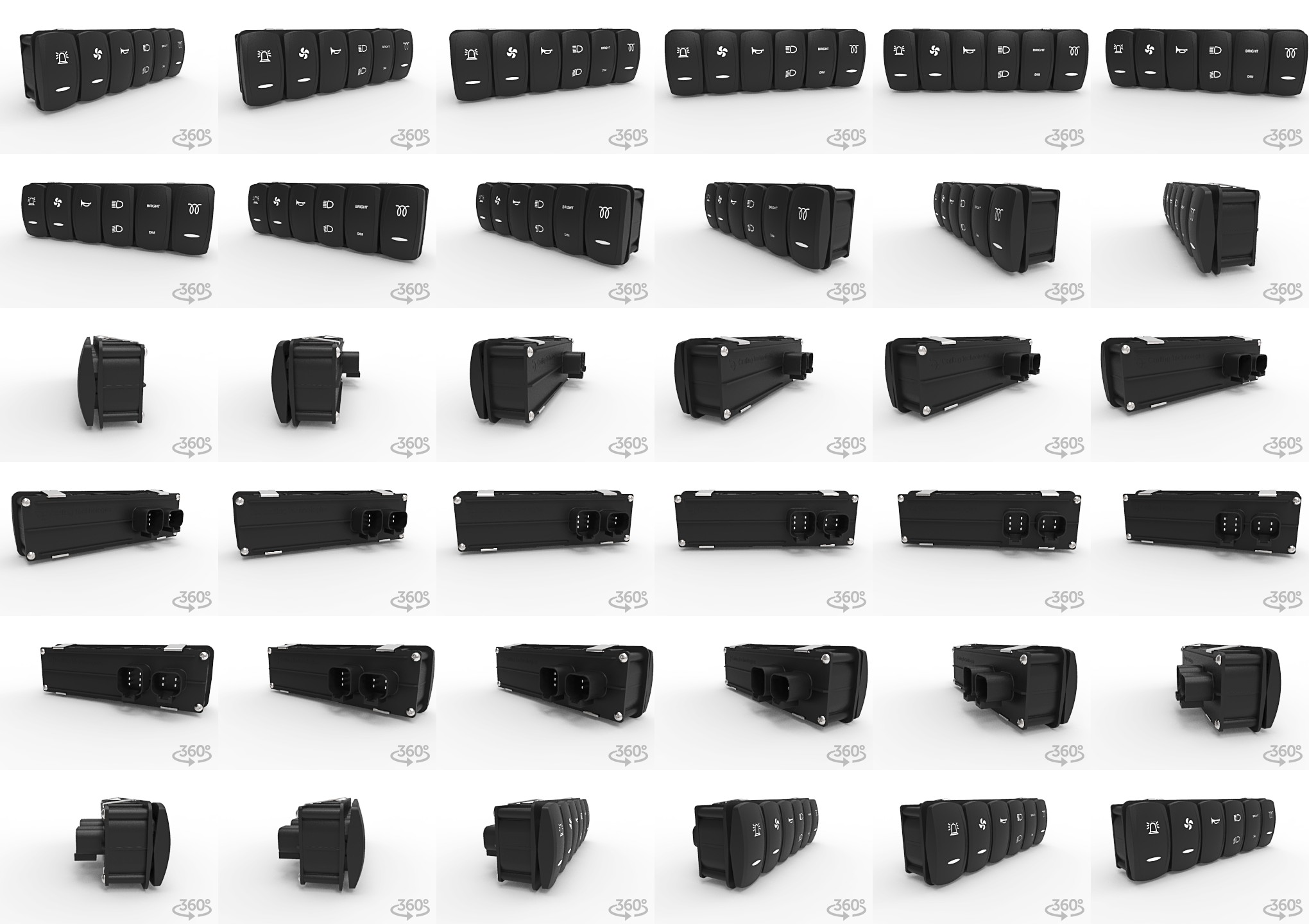

3D Files
