CKP-Series

Product Type:

CAN Keypad

Description:

Compliant with SAE J1939 CAN standards, the CKP-Series is a customizable keypad featuring laser etched legends and up to three dimmable LED function lights per button, which also offer diagnostic feedback by blinking if there is a fault.

Sealed to an IP6K9K above panel and IP6k8 below panel, these customizable keypads can be installed inside or outside the cab making it ideal for any on/off-highway application. Its low profile design affords a seamless dashboard look and can be mounted either vertically or horizontally. Keypads are available in 2x2, 2x3, 2x4, 2x5 and 2x6 configurations.

The CKP-Series CAN keypad offers significant advantages over traditional electromechanical switches such as 1,000,000 actuation cycles, reduced wire harnessing, and easy installation.

Download Datasheet Request a Quote or Sample Configure a PartBrowse Standard Parts
View Similar Products »

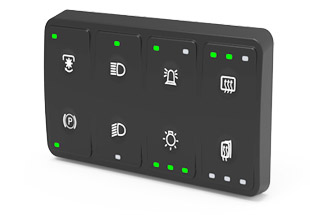

  • CKP-Series 2x4 CAN Bus Keypad. A fully customizable keypad with laser etched legends and up 3 LED function lights per button.

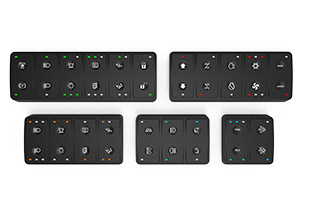

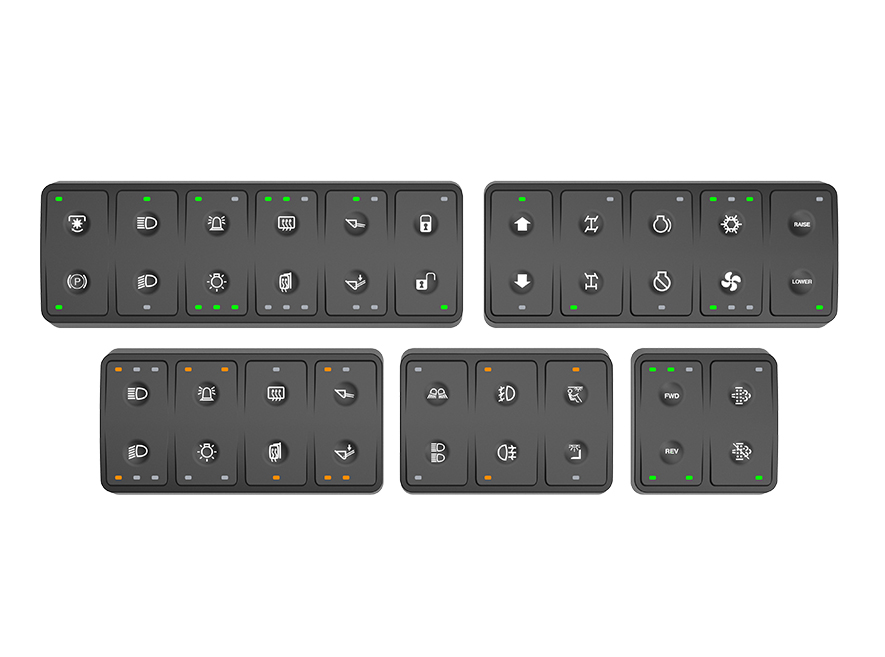

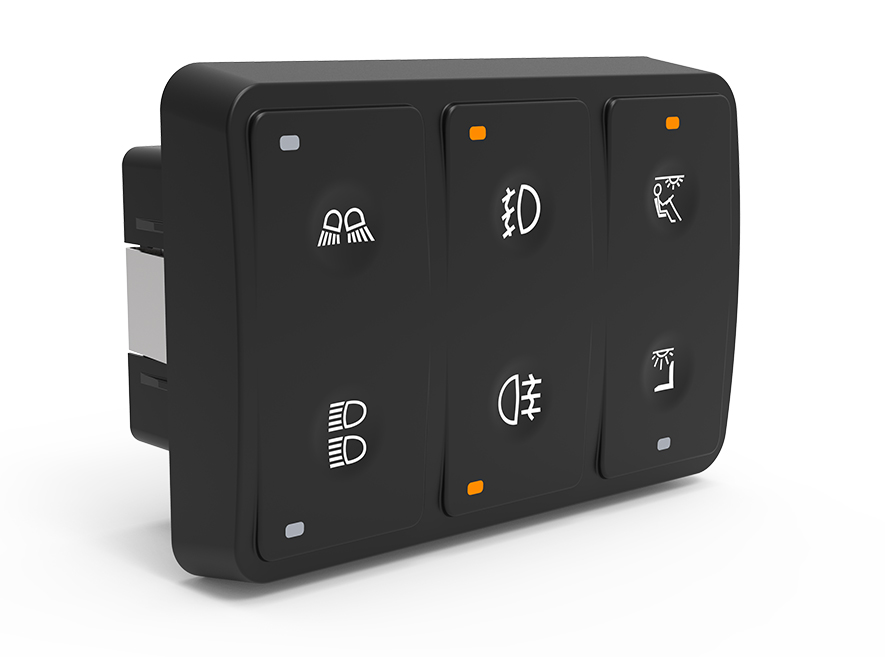

  • CKP-Series CAN bus keypad in all size options: 2x6; 2x5, 2x4, 2x3 and 2x2. Each CAN keypad is a fully customizable keypad.

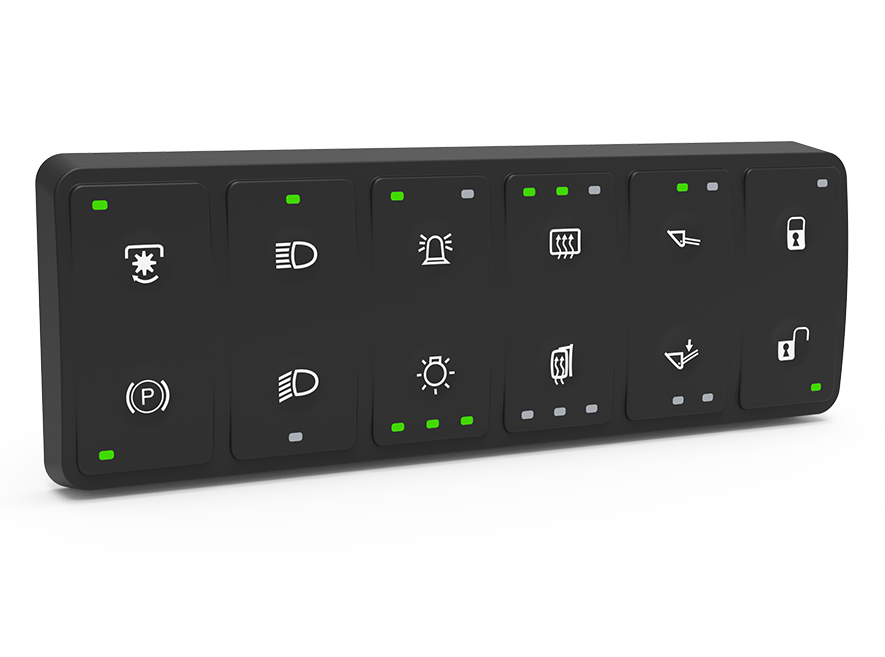

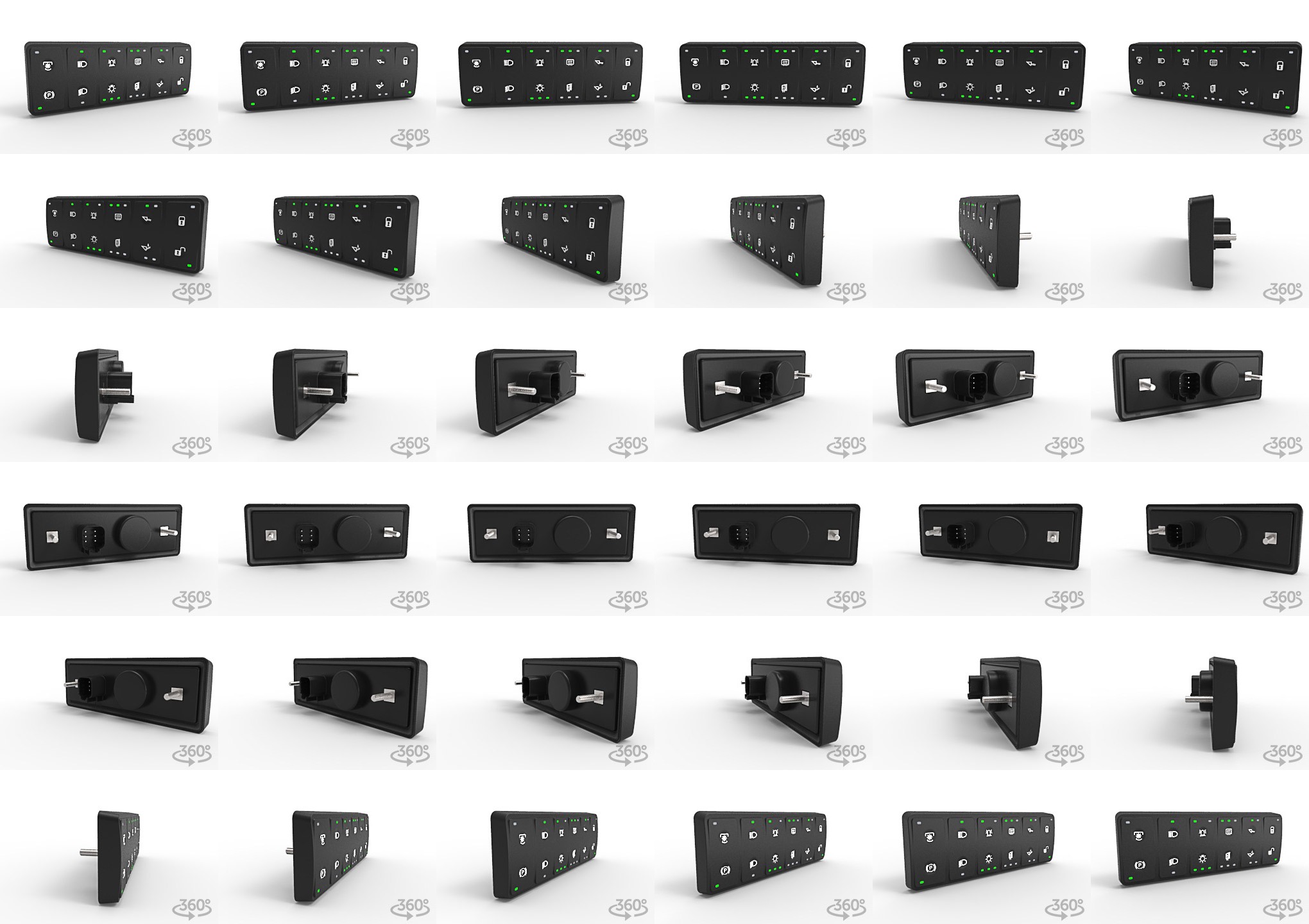

CKP-Series 2x6 CAN Bus Keypad. A fully customizable keypad with laser etched legends and up 3 LED function lights per button.
CKP-Series 2x4 CAN Bus Keypad. A fully customizable keypad with laser etched legends and up 3 LED function lights per button.
CKP-Series CAN bus keypad in all size options: 2x6; 2x5, 2x4, 2x3 and 2x2. Each CAN keypad is a fully customizable keypad.
Watch Product Video

Specs

Operating Voltage

Designed for 12/24 Volt systems
Minimum 8 VDC
Maximum 32VDC

EMC

Transient immunity: ISO 11452-2, 100 V/m, 20 MHz to 2,000 MHz, Class A per ISO 11451-1

Conducted Transient immunity: ISO 7637-2:2004, Annex A Table A2 (for 24V systems), Class A

ESD immunity: ISO 10605:2001, Test level Iv (8 kV direct discharge, 15 kV air discharge)

Transient Emmission: ISO 13766, Broadband: Annex D, Narrow band: Annex E, 30-1000 MHz

Endurance

Each button functions for at least 1,000,000 total actuations

Software

CAN Protocol: CAN 2.0b type interface as defined by SAE J1939

Connector

Mates to the Deutsch DT-Series Connector

Mounting

10-32 Mounting Studs (2x)

Mounting Wings

Sealing Protection

Fully sealed IP6K9K for above panel components

Fully sealed IP6K8 for below panel components

Thermal

-40 degrees C to +85 degrees C

Solar Radiation

IEC 60068-2-5, procedure B, 10 cycles, Total irradiation per cycle = 22.4 kWh/m

Shock and Bump

IEC 60068-2-27, Shock 500 m/s² 11 milliseconds, Bump 400 m/s² 6 milliseconds 600 cycles

Vibration

IEC 60068-2-6, Swept sine wave section 8.2, 5 - 500 Hz 20 cycles 5g acceleration

IEC 60068-2-6, Vibration sinusoidal, section 8.1, 10 - 2000 Hz 5g acceleration

Chemical Resistance

IEC 60068-2-74, Class B, Engine oil, Diesel, Hydraulic oil, Ethylene Glycol, Urea Notrogen, Liquid Lime, NPK Fertiliser, Ammonia, Calcium Chloride, Brake fluid

Corrosion Resistance

IEC 60068-2-52, Test Kb, Severity level 4

Weathering/Cracking Resistance

ASTM D1171-99, method A,72 hours
