UKP-Series

Product Type:

Customizable J1939 CAN Membrane Keypad

Description:

The UKP-Series is a universal, customizable membrane keypad for 12V/24V systems that is compliant with SAE J1939 CAN standards. With above and below sealing protection to an IP67 rating, the UKP-Series can be installed inside or outside the cab. Each button features a laser-etched legend, up to three dimmable LED function lights, and tactile/audible feedback when pressed.

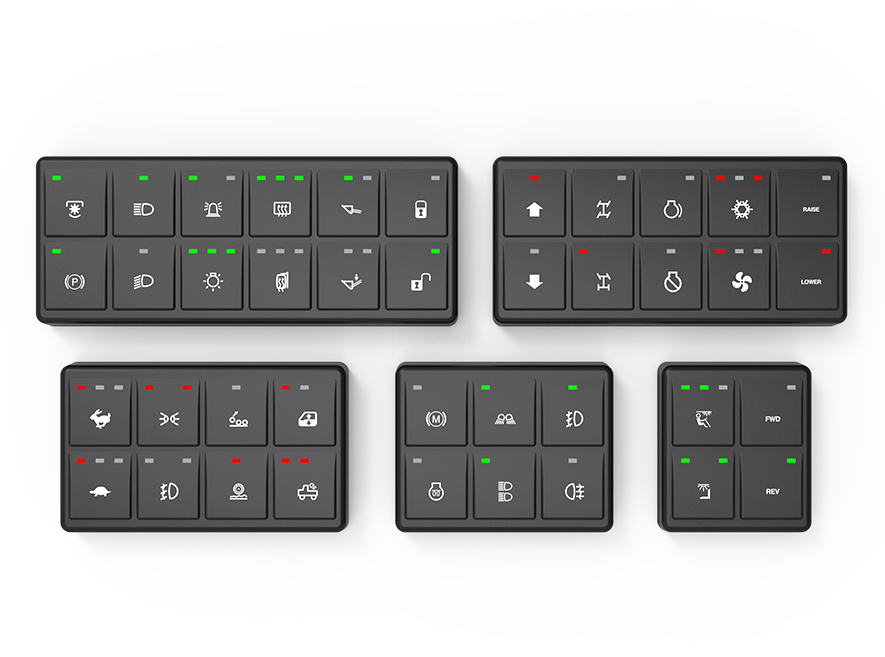

The configurable vehicle keypad has a low-profile design and is available in a wide variety of button layout configurations.

View Similar Products »
  • UKP-Series Customizable J1939 CAN Keypad
  • UKP-Series Customizable J1939 CAN Keypad

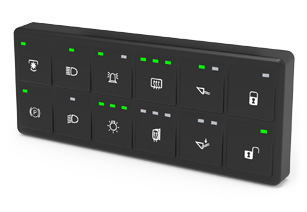

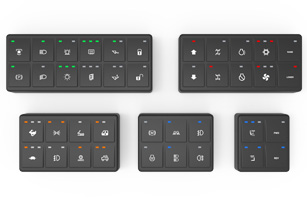

UKP-Series Customizable J1939 CAN Keypad
UKP-Series Customizable J1939 CAN Keypad
UKP-Series Customizable J1939 CAN Keypad

Specs

Operating VoltageDesigned for 12/24 Volt systems. Minimum 8VDC Maximum 32VDC
Endurance1,000,000 cycles per key (20% at -40°C, 20% at +85°C, 60% at +25°C)
SoftwareCAN 2.0b type interface as defined by SAE J1939
IlluminationLED backlit icons and function lights. Up to 3 function lights per button. Dimmable illumination, controlled by CAN messages
ConnectorMates to the Deutsch DT-Series 4 Pin connector
MountingClips or studs, Vertically or horizontally
Sealing ProtectionIP67, for above panel components of actual switch only
Shock and BumpIEC 60068-2-27, Shock 500 m/s² 11 milliseconds. IEC 60068-2-29, Bump 400 m/s² 6 milliseconds 600 cycles
VibrationResonance Vibration: IEC 60068-2-6, 20Hz~500Hz per axis with amplitude of 19.6m/s2. Apply 90m/s2 at resonance point for 1h at Z axis and 0.5h at X/Y axis. Sinusoidal Vibration: IEC 60068-2-6, 5Hz~200Hz with amplitude 100m/s2 for 4h at Z axis and 2h at X/Y axis. Random vibration: IEC 60068-2-64, 10~2000Hz. Acceleration 5.825Grms, 8h per axial
Additional specificationsView data sheet for complete specifications

Resources

Applications

Truck
Bus
Construction
Mining
Agricultural
