W-Series

Product Type:

Sealed Rocker Switches

Description:

The W-Series features complete IP68 protection, even below the panel, where the critical connection is made from your wiring harness. When used in conjunction with the integrated connector, the totally submersible W-Series provides a seal for up to ten individual wires, assuring compatibility with even the most complex circuitry.

The W-Series also offers a wide variety of illumination options featuring dual level and multicolor LEDs, progressive and hazard warning circuits, ratings up to 10A 24V, choice of paddle, rocker, locking or laser etched actuators, hundreds of standard legend choices and the electrical performance and reliability that is the hallmark of Carling Technologies products.

View Similar Products »

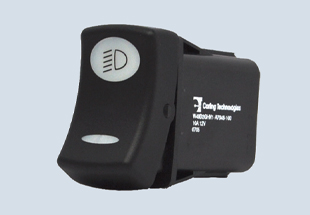

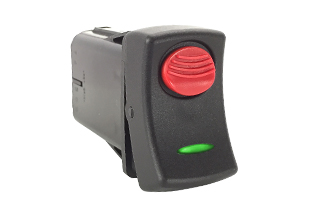

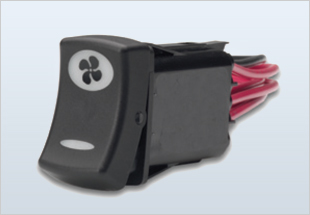

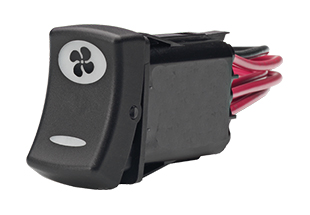

W-Series Fully Sealed (IP68) Above and Below Panel Rocker Switch with Oval and Bar Lenses and Integrated Connector.

Specs

Number of Poles

1-2 poles

Ratings

10A 24V

10A 12V

10A 6V

10A 3V

Circuits

On-Off
(On)-Off
On-(Off)
On-On
On-(On)
On-Off-On
On-Off-(On)
(On)-Off-(On)
On-On-On

Dielectric Strength

1500V RMS opposite polarity

Insulation Resistance

50 megohms (minimum)



Base Material

Nylon

Actuator Style

Smooth curved rocker, with oval or bar lens styles for illuminated versions

Actuator Material

Underlay/lens – Polycarbonate
Hard overlay – Nylon

Terminal Options

.110 QC Tabs

Mounting Method

Snap-In

Mounting Hole Dimensions

.83” x 1.45”; 21.08mm x 36..83mm

Value Added

Custom colors and legends available
Special circuits
Mounting panels
Optional lock-on terminal connector
Hole plug
and more

Resources

Applications

Marine Equipment
Transportation Equipment

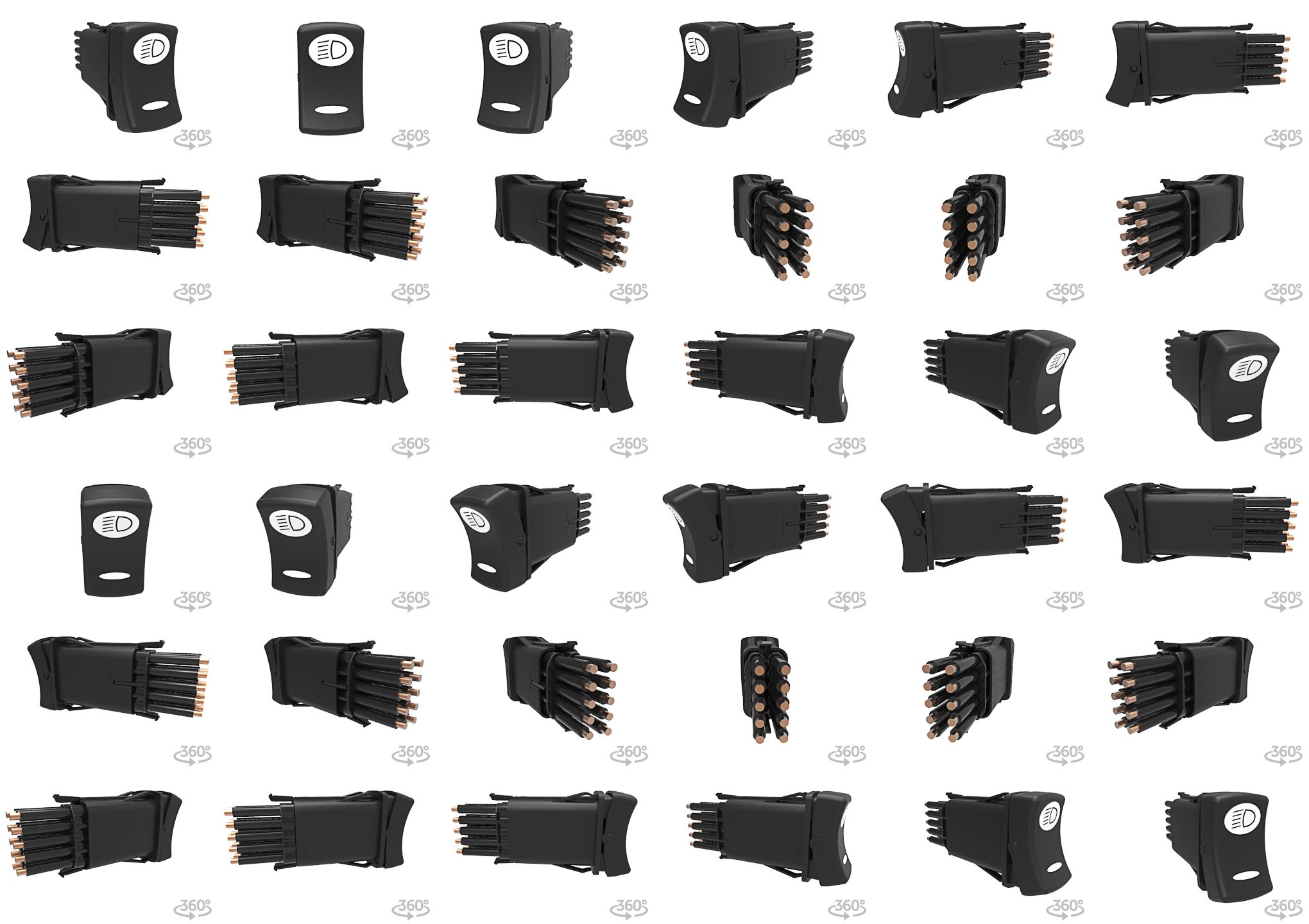

3D Files
