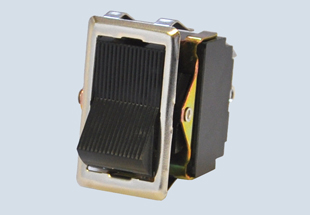

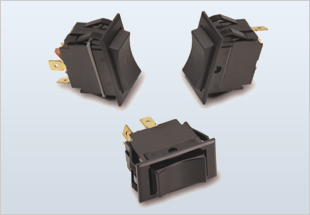

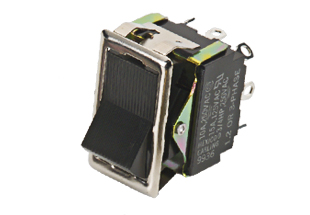

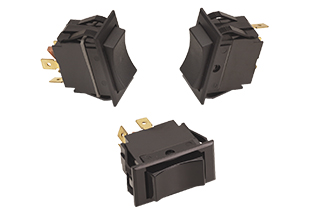

TIL,TIG, TIH, TII-Series: Tippette

Product Type:

Full-Sized Rocker Switches

Description:

The TI-Series Tippette rocker switches are available in single pole (TIL), double pole (TIG), three pole (TIH), and four pole (TII) versions. The Tippette Series is a traditionally styled rocker switch, available in sealed or unsealed versions. These switches are appropriate for use in general purpose applications which may or may not require environmental protection. These switches are available with nylon snap-in or screw type mounting brackets. They are AC rated switches but are also suitable for low voltage DC applications. They are offered in a wide range of single or double throw momentary and maintained circuits, and come in a variety of rocker styles and colors. This versatile offering includes international agency certifications and ratings to 26 amps for select circuits.

Single, double, triple and 4 pole; 20 amps 125-277Volts AC & 10 amps 250Volts AC max rating; UL CSA VDE (for select circuits) approved

View Similar Products »

Specs

Certifications

UL CSA VDE (for select circuits)

Number of Poles

1, 2, 3, & 4 poles

Ratings

10A 25OVAC
15A 125VAC
3/4HP 125-250VAC

20A 125-277VAC
1 1/2HP 125VAC
2HP 250VAC

3A 250VAC
6A 125VAC
1/4HP 125-250VAC

10A 250VAC
15A 125VAC
12(6)A 250VAC T85

Circuits

On-Off
(On)-Off
On-(Off)
On-On
On-(On)
On-Off-On
On-Off-(On)
(On)-Off-(On)

Dielectric Strength

1,000 V RMS (minimum)

Insulation Resistance

100 megohms (minimum)

Base Material

Phenolic

Actuator Style

Cross Serrated Rocker
Smooth Rocker with Flatted Center Long Lined Rocker
Smooth Angled Rocker
Long Narrow Smooth Rocker
Curved Matte Rocker
Curved Smooth Rocker
Witches Hat Paddle
Narrow Witches Hat Paddle
Toggle

Actuator Material

Nylon

Bezel Material

Nylon or Steel

Terminal Options

Solder Lugs
.250 QC Tabs
.187 QC Tabs
Screw Terminals
Wire Leads
PC Terminals

Mounting Method

Snap-In or Screw Mount

Mounting Hole Dimensions

.830" x 1.450"; 21.08mm x 36.83mm

Value Added

Custom colors and legends available
Wire leads with connectors
Watershedding features
Special Circuits (including two circuit and progressive circuits)
Special contact plating
and more

Resources

Applications

General purpose applications

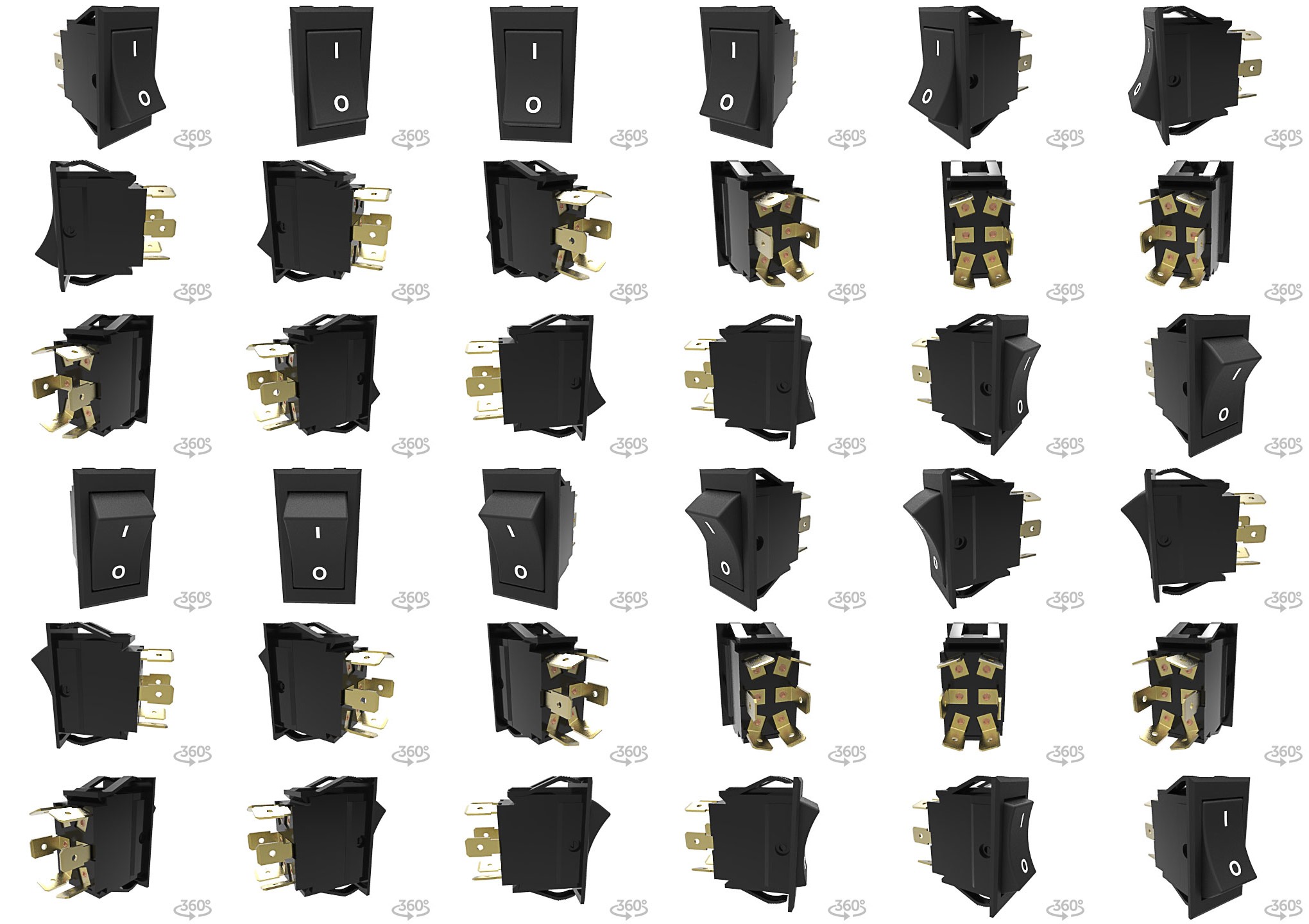

3D Files
