LTIH-Series: Tippette™

Product Type:

Full-Sized Rocker Switches

Description:

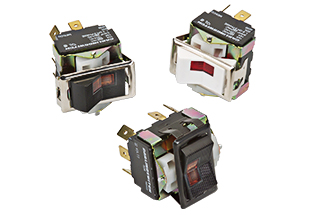

The LTIH-Series are triple pole illuminated rocker switches available with steel snap-in or screw type mounting brackets. These switches are offered in a wide range of single or double throw momentary and maintained circuits, as well as a variety of rocker colors and styles, lens colors, lamp voltages, and terminations.

Three pole; 10 amps 250Volts AC & 15 amps 125Volts AC max rating; UL & CSA approved

Download Datasheet Request a Quote or Sample Configure a PartBrowse Standard Parts
View Similar Products »

Specs

Certifications

UL CSA

Number of Poles

3 pole

Ratings

10A 250VAC
15A 125VAC
1/2HP 125-250VAC
1,2 or 3 Phase

3A 250VAC
6A 125VAC
1/4HP 125-250VAC

Circuits

On-Off
On-(Off)
(On)-Off
On-On
On-(On)
On-Off-On
On-Off-(On)
(On)-Off-(On)

Dielectric Strength

1,000 V RMS (minimum)

Insulation Resistance

100 megohms (minimum)

Base Material

Phenolic

Actuator Style

Cross Serrated Rocker
Long Lined Rocker
Smooth Angled Rocker

Actuator Material

Nylon

Bezel Material

Metal

Terminal Options

Solder Lugs
.250 QC Tabs
.187 QC Tabs
Screw Terminals
Wire Leads
PC Terminals

Mounting Method

Snap-In or Screw Mount

Mounting Hole Dimensions

.830" x 1.450"; 21.08mm x 36.83mm

Value Added

Custom colors and legends available
Wire leads with connectors
Special contact plating
and more

Resources

Applications

General purpose applications requiring illumination
