V-Series Contura® XIV

Product Type:

Sealed Rocker Switches

Description:

Certified to IP66/68, the V-Series Contura XIV rocker switches offer complete above-panel protection against dust, prolonged spray and submersion under pressure and are recognized to UL 1500 Ignition Protection for Marine products. These switches are vibration, shock, thermoshock, moisture and salt spray resistant with operating temperature ranging from -40°C to 85°C.

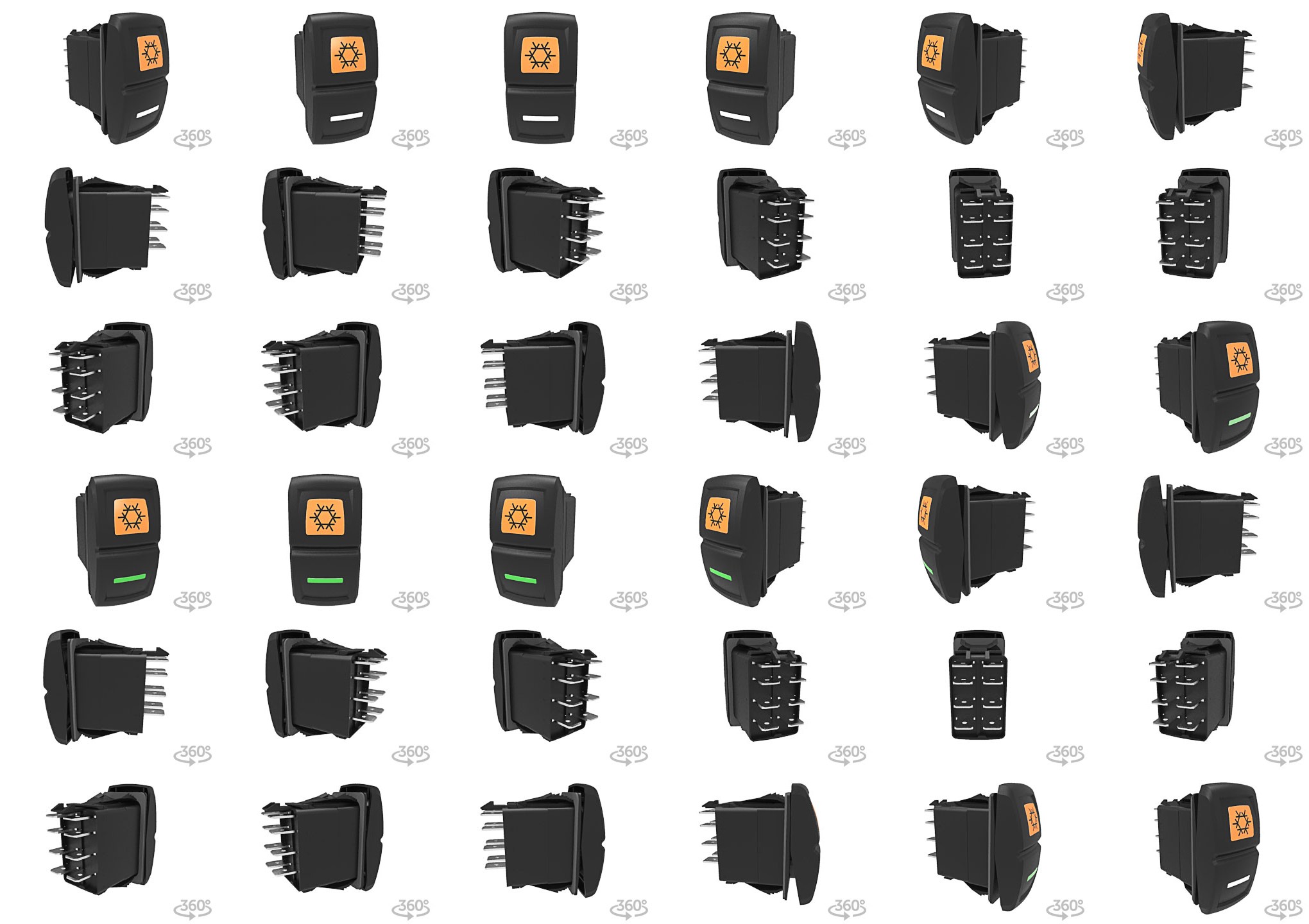

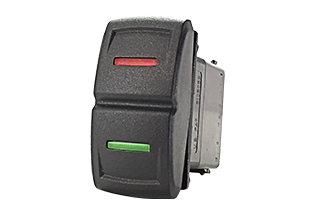

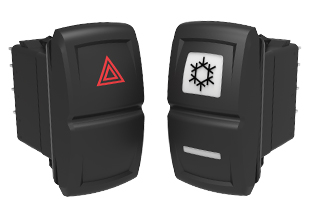

Contura XIV features square and bar lens options. Actuators have recessed ridges and center groove which define the boundary between the top and bottom switch functions. Laser etched options are available for the Contura XIV. Actuators have flush style bracket. The sleek crossover design is optimum for commercial trucks, buses, heavy equipment vehicles and the marine industry.

View Similar Products »
  • V-Series Contura XIV Sealed Rocker Switches; Non-Illuminated with Laser Etched Legend and Illuminated with Square & Bar lenses.
  • V-Series Contura IV, V & VII Snap-In, Sealed Rocker Switch with Bar Lenses and multi-color illumination.
V-Series Contura XIV Snap-In, Sealed Rocker Switch with an Eight Terminal Base and Square and Bar Lens Illumination.
V-Series Contura XIV Sealed Rocker Switches; Non-Illuminated with Laser Etched Legend and Illuminated with Square & Bar lenses.
V-Series Contura IV, V & VII Snap-In, Sealed Rocker Switch with Bar Lenses and multi-color illumination.

Specs

Certifications

UL CSA

Number of Poles

1-2 Poles

Ratings

10A 250VAC
15A 125VAC
1/2 HP

15A 24V

20A 18V

20A 12V

20A 6V

20A 3V

Circuits

On-Off
(On)-Off
On-(Off)
On-On
On-(On)
On-Off-On
On-Off-(On)
(On)-Off-(On)

Variety of Special Circuits available

Dielectric Strength

1500 Volts RMS

Insulation Resistance

50 megohms (minimum)

Base Material

Polyester

Actuator Style

Convex rectangle with center-located dividing groove

Illuminated convex rectangle with center-located dividing groove, with bar and/or square lenses

Actuator Material

Underlay/lens - Polycarbonate
Shell - ABS

Bracket/Bezel Material

Nylon

Terminal Options

.250 QC Tabs

Mounting Method

Snap-in

Mounting Hole Dimensions

.83" x 1.45"; 21.08mm x 36.83mm

Value Added

Custom colors and legends available
Special Circuit
Hazard warning circuits
Mounting Panels
Optional lock-on terminal connector
Hole Plug
Actuator removal tool

Applications

On/Off-Highway
Marine
Armored Vehicles
Industrial Automation
Commercial Food
Medical Equipment
Any application requiring environmental protection
