610/620-Series

Product Type:

Small-sized Rocker Switches

Description:

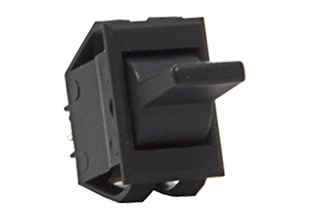

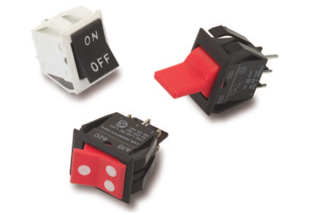

The 610/620-Series rocker switches are single or double pole. These snap-in mounted switches are offered in a range of double throw momentary and maintained circuits with either paddle or rocker style actuators. They come in a variety colors with several legend options and are available with PC terminals or solder lugs.

1-2 Poles; 4A 250VAC; 8A 125 VAC; UL & CSA

Download Datasheet Request a Quote or Sample Configure a PartBrowse Standard Parts
View Similar Products »

Specs

Certifications

UL CSA

Number of Poles

1 & 2 pole

Ratings

.4VA MAX@20V
MAX (AC/DC)

2A 250VACM
5A 125VAC
RESISTIVE

4A 250VAC
8A 125VAC

Circuits

On-On
On-(On)
On-Off-On
(On)-Off-(On)
On-Off-(On)

Dielectric Strength

1,000 V RMS (minimum)

Insulation Resistance

100 megohms (minimum)

Base Material

Nylon

Actuator Style

Solid Color Angled Rocker
Solid Color Paddle

Actuator MaterialNylon
Terminal OptionsSolder Lugs PC Terminals
Mounting MethodSnap-In
Mounting Hole Dimensions .515" x .625"; 13.08mm x 15.87mm
Value Added

Custom colors and legends available
Epoxy Sealed terminals available
and more

Resources

Applications

Handheld Appliance
Audio-Visual
Power Supplies
Computers
Medical Equipment

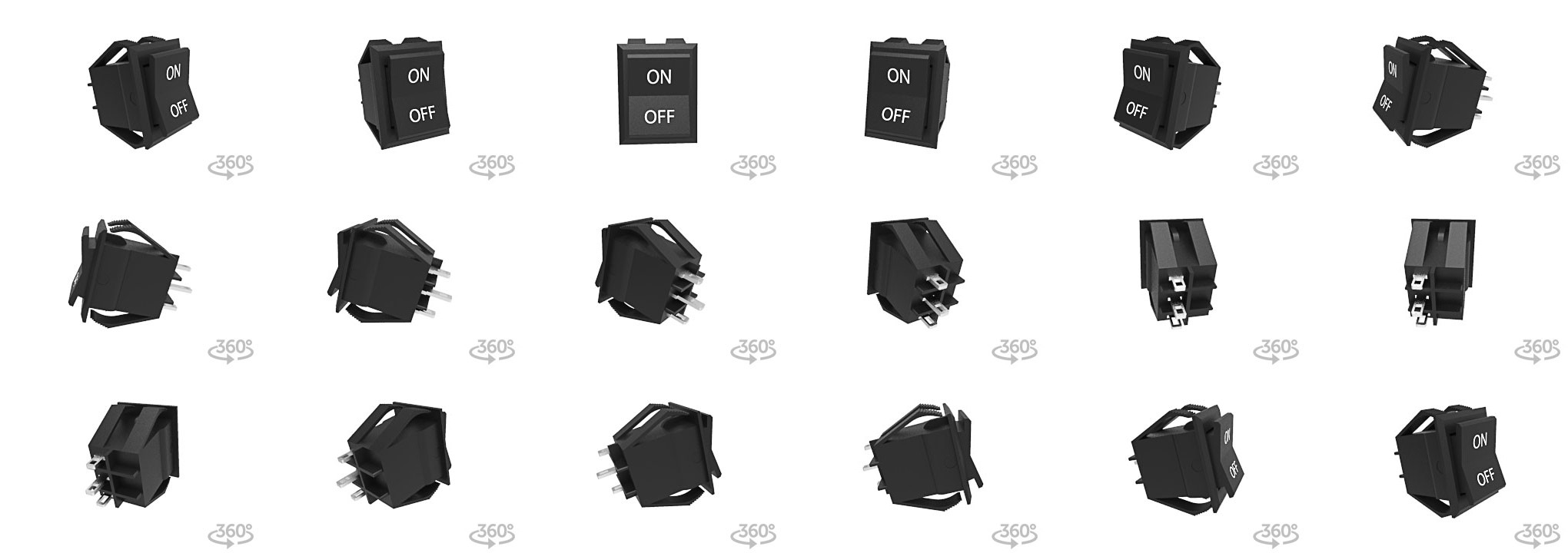

3D Files
