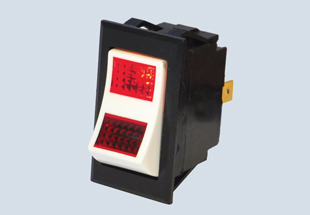

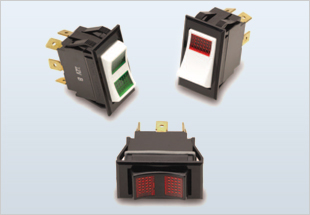

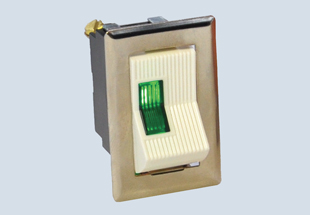

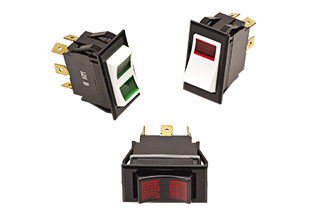

LTIL-Series: Tippette™

Product Type:

Full-Sized Rocker Switches

Description:

The LTIL-Series are single pole lighted rocker switches available with nylon snap-in or screw type mounting brackets. These switches are AC rated and also suitable for low voltage DC applications. Options include a wide range of single or double throw momentary and maintained circuits, as well as a variety of rocker colors and styles, lens colors, lamp voltages, and terminations. The Tippette™ Series is a traditionally styled rocker switch, available in sealed or unsealed versions. These switches are appropriate for use in general purpose applications, which may or may not require environmental protection.

Single pole; 12 amp 250Volts AC and 17 amp 125Volts AC max ratings; UL and CSA certified.

Download Datasheet Request a Quote or Sample Configure a PartBrowse Standard Parts
View Similar Products »

Specs

Certifications

UL CSA

Number of Poles

1 pole

Ratings

10A 250VAC
15A 125VAC
1/2HP 125-250VAC

3A 250VAC
6A 125VAC
1/4HP 125-250VAC

12A 250VAC
17A 125VAC
3/4HP 125VAC
1HP 250VAC

Circuits

On-Off
On-(Off)
(On)-Off
On-On
On-(On)
On-Off-On
On-Off-(On)
(On)-Off-(On)

Dielectric Strength

1,000 V RMS (minimum)

Insulation Resistance

100 megohms (minimum)

Base Material

Phenolic

Actuator Style

Cross Serrated Rocker
Long Lined Rocker
Smooth Angled Rocker
Curved Matte Rocker
Curved Smooth Rocker
Toggle

Actuator Material

Nylon

Bezel Material

Nylon or Metal

Terminal Options

Solder Lugs
.250 QC Tabs
.187 QC Tabs
Screw Terminals
Wire Leads
PC Terminals

Mounting Method

Snap-In or Screw Mount

Mounting Hole Dimensions

.830" x 1.450"; 21.08mm x 36.83mm

Value Added

Custom colors and legends available
Wire leads with connectors
Watershedding features
Special contact plating
and more

Resources

Applications

General purpose applications requiring illumination with optional sealing levels
