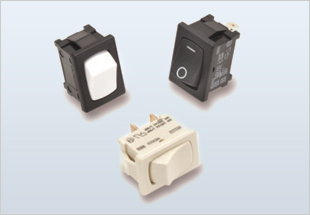

651/652-Series

Product Type:

Small-Sized Rocker Switches

Description:

The 651/652-Series is ideal for applications with back panel size constraints. These single pole switches fit in a standard .508 x .756 rectangular cutout and are designed to provide ease of insertion along with superior panel retention qualities. Additional features include a high profile rocker with Visi-Rocker™ option, butt action contacts, maintained and momentary circuitry, variety of legends and electrical ratings to 12A 125VAC 10A 250VAC.

Single Pole; 10A 250VAC; 12A 125VAC; ¼ HP, 125-250VAC; UL & CSA

Download Datasheet Request a Quote or Sample Configure a PartBrowse Standard Parts
View Similar Products »

Specs

Certifications

UL CSA (European approvals pending)

Number of Poles

1 pole

Ratings

10A 125-250VAC
1/4 HP 125-250HP
10A, 14VT
10A, 28V

10A 125-250VAC 1/4 HP

8A 125-250VAC
1/4 HP 125-250VAC
8A, 28V

12A 125VAC 1/4HP
6A 250VAC 1/4HP

.4VA @ 28VDC resistive

8A 125-250VAC 1/4HP

8A 125-250VAC
1/4 HP 125-250VAC
10A 14V

12A 125VAC
6A 250VAC
1/4HP 125-250VAC
10A 28V

Circuits

On-Off
(On)-Off
On-(Off)
On-On
On-(On)
On-Off-On
(On)-Off-(On)
On-Off-(On)

Dielectric Strength

1,000 V RMS (minimum)

Insulation Resistance

100 megohms (minimum)

Base Material

Nylon

Actuator Style

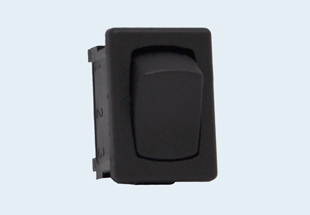

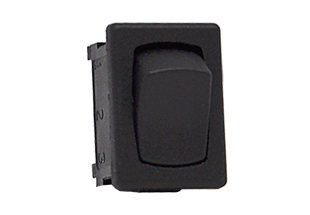

Curved Solid Color Rocker

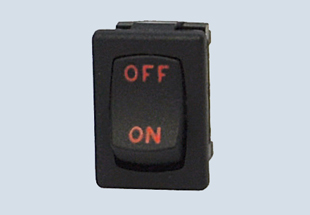

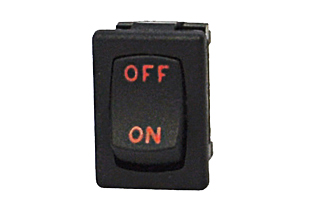

Two Color Visi-Rocker

Actuator Material

Nylon

Terminal Options

.187 QC Tabs
.187 Solder Lugs
Wire Leads

Mounting Method

Snap-In

Mounting Hole Dimensions

.508" x .756"; 12.9mm x 19.2mm

Value Added

Customer colors and legends available
and more

Resources

Applications

Handheld Appliances
Audio-Visual
Power Supplies
Medical Equipment
