LS-Series: Softspot

Product Type:

Full-Sized Rocker Switches

Description:

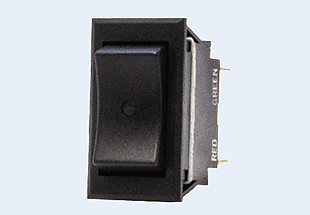

The LS-Series Softspot illuminated rocker switches feature a three-color high brightness light sequence from a single lamp. These single pole switches are designed with a standard nylon snap-in bracket and "Drip-Dry" construction that protects the front panel from dust and moisture. They are offered in a wide range of single throw or double throw momentary and maintained circuits. Options include a variety of rocker colors, lighting sequences, lamp voltages, and terminations.

1 pole; 10A 250VAC, 15A 125VAC max ratings.

View Similar Products »

Specs

Number of Poles

1 pole

Ratings

10A 250VAC
15A 125VAC
3/4HP 125-250VAC

Circuits

On-Off
On-(Off)
(On)-Off
On-On
On-(On)
On-Off-On
On-Off-(On)
(On)-Off-(On)

Dielectric Strength

1,000 V RMS (minimum)

Insulation Resistance

100 megohms (minimum)

Base Material

Phenolic

Actuator Style

Softspot Rocker

Actuator Material

Polycarbonate

Terminal Options

Solder Lugs
.250 QC Tabs
.187 QC Tabs
Screw Terminals
Wire Leads
PC Terminals

Mounting Method

Snap-In

Mounting Hole Dimensions

.830" x 1.450"; 21.08mm x 36.83mm

Value Added

Custom colors and legends available
Independent and dependent lamps available
and more

Resources

Applications

Marine
Transportation
