G-Series

Product Type:

Heavy Duty AC Rated Toggle Switches

Description:

The G-Series toggle switches feature a slow-make, slow-break contact mechanism. They are AC rated and are also suitable for low voltage DC rated applications. They fit the industry standard .500 diameter mounting hole. These switches are available in a wide range of momentary and maintained single throw or double throw circuits, terminations, and bushing/toggle configurations.

Download Datasheet Request a Quote or Sample Configure a PartBrowse Standard Parts
View Similar Products »

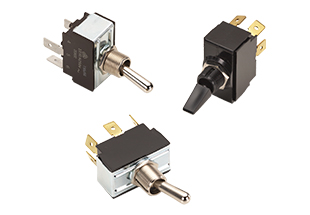

  • G-Series AC rated 1-2 pole toggle switches with tab terminals and different actuator options, including a nylon paddle.

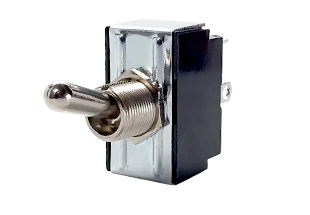

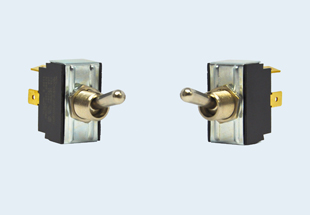

  • G-Series AC rated 1-2 pole toggle switch with metal bat and tab terminals. Bat actuators can be sealed or unsealed.

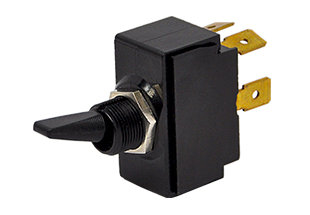

  • G-Series AC rated 1-2 pole toggle switch with all black nylon paddle and tab terminals.

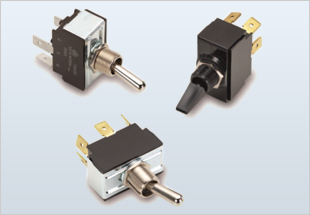

G-Series AC rated 1-2 pole toggle switches with tab terminals and different actuator options, including a nylon paddle.
G-Series AC rated 1-2 pole toggle switch with metal bat and tab terminals. Bat actuators can be sealed or unsealed.
G-Series AC rated 1-2 pole toggle switch with all black nylon paddle and tab terminals.

Specs

Certifications

UL, CSA, VDE (for select circuits)

Number of Poles

1 & 2 pole

Ratings

10A 250VAC
15A 125VAC
3/4HP 125-250VAC

3A 250VAC
6A 125VAC
1/4HP 125-250VAC

12A 250VAC
17A 125VAC
1HP 250VAC

20A 250VAC

20A 125-277VAC
1 1/2HP 125VAC
2HP 125-250VAC

10A 250VAC
15A 125VAC
12(6)A 250VAC T85
1/4HP 125-250VAC

Circuits

On-Off
(On)-Off
On-(Off)
On-On
On-(On)
On-Off-On
On-Off-(On)
(On)-Off-(On)

Dielectric Strength

1,000 V RMS (minimum)

Insulation Resistance

100 megohms (minimum)

Base Material

Phenolic

Actuator Style

Metal Bat Toggles (variety of lengths)
Plastic Chisel Toggles (variety of styles)

Actuator Material

Brass/Nickel Plate or Polycarbonate

Bushing Material

Brass/Nickel Plate or Polycarbonate

Terminal Options

.250 QC Tabs
.187 QC Tabs
Solder Lugs
Wire Leads
Screw Terminals
PC Terminals

Mounting Method

Bushing Mount

Mounting Hole Dimensions

.500" diameter; 12.70mm diameter

Value Added

Special contact plating
Progressive circuits
Additional ratings available
Bushing accessories available
Neoprene seals available
and more

Resources

Switches - Toggle

Applications

Marine
Commercial Food
Generators
Industrial Automation
Office Automation
Medical Equipment
