Product Type:

Heavy Duty AC Rated Toggle Switches

Description:

The F-Series single pole toggle switch features a slow-make, slow-break contact mechanism. This toggle switch series is AC rated and also suitable for low voltage DC rated applications. These toggle switches fit the industry standard .500 diameter mounting hole. The F-Series toggle switch series is available in a wide range of momentary and maintained single or double throw circuits, terminations, and bushing/toggle configurations.

Download Datasheet Request a Quote or Sample Configure a PartBrowse Standard Parts
View Similar Products »
  • F-Series 20 Amp Toggle Switch
  • F-Series Single Pole Toggle Switch
  • F-Series Single Pole Toggle Switch

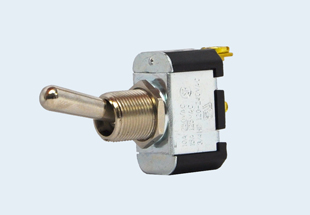

F-Series 20 Amp Toggle Switch

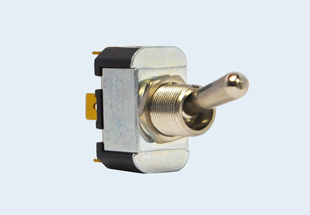

F-Series Single Pole Toggle Switch

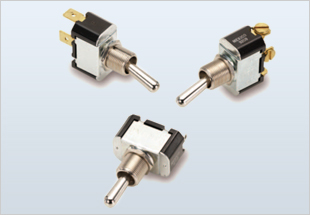

F-Series Single Pole Toggle Switch

Specs

Certifications

UL CSA

Number of Poles

1 pole

Ratings

10A 250VAC
15A 125VAC 3/4HP
120-240VAC

3A 250VAC
6A 125VAC 1/4HP
120-240VAC

Circuits

On-Off
(On)-Off
On-(Off)
On-On
On-(On)
On-Off-On
On-Off-(On)
(On)-Off-(On)

Dielectric Strength

1,000 V RMS (minimum)

Insulation Resistance

100 megohms (minimum)

Base Material

Phenolic

Actuator Style

Bat Toggles (variety of lengths)
Ball Toggle

Actuator Material

Brass/Nickel Plate

Bushing Material

Brass/Nickel Plate

Terminal Options

.250 QC Tabs
Solder Lugs
Wire Leads
Screw Terminals

Mounting Method

Bushing Mount

Mounting Hole Dimensions

.500" diameter; 12.70mm diameter

Value Added

Wire leads with connectors
Special contact plating
Additional ratings available
Bushing accessories available
Neoprene seals available
and more
