1S-Series

Product Type:

Sub-Miniature Switches

Description:

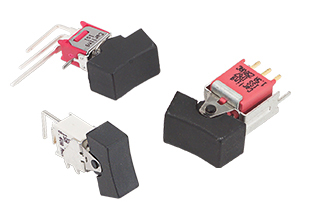

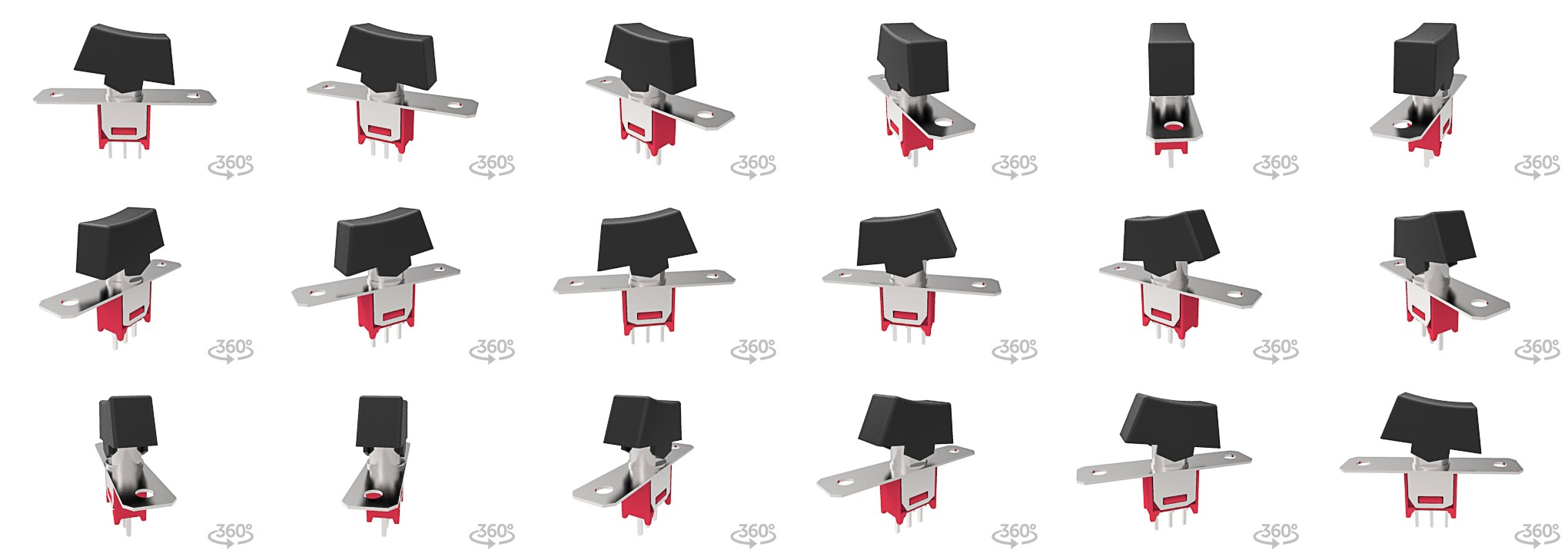

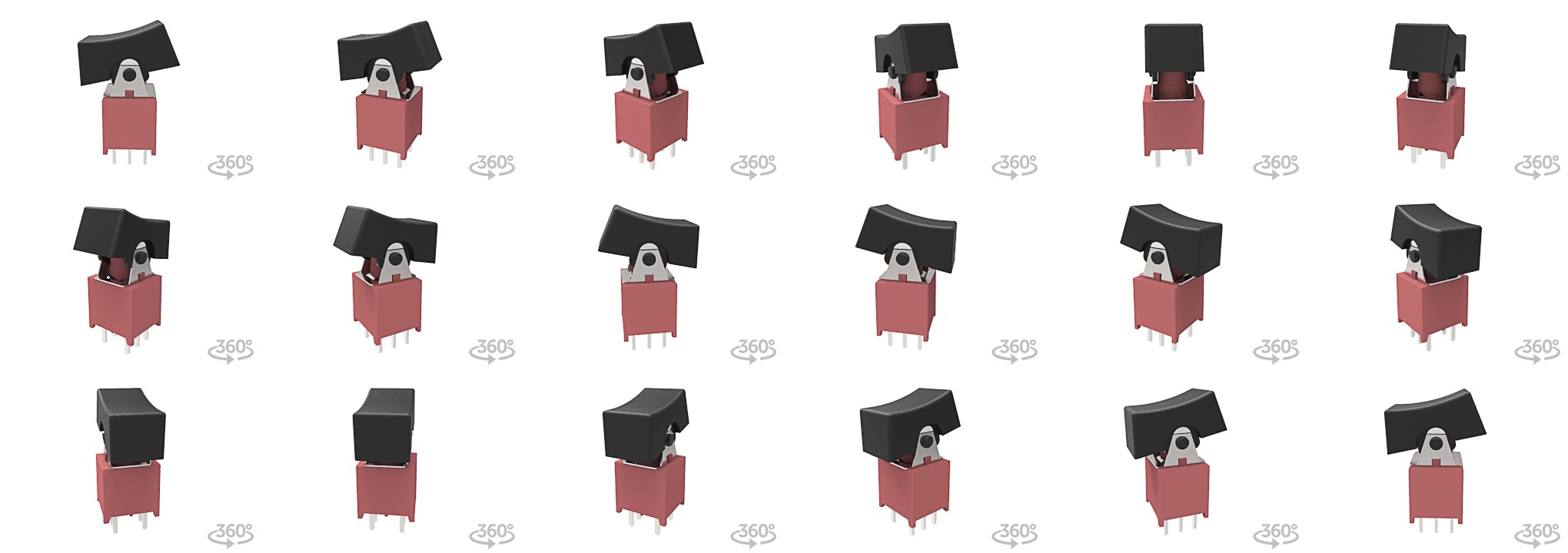

The 1S family of sub-miniature rocker switches is comprised of three switch series: the 1S1-Series sub-miniature rocker switch, the 1SS-Series sealed sub-miniature rocker switch, and the 1SM-Series surface mount sealed subminiature rocker switch. All of these series offer a variety of ratings, circuits, contact materials, terminal platings,and actuator colors.

Download Datasheet Request a Quote or Sample Configure a Part Browse Standard Parts

View Similar Products »

Carling Technologies 1S-Series Subminiature Rocker Switches

Specs

Certifications	1S1-Series: UL & CSA Approved 1SS-Series & 1SM-Series: IP67
Number of Poles	1S1-Series & 1SS-Series: 1-2 poles 1SM-Series: 1 pole
Ratings	3A @ 125 VAC or 28VDC 1.5A @ 250VAC 0.4VA max @ 20V max (AC/DC)
Circuits	On-On On-(On) On-Off-On (On)-Off-(On) On-Off-(On)
Dielectric Strength	1500 Volts RMS @ sea level
Insulation Resistance	1000 megohms (minimum)
Case Material	1S1-Series: Dially phthalate (DAP) (UL94V-0) 1SS-Series: Glass filled nylon 6/6, flame retardant, heat stabilized (UL94V-0) 1SM-Series: Glass filled nylon 4/6, flame retardant, heat stabilized (UL94V-0)
Rocker Material	1S1-Series: Nylon (UL 94V-0) 1SS & 1SM-Series: Nylon, black standard, internal o-ring sealed
Bushing Material	1S1-Series: Brass, nickel plated 1SS-Series: Glass filled nylon 6/6, flame retardant, heat stabilized (UL94V-0) 1SM-Series: Glass filled nylon 4/6, flame retardant, heat stabilized (UL94V-0)
Housing Material	1S1-Series: Stainless Steel
Switch Support	1S1 & 1SM-Series: Brass, tin plated
Terminal Options	Solder Lug PCB PC Mount Snap-in, U bracket
Mounting Hole Dimensions	See PDF datasheet above for dimensions

Resources

Switches - Miniature

1S-Series Datasheet [pdf]

Applications

Instrumentation
Test Equipment
Telecommunications
Networking
Handheld Appliances> Medical Equipment
