About this product

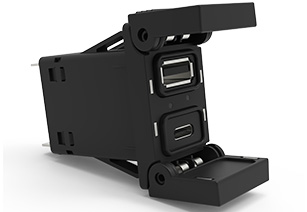

The single-port and dual-port USB CV-Charger is designed to charge electronic devices compatible with USB 2.0 Type A or USB 3.1 Type C, depending on the configuration. The 4.5A USB charger delivers fast charging times, even in extreme temperatures from -40 °C to +85 °C, making it ideal for commercial vehicle applications. The innovative snap-in, panel-mount automotive USB charging port features a spring-loaded access door that automatically closes to safeguard its electronics, ensuring safe and reliable operation. The center LED indicates charging is in progress.
| USB Type | 2.0 for type A (4 pins) and 3.1 for type C (16 pins) |
| Number of USB Ports | 1 or 2 |
| Operating Voltage | 9-32VDC |
| Maximum Output Power | 18W |
| Maximum Output Current | 4.5A |
| Panel Opening | .83" x 1.45"; 21.08mm x 36.83mm |
| Additional specifications | View data sheet for complete specifications |
On/Off Highway
Golf Carts
Lawn & Garden Equipment
Marine
Military
