C1005B-Series

Product Type:

Combination Circuit Protector and Switch

Description:

Designed for streamlined applications, the C1005B-Series offers a switch and circuit protector in one compact package. Created to fit an industry standard .550 x 1.125 mounting hole, the C1005B-Series makes for better use of valuable panel space and reduces wiring costs by eliminating the need for separate switch and circuit breaker.

This single pole combination device offers both lighted and unlighted rocker actuators in multiple color choices with a standard Reset/Off legend imprint. Front panel snap-in mounting with a choice of .250 quick connect tabs or solder lug terminals complete the design of the combination device, making the C1005B-Series ideal for applications such as household and commercial appliances, power strips and supplies, generators, on/off-highway, marine, telecom, as well as audio-visual and medical equipment.

Agency Approvals: UL 1077, UL 1363, cuL, TUV certified to IEC 60934

Amperage: Maximum 16 amps

Voltage: 125/250VAC, 32VDC

Amps Interrupting Capacity: 1,000 amps

View Similar Products »

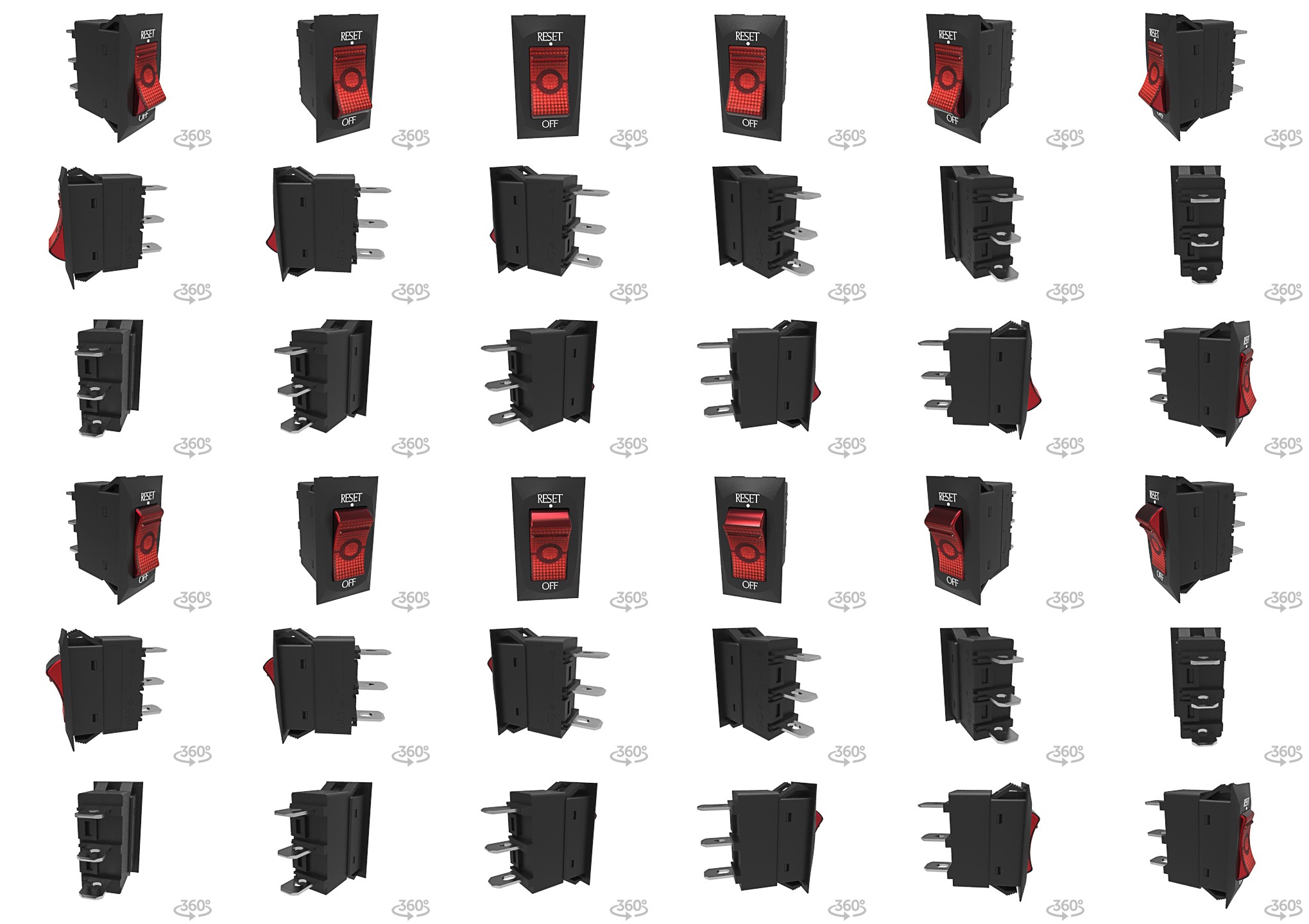

  • C1005B-Series combination thermal protectors and switch with illuminated red rockers, RESET/OFF legends & .250 QC terminals.

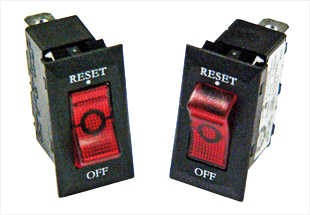

  • C1005B-Series combination thermal protector and switch with illuminated red rocker and standard RESET/OFF legend imprint.

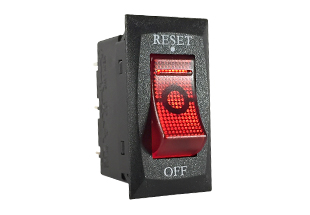

C1005B-Series combination thermal protector and switch with illuminated red rocker, RESET/OFF legend & .250 QC tab terminals.
C1005B-Series combination thermal protectors and switch with illuminated red rockers, RESET/OFF legends & .250 QC terminals.
C1005B-Series combination thermal protector and switch with illuminated red rocker and standard RESET/OFF legend imprint.

Specs

Agency Approvals

UL 1077, UL 1363, cuL, TUV certified to IEC 60934

Number of Poles

1 pole

Maximum Current and Voltage Ratings

7-16 amps @ 125-250VAC, 32VDC

Amps Interrupting Capacity

1,000 amps

Available Circuits

Series Trip

Illumination

Lighted, 125 or 250VAC
Non-lighted

Actuator Style

Rocker actuator

Terminal Options

.250 Quick Connect Tabs
Solder Lugs

Mounting Method

Front Panel Snap-in

Resources

Applications

Household and Commercial Appliances
Power Strips and Supplies
Generators
On/Off-Highway
Marine
Telecom
Audio-Visual Equipment
Medical Equipment
