Eco-Friendly

E-Series

Product Type:

Hydraulic Magnetic Circuit Breaker

Description:

Designed for higher current and voltage applications, the E-series is an excellent choice for commercial HVAC control panels, EV charging systems, generators and power supplies. The E-Series is also a UL Listed, CSA Certified branch circuit breaker and is UL Recognized, CSA Accepted and VED Certified as a supplementary protector.

Performance is enhanced by easy front and back mounting options, including screw and stud terminals that feature either heavy-duty box wire connectors for solid wires or a pressure plate connector for standard wires. An optional power selector device is available.

The E-Series high voltage circuit breaker is configurable as a one to six pole breaker with a handle actuator.

Agency Approvals: UL 489, UL 1077, UL 1500, CSA Accepted, CSA Certified and VDE certified to IEC/EN 60934, CCC

Amperage: Maximum 125 amps

Voltage: Maximum 600VAC or 125VDC

Maximum Interrupting Capacity: 10,000 amps

Download Datasheet Request a Quote or Sample Configure a PartBrowse Standard Parts
View Similar Products »
  • E-Series high voltage circuit breaker showing back connected stud & front connected box wire connector (top) terminal options.
  • E-Series high voltage circuit breaker; 3 poles with standard barriers, back connected stud terminals and handle actuator.

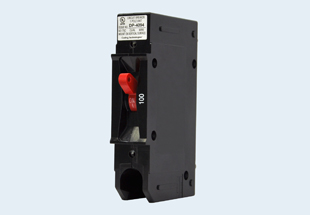

E-Series high voltage circuit breaker in single pole configuration with red handle actuator.
E-Series high voltage circuit breaker showing back connected stud & front connected box wire connector (top) terminal options.

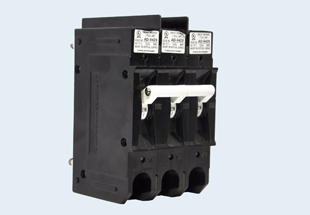

E-Series high voltage circuit breaker; 3 poles with standard barriers, back connected stud terminals and handle actuator.

Specs

Agency Approvals

UL 489, UL 1077, UL 1500, CSA Accepted, CSA Certified and VDE certified to IEC/EN 60934, CCC

Number of Poles

1-6 poles

Available Delays

Instant, Short, Medium, Long (motor loads), Hi-Inrush, AC or DC

Maximum Current and Voltage Ratings

UL Listed:
.10-100A @ 240VAC, 125VDC
UL Recognized:
0.02-100A @ 277VAC, 125VDC, 1 pole
0.02-100A @ 600VAC, 2 pole 1 phase, 3 pole 3 phase

Maximum Interrupting Capacity

10,000 amps

Auxiliary Switch Ratings

10.1A @ 250VAC
0.1A @ 125VAC (gold contacts)
5A @ 30VDC

Available Circuits

Series, Shunt, Relay, Switch Only, Series w/Remote Shutdown

Actuator Style

Handle (1 per pole)

Terminal Options

10-32 Studs
10-32 Screw
1/4-20 Studs
1/4-20 Screw
Box Wire Connector
Box Wire Connector w/pressure plate
Combinations of above for line/load requirements

Mounting Method

Rear Mounted or Front Panel Mounted

Value Added

Custom actuator colors
Non-standard current ratings

Resources

Circuit Breakers - Hydraulic Magnetic

Applications

High Voltage & Current Applications
Renewable Energy
Industrial Controls
Generators
Military
Commercial Food
