H-Series

Product Type:

Hydraulic Magnetic Circuit Breaker

Description:

The cost-effective H-Series delivers dependable protection in a compact design. Offering a choice of terminal options, including PBC mounting, the H-Series breakers fit a broad range of general purpose and full amp load applications and are optimal for meeting the IEC spacing requirements of global markets. H-Series breakers feature a “trip fee” mechanism, which opens the contacts when a fault condition occurs, even if the handle is held in the ON position.

Available with handle or rocker actuators, the H-Series are available in one to three pole configurations.

Agency Approvals: UL 1077, CSA Accepted, TUV certified to IEC/EN 60934, CCC

Amperage: Maximum 35 amps

Voltage: Up to 250VAC or 65VDC and 80VDC for single pole

Maximum Interrupting Capacity: 3,000 amps

Download Datasheet Request a Quote or Sample Configure a PartBrowse Standard Parts
View Similar Products »

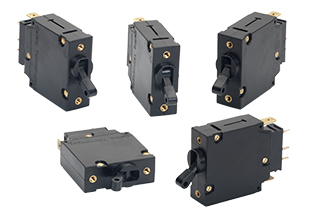

  • H-Series breakers offer a compact design, shown here in single pole with handle actuators. These breakers are IEC compliant

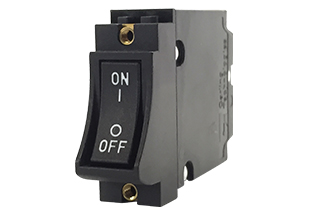

  • Single pole H-Series breaker with rocker actuator and dual on/off legend imprint; this IEC compliant breaker has a 3,000A max IC.

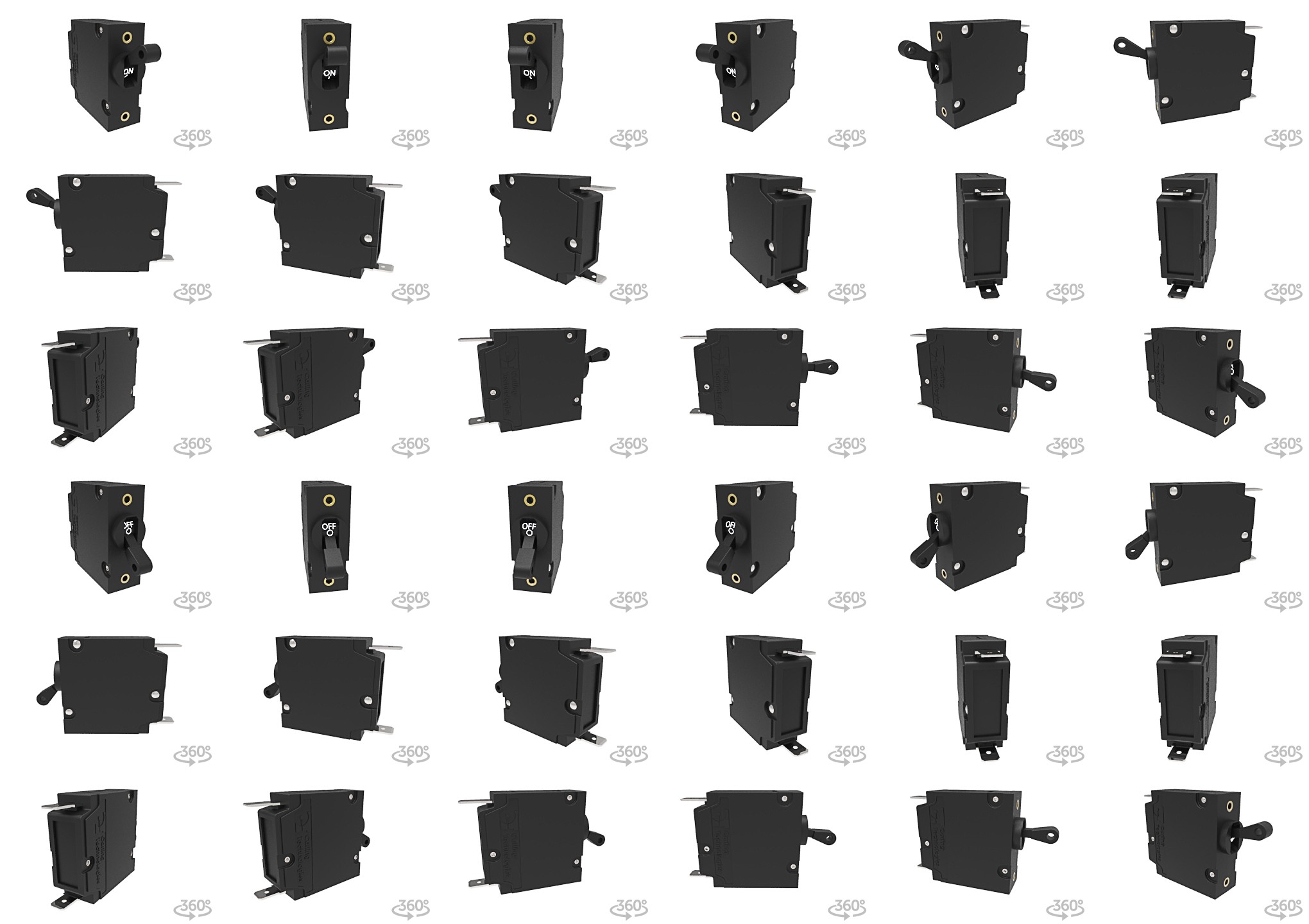

Single pole H-Series breaker with handle actuator and push on tab terminals; this IEC compliant breaker has a 3,000A max IC.
H-Series breakers offer a compact design, shown here in single pole with handle actuators. These breakers are IEC compliant
Single pole H-Series breaker with rocker actuator and dual on/off legend imprint; this IEC compliant breaker has a 3,000A max IC.

Specs

Agency Approvals

UL 1077, CSA Accepted, TUV certified to IEC/EN 60934, CCC

Number of Poles

1-3 poles

Available Delays

AC & DC Instantaneous, Ultra-Short, Short, Medium, Long
AC & DC High Inrush - Short, Medium, Long

Maximum Current and Voltage Ratings

0.1-35A @ 65VDC
0.1-25A @ 80VDC
26-35A @ 80VDC (polarity sensitive)
0.1-35A @ 250VAC
0.1-35A @ 250VAC 80VDC

Maximum Interrupting Capacity

3,000 amps

Auxiliary Switch Ratings

1.0A @ 65VDC
0.5A @ 80VDC
0.1A @ 125VAC (gold contacts)

Available Circuits

Series Trip
Switch Only
Relay Trip

Actuator Style

Solid Color Curved Rocker (1 per unit)
Solid Color Curved Rocker with Guard (1 per unit)
Solid Color Handle (1 per unit)
Solid Color Flat with Push-to-Reset (1 per unit)

Terminal Options

.250 QC Tabs
8-32 Screw with upturned lugs
8-32 Screw (bus type)
M4 Screw with upturned lugs
M4 Screw (bus type)
Printed Circuit Board Terminals,  90° facing left
Printed Circuit Board Terminals,  90°facing right
Printed Circuit Board Terminals,  straight
Printed Circuit Board Terminals,  straight long

Mounting Method

Front Panel

Value Added

Custom actuator colors
Non-standard amp ratings
and more
