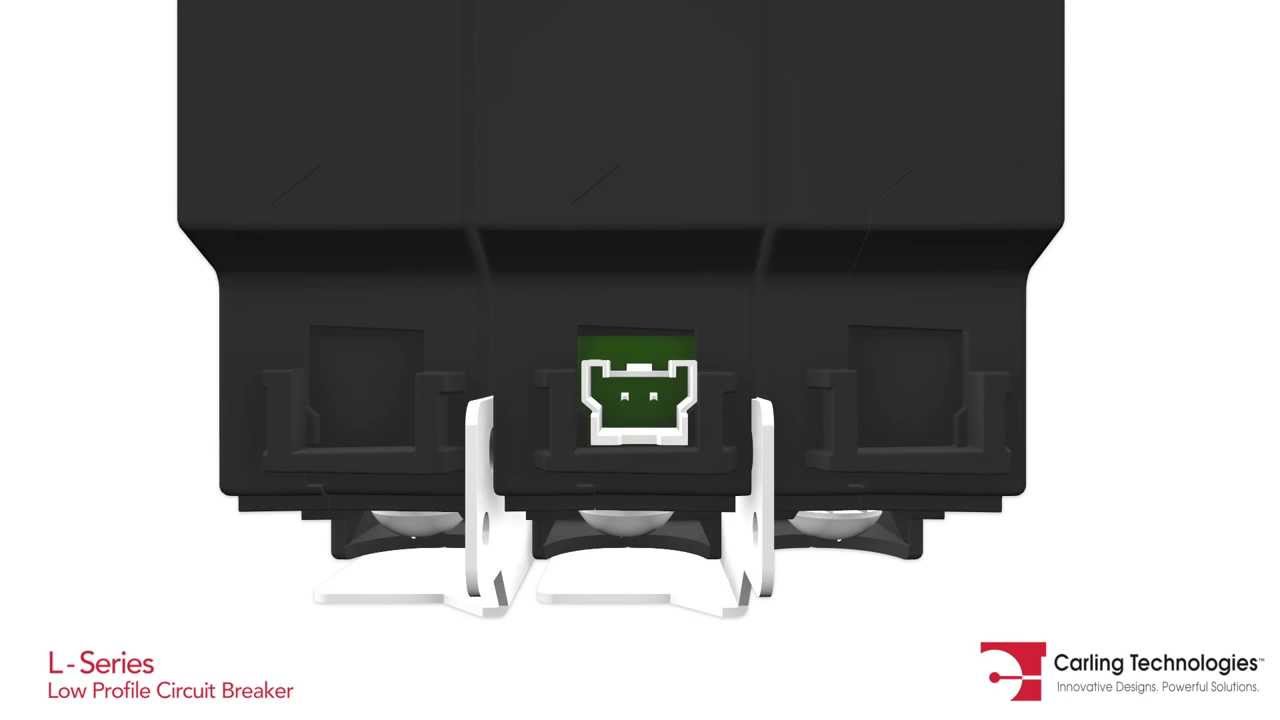

L-Series

Product Type:

Hydraulic Magnetic Circuit Breaker

Description:

The space saving design of the high-performance L-Series is a perfect fit to complement the overall spatial objectives required by datacom and telecom system designers in their quest to reduce the overall size of equipment, while increasing transmission capacity. With the integration of an optional current transformer, the L-Series is capable of sensing current down to a level of 1%. This optional capability provides precise current monitoring and reporting required for back billing of the actual power consumed by datacenter storage and routing devices. This feature also facilitates load adjustments and maximizes efficiency.

Enhanced design features include a patented flush rocker actuator and optional push-to-reset guard to protect against inadvertent actuation. These UL listed breakers are configurable with one to three poles.

Agency Approvals: UL 489, cULus, TUV certified to IEC/EN 60934, CCC

Amperage: Maximum 32 amps

Voltage: Up to 240VAC

Maximum Interrupting Capacity: 5,000 amps

View Similar Products »

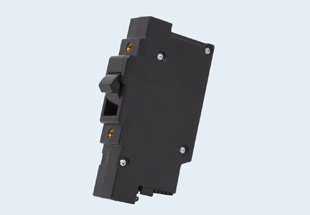

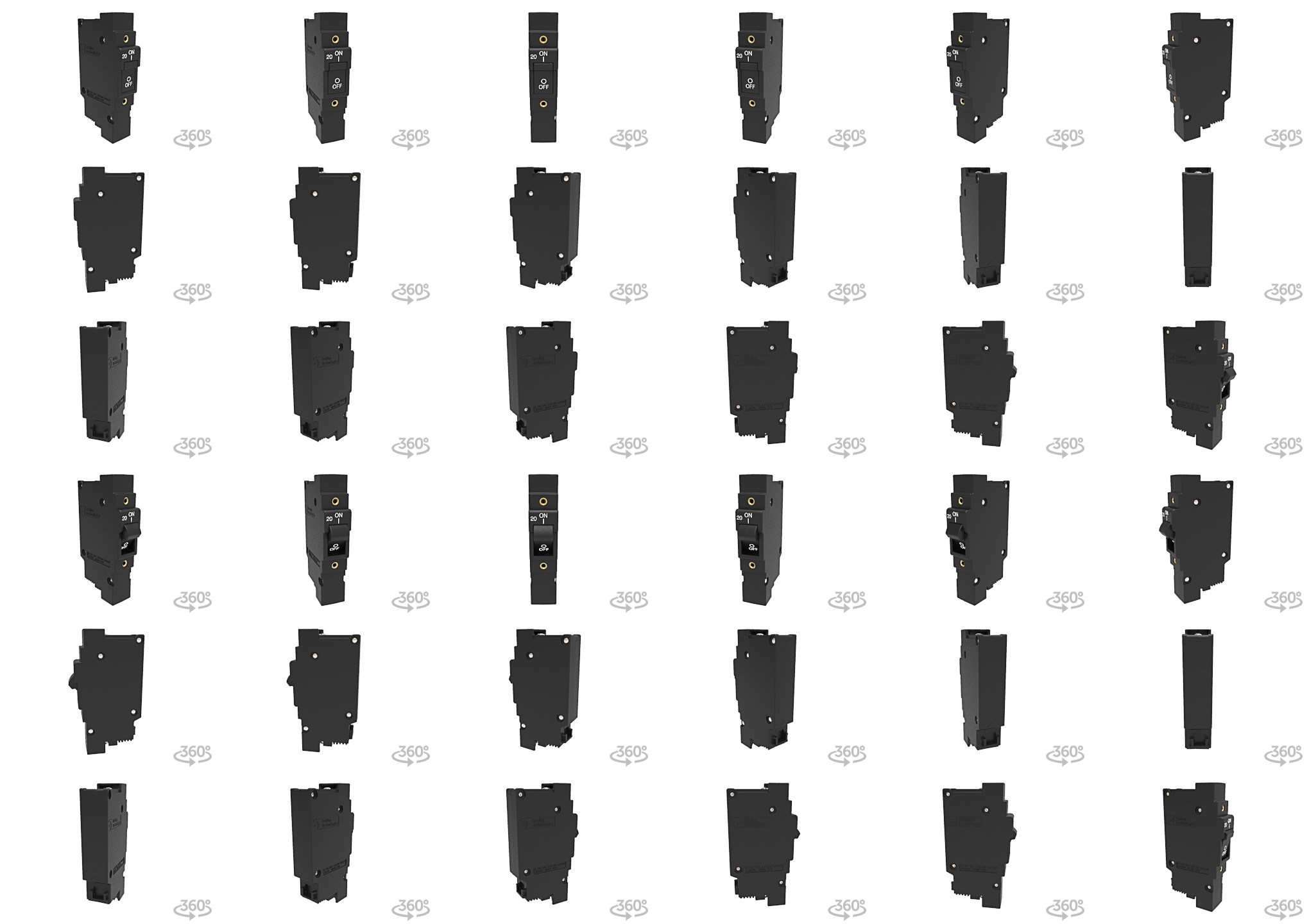

  • L-Series 20 amp single pole breaker; flush rocker actuator with dual horizontal legend imprint in white.

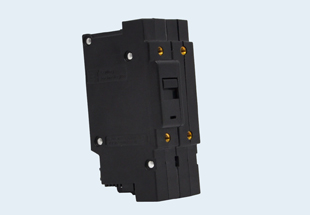

  • L-Series 20 amp two pole breaker; low profile push-to-reset rocker actuators with dual horizontal imprints in white.

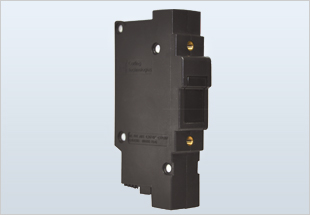

L-Series 20 amp single pole breaker; flush rocker actuator with dual vertical legend imprint in white and screw terminals.

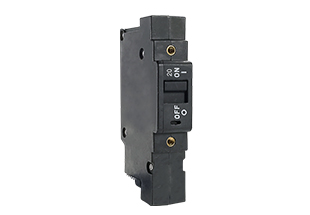

L-Series 20 amp single pole breaker; flush rocker actuator with dual horizontal legend imprint in white.

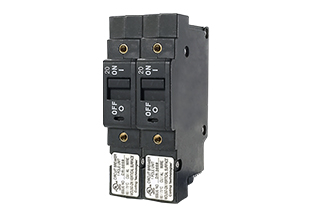

L-Series 20 amp two pole breaker; low profile push-to-reset rocker actuators with dual horizontal imprints in white.

Specs

Agency Approvals

UL 489, cULus, TUV certified to IEC/EN 60934, CCC

Number of Poles

1-3 poles

Available Delays

AC 50/60Hz Ultra-Short, Short, Medium, Long
High Inrush Short, High Inrush Medium, High Inrush Long

Maximum Current and Voltage Ratings

.1-32A @ 120/240VAC
.1-20A @ 415/240VAC, 3-Pole

Maximum Interrupting Capacity

5,000 amps

Auxiliary Switch Ratings

N/A

Available Circuits

Series Trip

Current MeteringAvailable with or without integrated current transformer
Actuator Style

Flush Rocker
Flush Rocker with Push-to-Reset Guard

Terminal Options

8-32 Screw (bus type)
10-32 Screw (bus type)
M4 Screw (bus type)
M5 Screw (bus type)

Mounting Method

Front Panel

Value Added

Optional Current Monitor
Custom actuator colors
Non-standard amp ratings
and more
