Eco-Friendly

G-Series

Product Type:

Hydraulic Magnetic DIN Rail Circuit Breakers

Description:

The G-Series combines maximum protection with ease of use. These DIN rail circuit breakers accommodate either 35mm x 7.5mm or 35mm x 15 mm din rails, and offer a unique terminal bus connection system, common trip linkage between poles and integrated wiping contacts for longevity. The G-Series also provide finger safe terminals and have been tested for reverse feed.

While most DIN rail breakers require a separate pole to allow for an auxiliary switch, the G-Series has the option for an integrated auxiliary switch to provide breaker status indication. Additionally, the integrated auxiliary switch with plug-in terminal allows for pre-wiring, easy interchangeability and various connection methods.

The G-Series DIN rail circuit breakers, as per agency approvals, can be configured with one to three or one to four poles and are well suited for lighting, control panels, industrial automation, telecom and renewable energy applications.

Agency Approvals: UL 489, UL 1077, cRUus, CSA Accepted, TUV certified to IEC/EN 60934, CCC

Amperage: Maximum 80 amps or 50 amps for UL 489

Voltage: Up to 480VAC/80VDC; Up to 240VAC/125VDC for UL 489

Maximum Interrupting Capacity: 5,000 amps

View Similar Products »

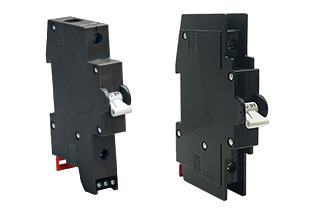

  • Single pole G-Series Recognized & Listed DIN rail circuit breakers with white handle actuator and din rail lock.

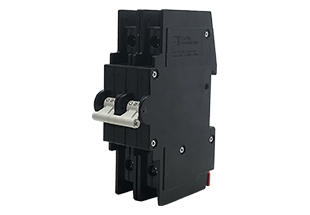

  • 3 pole G-Series Recognized DIN rail circuit breakers with white handle actuators and optional auxiliary switch.

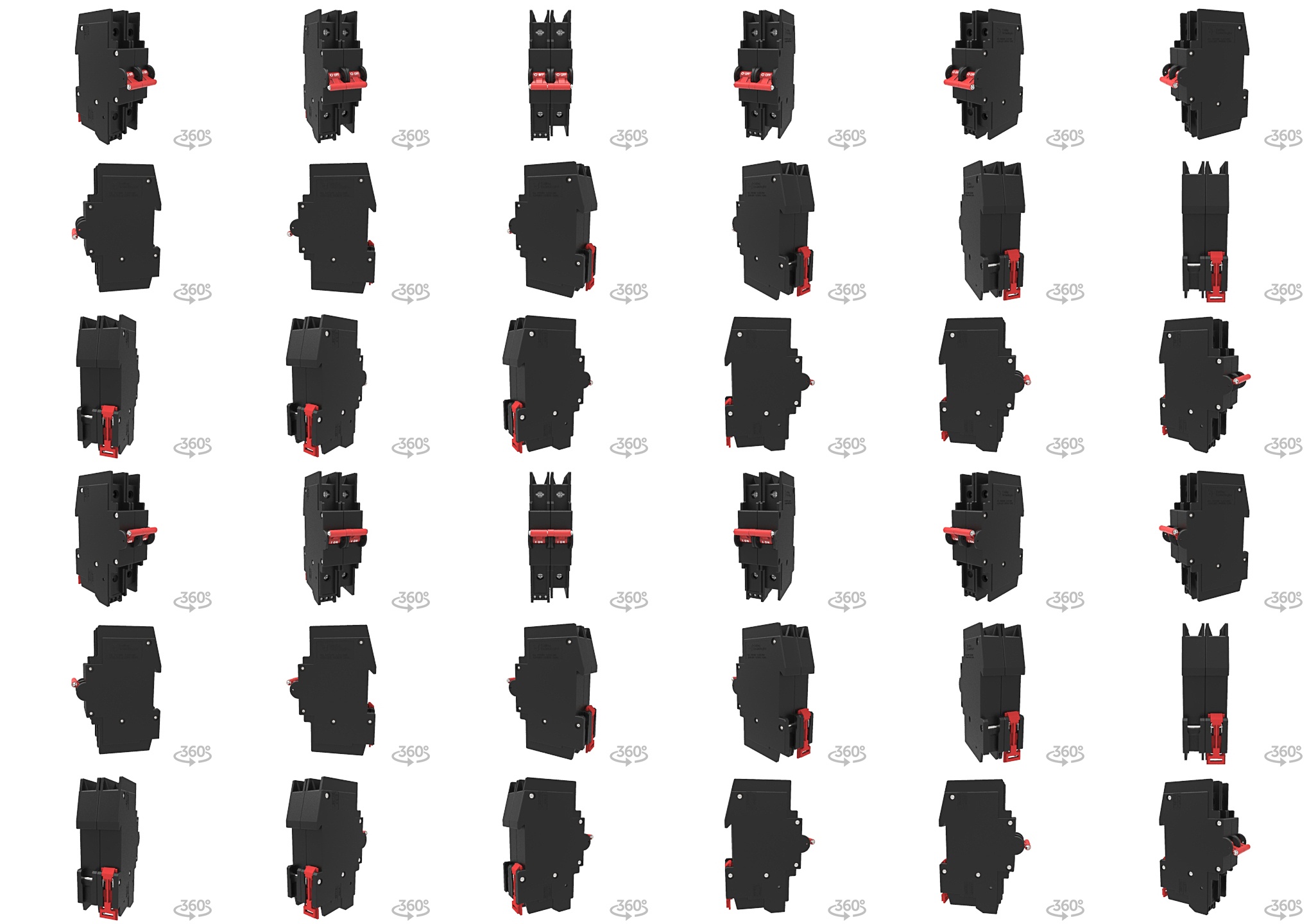

Double pole G-Series Listed DIN rail circuit breakers with red handle actuator, din rail lock, an optional auxiliary switch.
Single pole G-Series Recognized & Listed DIN rail circuit breakers with white handle actuator and din rail lock.
3 pole G-Series Recognized DIN rail circuit breakers with white handle actuators and optional auxiliary switch.

Specs

Agency Approvals

UL 489, UL 1077, cRUus, CSA Accepted, TUV certified to IEC/EN 60934, CCC

Number of Poles

1-4 poles (4th pole for neutral break only)

Available Delays

AC & DC Instantaneous, Ultra-Short, Short, Medium, Long
AC & DC High Inrush - Short, Medium, Long

Maximum Current and Voltage Ratings

0.2-63A @ 80VDC
0.2-63A @ 240VAC
0.2-63A @ 480VAC

Maximum Interrupting Capacity

5,000 amps

Auxiliary Switch Ratings

3A @ 125VAC
2A @ 30VDC

Available Circuits

Series Trip
Switch Only

Actuator Style

Solid Color Handle (1 per unit)

Terminal Options

Screw Terminal

Mounting Method

Rear mount on DIN Rail

Value Added

Custom actuator colors
Non-standard amp ratings
and more

Value Added

Resources

Applications

Industrial Automation
Control Panels
Lighting
Renewable Energy
Telecom
