Eco-Friendly

C-Series

Product Type:

Hydraulic-Magnetic Circuit Breaker

Description:

The C-Series is a compact circuit breaker delivering high amperage and voltage capability while offering the most extensive agency approval options. This robust circuit breaker employs a unique arc chute design which allows for interrupting capacities of up to 10,000 amps, reducing nuisance tripping on high amp loads. The thermoset glass filled polyester half shelf construction found in this compact circuit breaker provides for increased mechanical and electrical strength. Additionally, wiping contacts with two step actuation provide high, positive contact pressure and longer life.

C-Series features the largest variety of handle and rocker actuator styles available from Carling’s breaker series. Rocker actuated configurations include options for a push-to-reset bezel and/or the exclusive Rockerguard, which protects against inadvertent actuation. Furthermore, the C-Series also offers sealed metal toggle options ideal for harsh environments and parallel pole configurations for telecom applications.

The C-Series is configurable as an up to 100 amp breaker in one to six poles with handle actuators and one to three poles with rocker or sealed toggle actuators.

Agency Approvals: UL 489, UL 489A, UL 1077, UL 1500, UL 508, CSA Accepted, CSA Certified, TUV and VDE certified to IEC/EN 60934, TUV certified to IEC/EN 60947-2, CCC

Amperage: Maximum 100 amps or 250 amps for UL 489A parallel pole

Voltage: Up to 480VAC/80VDC; Up to 240VAC/125VDC for UL 489; 80VDC for UL 489A

Maximum Interrupting Capacity: 10,000 amps

View Similar Products »

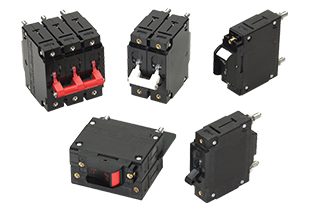

  • C-Series compact circuit breakers; this up to 100 amp breaker offers 1-6 poles with a variety of configurations and actuators.

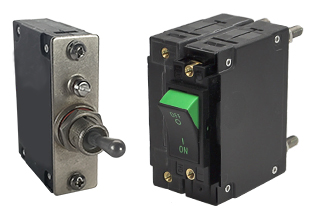

  • C-Series breaker; this up to 100 amp breaker offers 1 to 3 poles for sealed metal toggle and rocker actuator configurations.

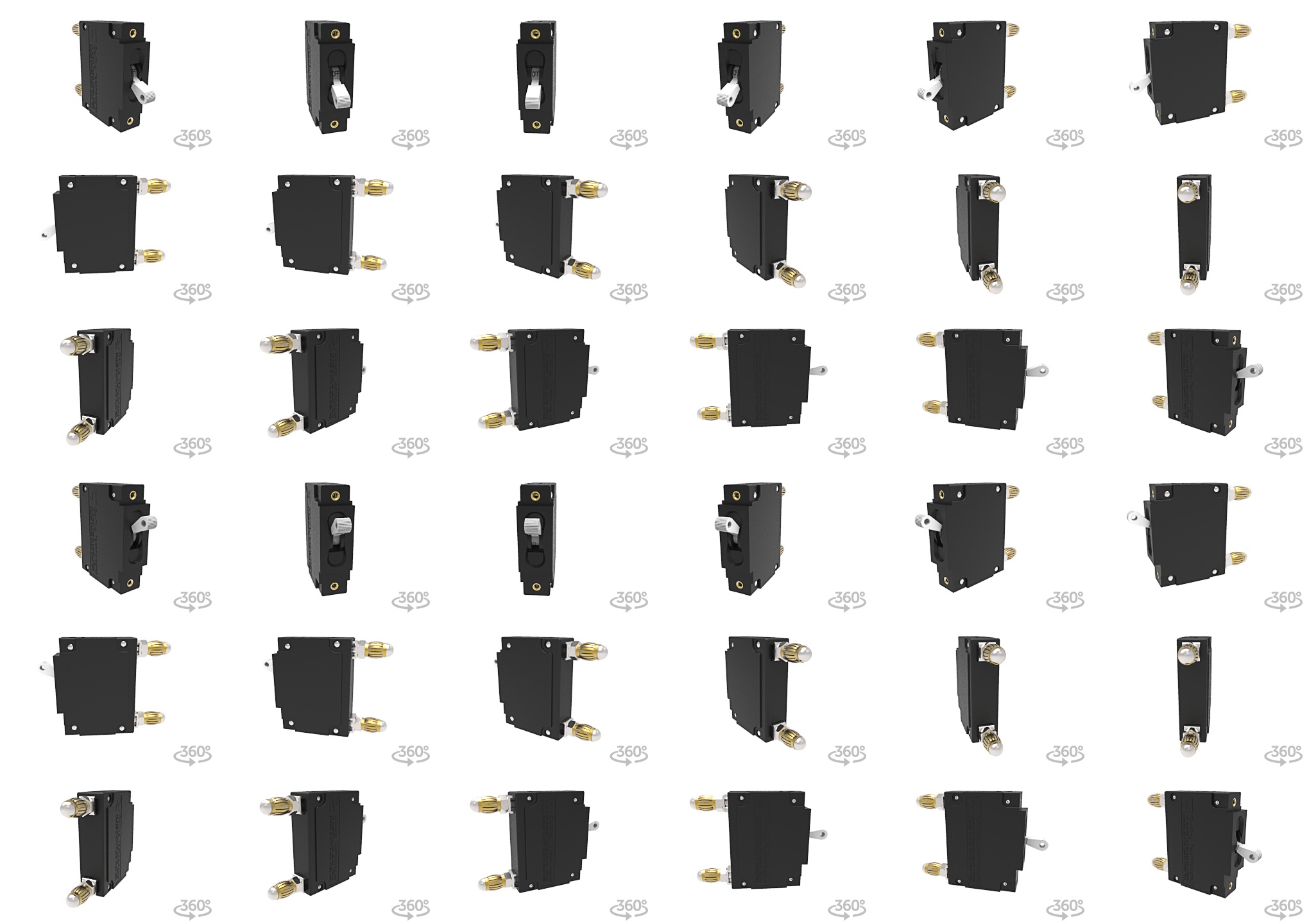

C-Series single pole circuit breaker with handle actuator; this up to 100 amp breaker is available with up to six poles
C-Series compact circuit breakers; this up to 100 amp breaker offers 1-6 poles with a variety of configurations and actuators.
C-Series breaker; this up to 100 amp breaker offers 1 to 3 poles for sealed metal toggle and rocker actuator configurations.

Specs

Agency Approvals

UL 489, UL 489A, UL 1077, UL 1500, UL 508, CSA Accepted, CSA Certified, TUV and VDE certified to IEC/EN 60934, TUV certified to IEC/EN 60947-2, CCC

Number of Poles

1-6 poles Handle Actuator
1-3 poles Rocker Actuator
1-3 poles Metal Toggle

Available Delays

Instant, Ultra-Short, Short, Medium, Long (motor loads), AC,DC, AC/DC; High Inrush - Short, Medium, Long

Maximum Current and Voltage Ratings

UL Listed:
0.1-100A @ 80VDC
0.1-60A @ 125VDC
0.1-70A @ 120VAC
0.1-30A @ 240VAC (single pole)
0.1-20A @ 240VAC (2 pole)


110-250A @ 80VDC (UL489A Listed)
UL Recognized:
0.02-30A @ 480WYE/277VAC 2 pole 1 phase,
3 pole 3 phase
0.02-50A @ 277VAC
0.02-70A @ 250VAC, 80VDC
71-100A @ 120/240VAC, 65VDC

Maximum Interrupting Capacity

10,000 amps

Auxiliary Switch Ratings

10.1A @ 250VAC
0.1A @ 125VAC (gold contacts)
5A @ 30VDC
0.5A @ 80VDC
1.0A @ 65VDC

Available Circuits

Series, Shunt, Relay, Switch Only, Series Mid-Trip w/ Alarm Switch, Series w/Remote Shutdown, Relay and Shunt Trip Dual Coil

Actuator Style

Solid Color Curved Rocker (1 per unit)
Two Color Visi-Rocker (1 per unit)
Handle (1 per pole or 1 per unit)
Mid Trip Handle (1 per pole)
Mid Trip Handle and Alarm Switch (1 per pole)

Terminal Options

.250 Double QC Tabs
10-32 Threaded Stud
10-32 Screw
10-32 Screw with Washer and Saddle Clamp
1/4-20 Threaded Stud
M5 Threaded Stud
M6 Threaded Stud
Push in Stud Terminal

Mounting Method

Front Panel

Value Added

Custom actuator colors
Non-standard amp ratings
Panel hole plug available

Remote Operator Input

Applications

Marine
Datacom/Telecom
Renewable Energy
Generators & Welders
Military
Industrial Automation
Commercial Food
Medical Equipment
