M-Series

Product Type:

Hydraulic Magnetic Circuit Breaker

Description:

The M-Series miniature circuit breakers offer high performance in a compact design, complete with front panel snap-in or bushing mounting as well as a vertically mounted parallel pole configuration.

These miniature circuit breakers offer several agency approvals and are available with multiple design choices to meet the needs of almost any application, including 16 different time delays, 5 terminal styles, a variety of panel hardware, multiple color options and legend imprinting. The M-Series also features a choice of actuators that include flat or angled rockers with or without illumination, a two color Visi-Rocker, paddle, baton, push-pull or push-to-reset. Our exclusive Rockerguard protects against inadvertent actuation and wiping contacts assure long-term reliability of these miniature circuit breakers.

The M-Series is available as a one to two or parallel pole breaker.

Agency Approvals: UL 489A, UL 1077, CSA Accepted, TUV & VDE certified to IEC/EN 60934, CCC

Amperage: Maximum 30 amps or 50 amps for UL 489A parallel pole

Voltage: Up to 250VAC or 80VDC

Maximum Interrupting Capacity: 1,000 amps; 600 amps TUV; 500 amps VDE

View Similar Products »
  • M-Series miniature circuit breakers offered in 1, 2 or parallel poles with many actuator & termination options.

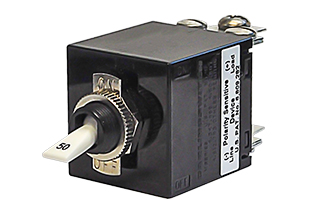

  • 50 amp M-Series miniature circuit breaker; white paddle actuator, black amp legend imprint on paddle and on/off legend plate.

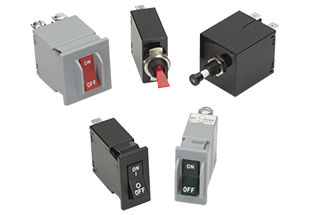

M-Series miniature circuit breaker; illuminated red rocker actuator with on/off legend imprint and quick connect terminals.
M-Series miniature circuit breakers offered in 1, 2 or parallel poles with many actuator & termination options.
50 amp M-Series miniature circuit breaker; white paddle actuator, black amp legend imprint on paddle and on/off legend plate.

Specs

Agency Approvals

UL 489A, UL 1077, CSA Accepted, TUV & VDE certified to IEC/EN 60934, CCC

Number of Poles

1 & 2 poles

Available Delays

Instant, Short, Medium - AC/DC, Hi-Inrush

Maximum Current and Voltage Ratings

0.02-15FLA, 32VDC, 125VAC, 1 pole
15.1-25GPA, 32VDC, 125VAC, 1-pole
0.02-15FLA, 65VDC, 250VAC, 2-pole
15.1-25GPA, 65VDC, 250VAC, 2-pole
0.02-12FLA, 250VAC, 1-pole
0.02-7.5GPA, 50VDC, 1-pole
0.02-30GPA, 65VDC, 80VDC, 1 pole

Maximum Interrupting Capacity

1,000 amps; 600 amps TUV; 500 amps VDE

Auxiliary Switch Ratings

7A @ 250VAC
0.1A @ 125VAC (gold contacts)
7A (Res.) @ 28VDC
4A (Ind.) @ 28VDC
0.25A @ 80VDC

Available Circuits

Series and Switch Only

Actuator Style

Solid Color Angled Rocker
Solid Color Flat Rocker
Two Color Visi-Rocker
Illuminated Angled Rocker
Illuminated Flat Rocker
Solid Color Paddle
Solid Color Baton
Solid Color Push-to-Reset Pushbutton
Solid Color Push-Pull Pushbutton

Terminal Options

.250 QC Tabs
8-32 Screw w/ Upturned Lugs
8-32 Screw (Bus Type)
Push in Stud Terminals

Mounting Method

Snap-in Front Panel

Value Added

Custom colors
Non-standard current ratings
Panel hole plug available
Amp markings for pushbutton actuators
and more

Resources

Applications

Telecom
Transportation
Marine
Generators
Power Supplies
Medical Equipment
Commercial Food
