Eco-Friendly

N-Series

Product Type:

Hydraulic Magnetic Circuit Breaker

Description:

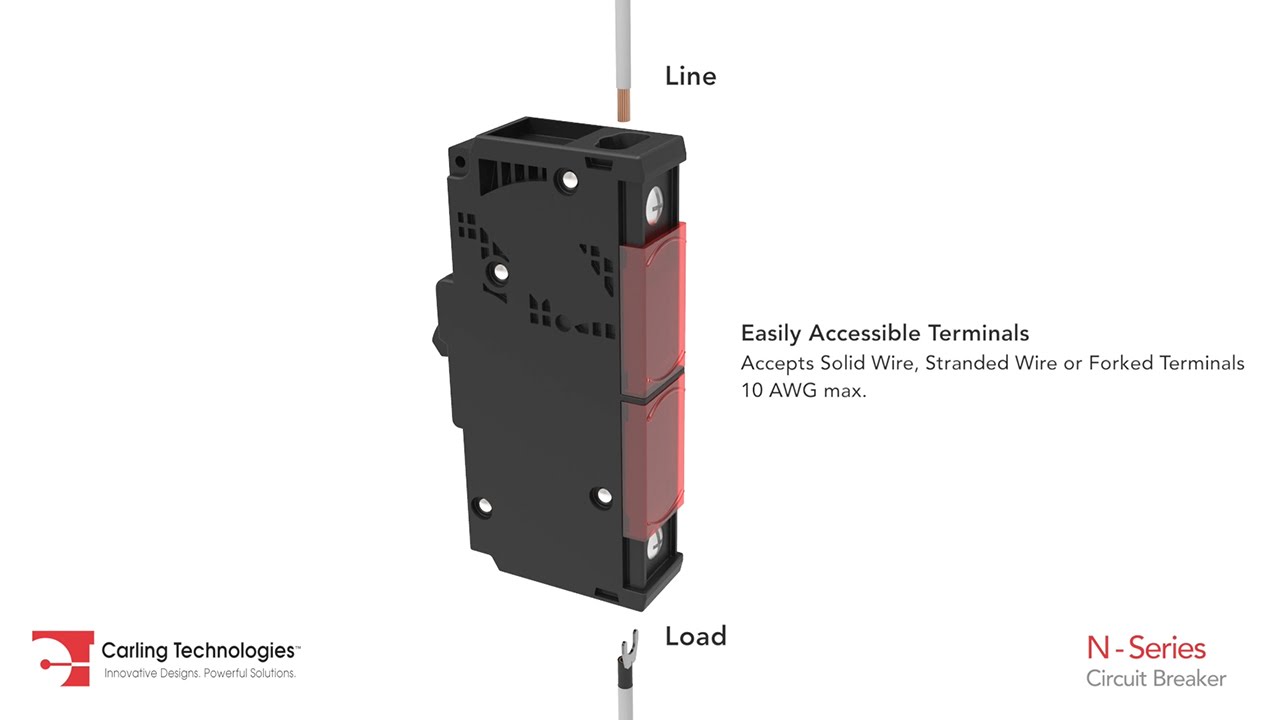

Specifically engineered for the shrinking space requirements found in today’s electronic equipment, particularly power distribution units and rack systems, the full-featured N-Series offers an innovative low profile design, as well as several value-add features ideal for datacom and telecom industries. These features include line and load terminals at the top and bottom of the casing for easier installation in tight spaces, as well as an optional current transformer, capable of sensing current down to 1%. This optional feature allows for remote outlet metering of power usage to facilitate more accurate and efficient billing.

The N-Series then adds UL 489 compliant sliding terminal barriers that seamlessly glide into place and a patented flush rocker actuator with push-to-reset guard to protect against inadvertent actuation.

This up to 30 amp breaker is configurable in one or two poles.

Agency Approvals: UL 489, TUV certified to IEC/EN 60947-2

Amperage: Maximum 30 amps; 20 amps for single pole

Voltage: Maximum 120/240VAC; up to 277VAC for single pole

Maximum Interrupting Capacity: 22,000 amps; 10,000 amps for single pole

View Similar Products »

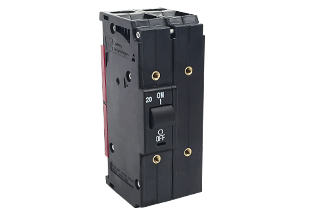

  • 2 pole N-Series breaker; this up to 30 amp breaker with its low profile was designed for the tight spaces of PDUs/rack systems.

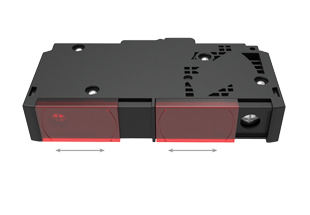

  • N-series breaker is ideal for data servers and PDUs; this up to 30 amp breaker features UL 489 sliding terminal barriers.
Single pole N-Series breaker; this up to 30 amp breaker features a flush rocker actuator with push-to-reset guard.
2 pole N-Series breaker; this up to 30 amp breaker with its low profile was designed for the tight spaces of PDUs/rack systems.
N-series breaker is ideal for data servers and PDUs; this up to 30 amp breaker features UL 489 sliding terminal barriers.

Specs

Agency Approvals

UL 489, TUV certified to IEC/EN 60947-2

Number of Poles

1-2 Poles

Available Delays

AC 50/60Hz Ultra-Short, Short, Medium, Long
High Inrush Short, High Inrush Medium, High Inrush Long

Maximum Current and Voltage Ratings

1-30A @ 120/240VAC
1-20A @ 277VAC

Maximum Interrupting Capacity

22,000 amps; 10,000 amps for single pole

Auxiliary Swich Ratings

N/A

Available Circuits

Series Trip

Current Metering

Available with or without integrated current transformer

Actuator Style

Flush Rocker
Flush Rocker with Push-to-Reset Guard

Terminal Options

Screw Terminal with sliding terminal barriers

Mounting Method

Front Panel

Value Added

Optional Current Monitor
Custom actuator colors
Non-standard amp ratings
and more

Resources

Applications

Datacom/Telecom:
Power Distribution Units
Data Servers
Data Storage
