Eco-Friendly

D-Series

Product Type:

Hydraulic Magnetic DIN Rail Circuit Breaker

Description:

The D-Series DIN rail mount circuit breaker easily snaps into either a 35mm x 7.5mm, or a 35mm x 15mm symmetrical DIN rail. The easy assembly and removal of the D-Series is enhanced by thoughtful safety features, including recessed wire ready terminals that are both touch proof and shock resistant.

Ease of use is another hallmark of these breakers. An available two-color Visi-Rocker™ makes it simple to see when the breaker is in the ON or TRIPPED/OFF mode. Adding to the breaker’s safety and simplicity, all actuator types fit the same industry standard panel cutouts and are designed to facilitate dead-front construction.

The D-Series DIN rail mount circuit breaker is available as one to four pole handle breakers or a one to three pole rocker breakers.

Agency Approvals: UL 1077, UL 508, CSA Accepted and VDE certified to IEC/EN 60934

Amperage: Maximum 50 amps

Voltage: 480Y/277VAC or 80VDC

Maximum Interrupting Capacity: 5,000 amps

Download Datasheet Request a Quote or Sample Configure a PartBrowse Standard Parts
View Similar Products »
  • D-Series DIN rail mount circuit breaker available as a 1 to 4 pole handle breaker or a 1 to 3 pole rocker breaker.

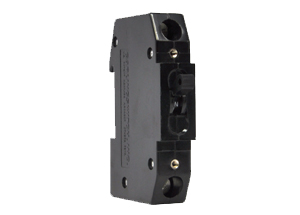

  • D-Series DIN rail mount circuit breaker in single pole configuration with handle actuator.

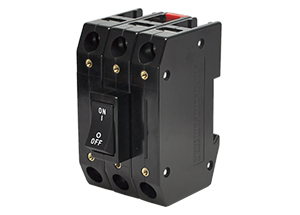

  • D-Series DIN rail mount circuit breaker in three pole configuration with rocker actuator.
D-Series DIN rail mount circuit breaker available as a 1 to 4 pole handle breaker or a 1 to 3 pole rocker breaker.
D-Series DIN rail mount circuit breaker in single pole configuration with handle actuator.
D-Series DIN rail mount circuit breaker in three pole configuration with rocker actuator.

Specs

Agency Approvals

UL 1077, UL 508, CSA Accepted and VDE certified to IEC/EN 60934

Number of Poles

1-4 poles (handle actuators)
1-3 poles (rocker actuators)

Available Delays

Instant, Ultra-Short, Short, Medium, Long (motor loads), AC,DC, AC/DC; High Inrush - Short, Medium, Long

Maximum Current and Voltage Ratings

0.02-50A @ 277VAC, 65VDC
0.02-30A @ 480WYE/277VAC, 2 pole 1 phase,
3 pole 3 phase

Maximum Interrupting Capacity

5,000 amps

Auxiliary Switch Ratings

N/A

Available Circuits

Series, Switch Only, Series w/Remote Shutdown

Actuator Style

Solid Color Curved Rocker (1 per unit)
Two Color Visi-Rocker (1 per unit)
Handle (1 per pole or 1 per unit)

Terminal Options

Recessed wire-ready, pressure plate type screw terminals

Mounting Method

Rear Mounted on DIN Rail or Front Panel Mounted

Value Added

Custom actuator colors
Non-standard current ratings
