V-Series Contura® II & III

Product Type:

Sealed Rocker Switches

Description:

Certified to IP66/68, the V-Series Contura II & III rocker switches offer complete above-panel protection against dust, prolonged spray and submersion under pressure and are recognized to UL 1500 Ignition Protection for Marine products. These switches are vibration, shock, thermoshock, moisture and salt spray resistant with operating temperature ranging from -40°C to 85°C.

Contura II & III styles feature square and bar lens options with convex actuators constructed of thermoplastic polycarbonate with hard nylon or “soft touch” elastomer overlay. The Contura II features 2 rows of raised bump finger traction on top and bottom of rocker. The Contura III features 3 rows of ridged finger traction on top and bottom of rocker. Both actuator options have flush style brackets.

View Similar Products »
  • V-Series Contura II Illuminated Sealed Rocker Switches with Red, Black & Blue Actuators
  • V-Series Contura III Sealed Rocker Switches with Gray, Black & Purple Actuators

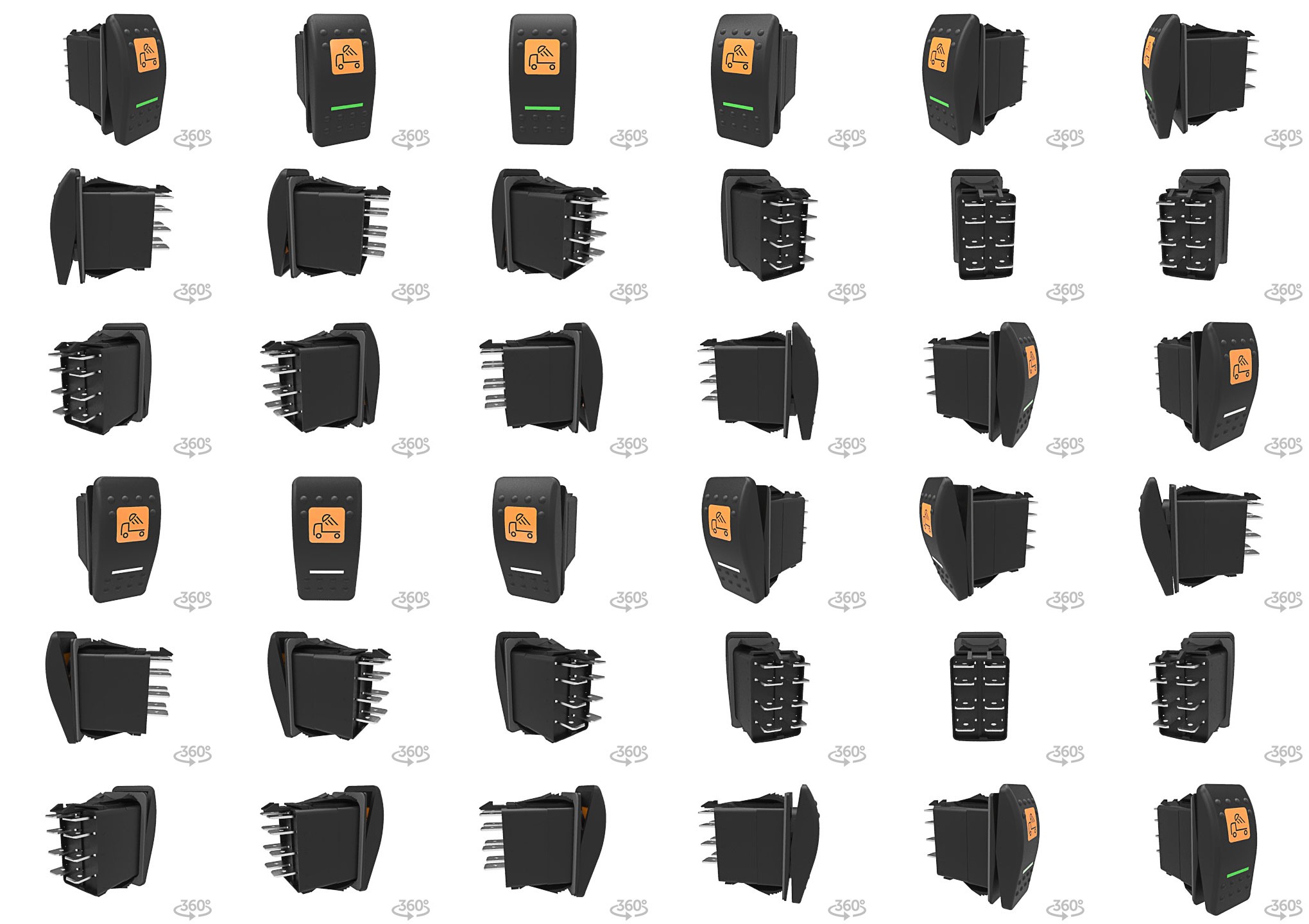

V-Series Contura II Illuminated Sealed Rocker Switch with Black Actuator and 8 Terminal Base

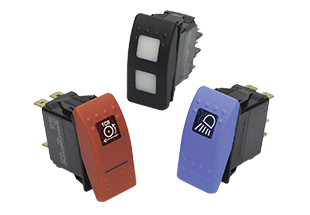

V-Series Contura II Illuminated Sealed Rocker Switches with Red, Black & Blue Actuators

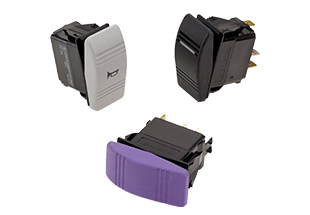

V-Series Contura III Sealed Rocker Switches with Gray, Black & Purple Actuators

Specs

Certifications

UL CSA

Number of Poles

1-2 poles

Ratings

10A 250VAC
15A 125VAC
1/2HP

15A 125VAC
1/2HP
12(2)A 125VAC uT85

15A 125VAC
1/2HP
12(6)A 125VAC T85

10A 250VAC
15A 125VAC
1/2HP 125-250VAC
12(2)A 250VAC uT85

10A 250VAC
15A 125VAC
1/2HP 125-250VAC
12(6)A 250VAC T85

15A 24V

20A 18V

20A 12V

20A 6V

20A 3V

Circuits

On-Off
(On)-Off
On-(Off)
On-On
On-(On)
On-Off-On
On-Off-(On)
(On)-Off-(On)

Variety of Special Circuits available

Dielectric Strength

2,000 V RMS opposite polarity
4,000 V RMS between live parts and operator accessible surface

Insulation Resistance

50 megohms (minimum)

Base Material

Polyester

Actuator Style

Convex rocker with bumped finger traction
Convex rocker with ridged finger traction
Illuminated convex rocker with square lens
Illuminated convex rocker with bar lens(es)
Illuminated convex rocker with combination square and bar lenses
"Soft Touch" versions of rockers listed above
Locking Rocker

Actuator Material

Underlay/lens - Polycarbonate
Hard overlay - Nylon
Soft Touch overlay - Thermoplastic elastomer

Bracket/Bezel Material

Nylon

Terminal Options

.250 QC Tabs

Mounting Method

Snap-In

Mounting Hole Dimensions

.83" x 1.45" ; 21.08mm x 36.83mm

Value Added

Customer colors and legends available
Special circuits
Mounting Panels
Optional lock-on terminal connector
Hole Plug
Actuator removal tool
and more

Applications

On/Off-Highway
Marine
Armored Vehicles
Industrial Automation
Commercial Food
Medical Equipment
Any application requiring environmental protection
