V-Series: Contura IV, V & VII

Product Type:

Sealed Rocker Switches

Description:

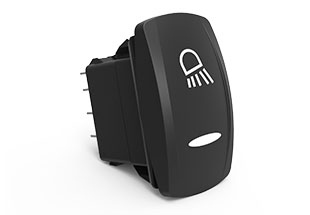

The V-Series switches are well known for their cutting edge design, high quality, maximum performance and unmatched reliability. These snap-in rocker switches offer countless options for ratings, circuits, colors, illuminations and symbols. These single or double pole switches feature removable actuators in a choice of actuator styles and colors, which may be purchased and stocked separately. An optional plug-in terminal connector enables pre-wiring of wire harness.

Certified to IP66/68, the V-Series Contura switches offer complete protection against dust, prolonged spray and submersion under pressure and are recognized to UL1500 - Ignition Protection for Marine Products. These switches are vibration, shock, thermoshock, moisture and salt spray resistant with operating temperature ranging from -40°C to 85°C.

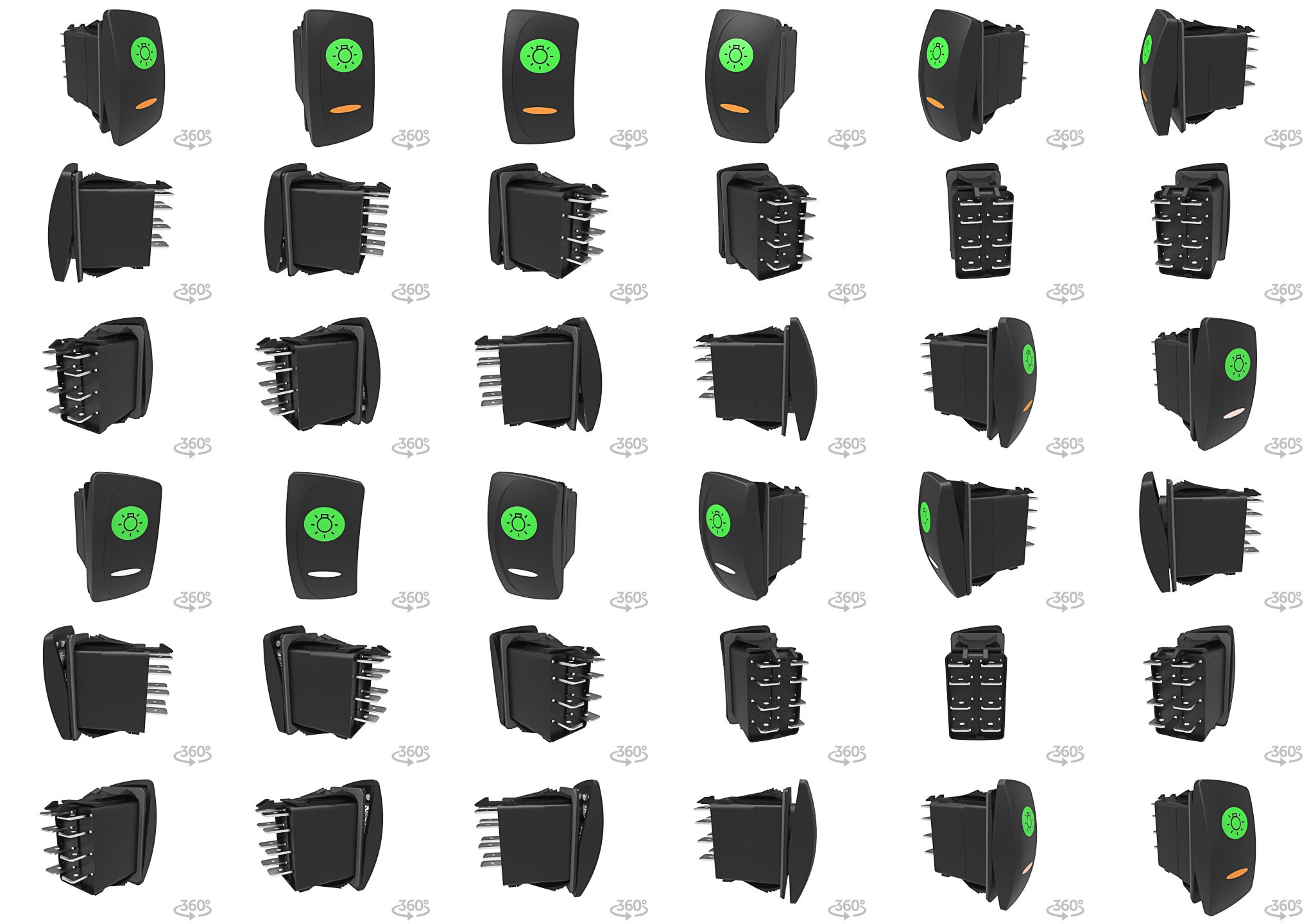

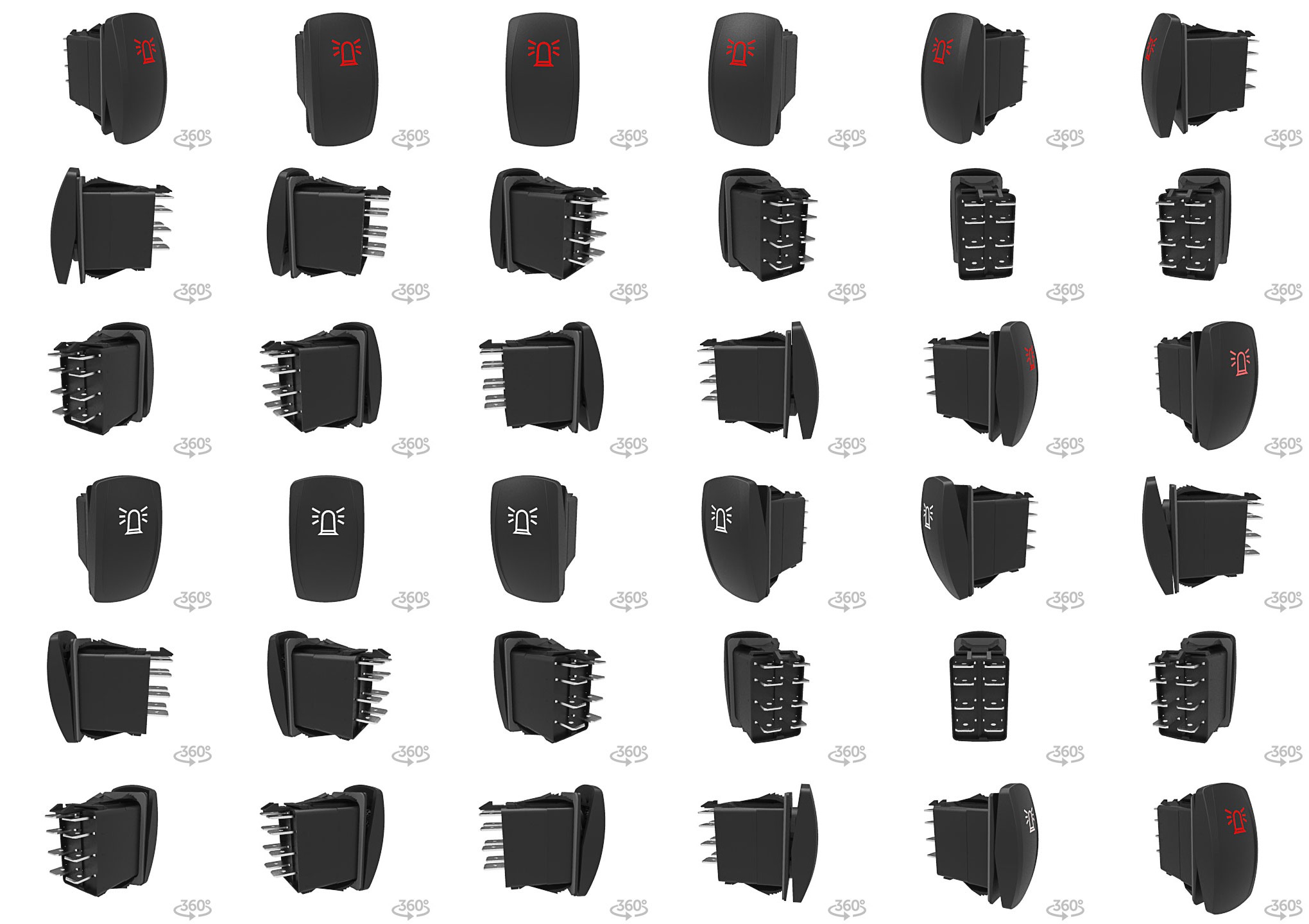

The Contura IV features an asymmetrical “orange wedge” shaped actuator that can be mounted as half-moon, triangle, pyramid or stack. The Contura V features a symmetrical curve and can be mounted alone, in groups, or between two Contura IVs. Both models are available with oval or elliptical lens and with optional laser etching.

The Contura VII features gently curved corners and edges with a soft textured embossed circular pads at top and bottom of actuator for intuitive feel.

View Similar Products »

Specs

Certifications

UL CSA

Number of Poles

1-2 poles

Ratings

10A 250VAC
15A 125VAC
1/2HP

15A 125VAC
1/2HP
12(2)A 125VAC uT85

15A 125VAC
1/2HP
12(6)A 125VAC T85

10A 250VAC
15A 125VAC
1/2HP 125-250VAC
12(2)A 250VAC uT85

10A 250VAC
15A 125VAC
1/2HP 125-250VAC
12(6)A 250VAC T85

15A 24V

20A 18V

20A 12V

20A 6V

20A 3V

Circuits

On-Off
(On)-Off
On-(Off)
On-On
On-(On)
On-Off-On
On-Off-(On)
(On)-Off-(On)

Variety of Special Circuits available

Dielectric Strength

2,000 V RMS opposite polarity
4,000 V RMS between live parts and operator accessible surface

Insulation Resistance

50 megohms (minimum)

Base Material

Polyester

Actuator Style

Asymmetrical curved rocker with oval lens (es)
Asymmetrical curved rocker with bar lens (es)
Asymmetrical curved rocker with combination oval and bar lenses.
Asymmetrical curved locking rocker with or without lens
Symmetrical curved rocker with oval lens (es)
Symmetrical curved rocker with bar lens (es)
Symmetrical curved rocker with combination oval and bar lenses.
Symmetrical soft rounded rocker with oval lens (es)
Symmetrical soft rounded rocker with rounded bar lens (es)
Symmetrical soft rounded rocker with combination oval and rounded bar lenses.

Actuator Material

Underlay/lens - Polycarbonate
Hard overlay - Nylon
Soft Touch overlay - Thermoplastic elastomer

Bracket/Bezel Material

Nylon

Terminal Options

.250 QC Tabs

Mounting Method

Snap-In

Mounting Hole Dimensions

.83" x 1.45" ; 21.08mm x 36.83mm

Value Added

Custom colors and legends available
Special circuits
Hazard warning circuits
Modular or single piece mounting brackets
Optional lock-on terminal connector
Hole Plug
Actuator removal tool
and more

Applications

On/Off Highway Equipment
Marine
Military Armored Vehicles
Mining Machinery and Equipment
Any application requiring environmental protection
Back to Top

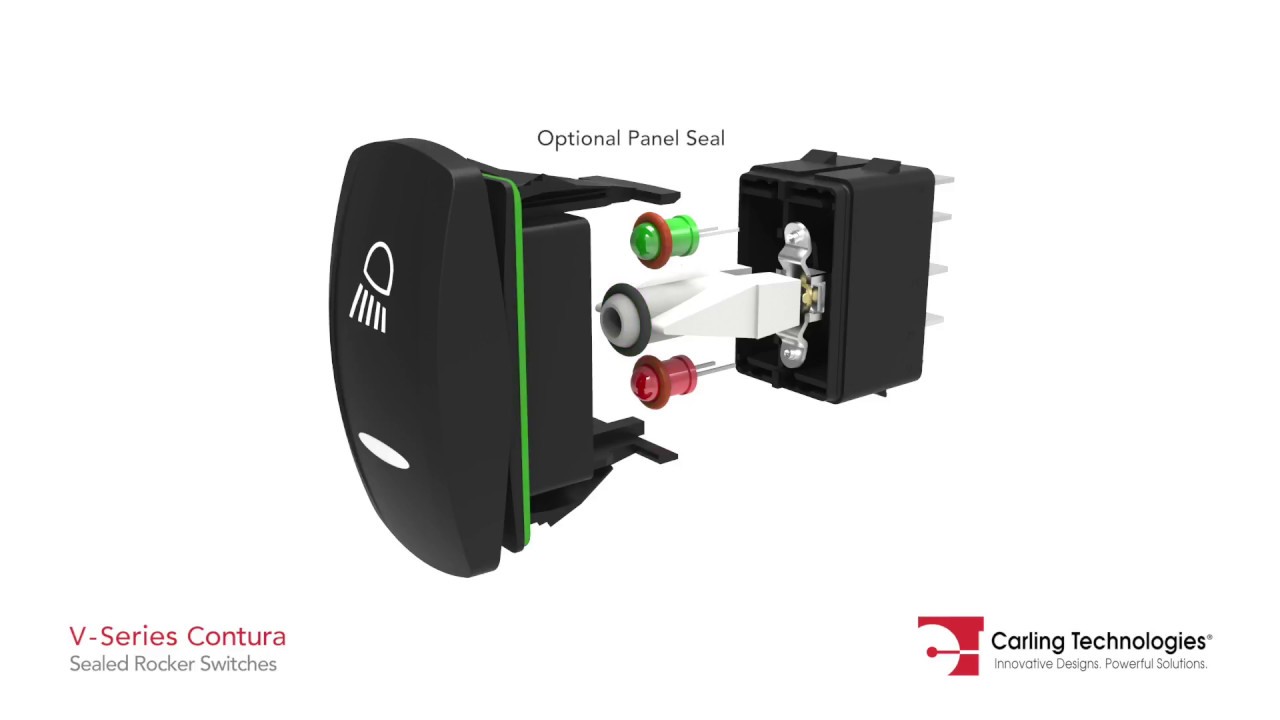

V-Series Video
