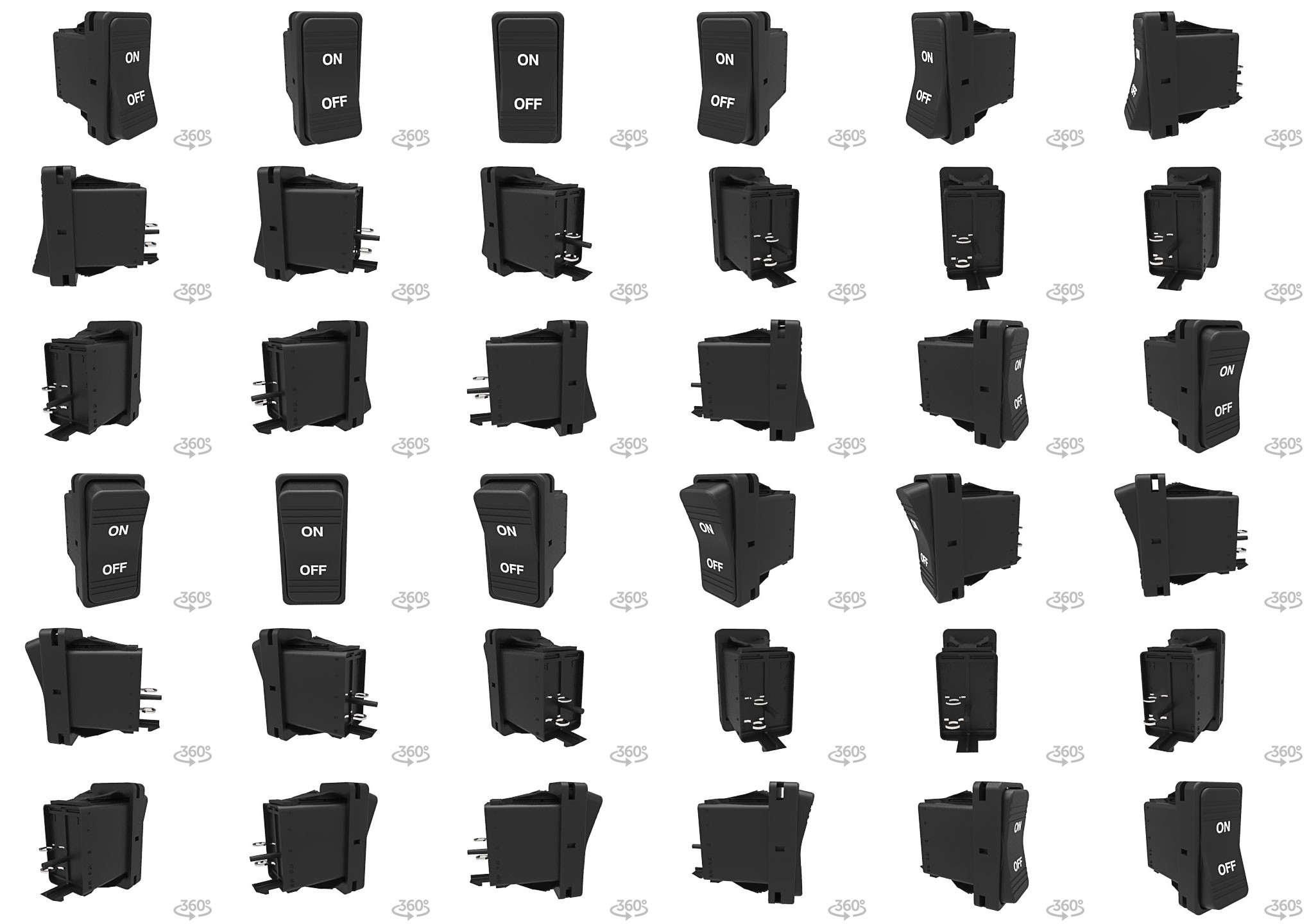

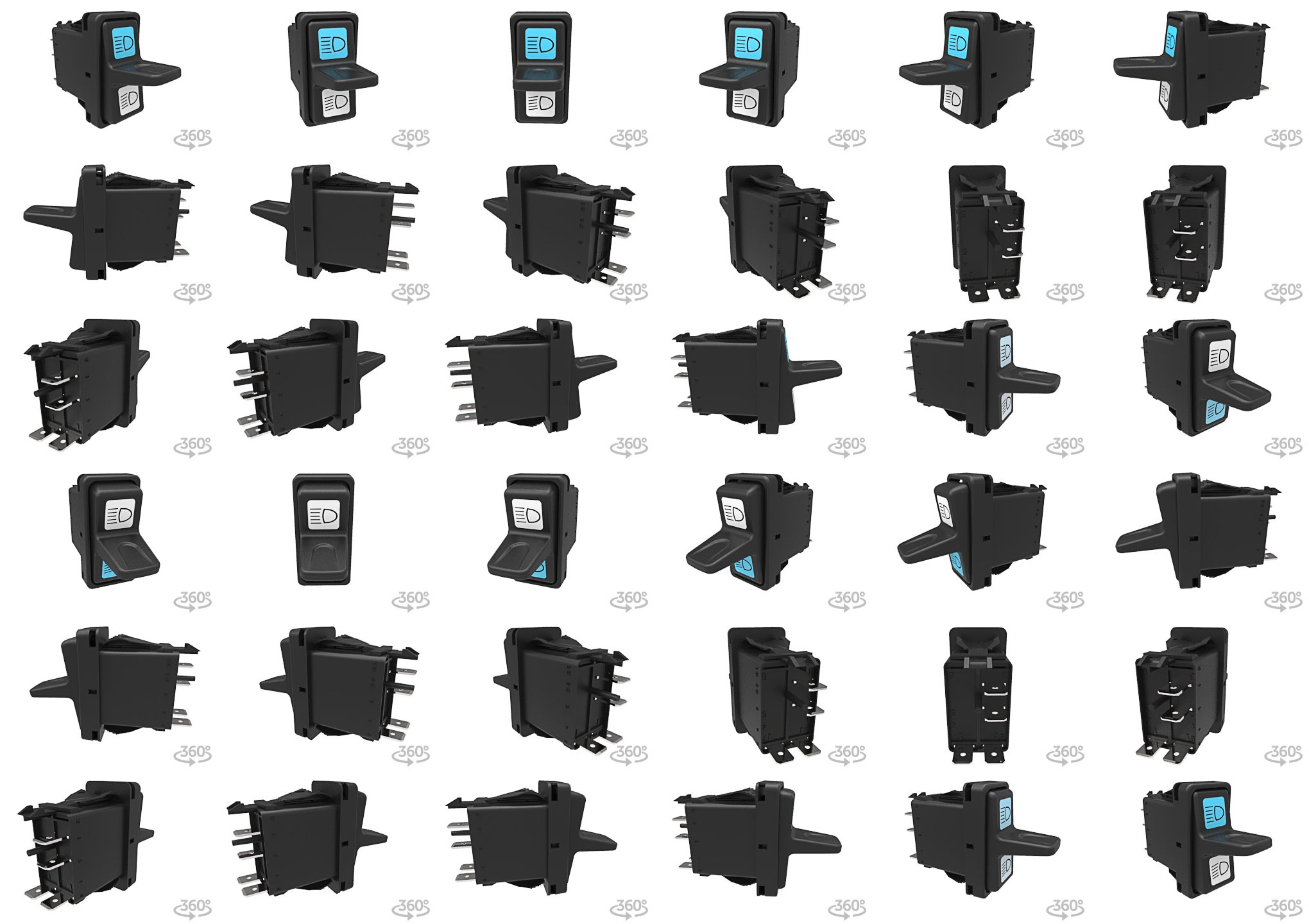

V-Series: Contura X, XI & XII

Product Type:

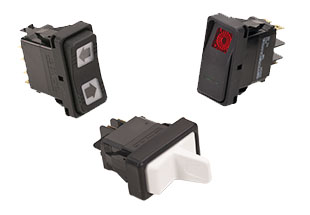

Sealed Rocker Switches

Description:

The V-Series Contura X, XI & XII snap-in rocker/paddle switches offer countless unique options including choices for ratings, circuits, colors, illuminations and and symbols. These single or double pole switches feature removable actuators in a choice of actuator styles and colors, and can be illuminated with either square or bar shaped lenses. Actuators and square lenses may also be purchased and stocked separately from the base assembly.

Contura X, XI & XII also feature a raised bracket/bezel which helps prevent inadvertent actuation of the switch. For increased durability of imprinted lens symbols, square lenses are offered in 1-piece or 2-piece constructions. An optional plug-in terminal connector enables pre-wiring of wire harness.

The Contura switches, with sealed option for front panel components of the switch only, are certified to IP66 and IP68, signifying complete protection against dust and prolonged spray and submersion under pressure, and are recognized to UL1500 - Ignition Protection for Marine Products. These switches are vibration, shock, thermoshock, moisture and salt spray resistant. Temperature ratings range from -40 deg. C to 85 deg. C.

View Similar Products »
Certifications

UL CSA DEMKO SEMKO NEMKO

Number of Poles

1-2 poles

Ratings

10A 250VAC
15A 125VAC
1/2HP

15A 125VAC
1/2HP
12(2)A 125VAC uT85

15A 125VAC
1/2HP
12(6)A 125VAC T85

10A 250VAC
15A 125VAC
1/2HP 125-250VAC
12(2)A 250VAC uT85

10A 250VAC
15A 125VAC
1/2HP 125-250VAC
12(6)A 250VAC T85

15A 24V

20A 18V

20A 12V

20A 6V

20A 3V

Dielectric Strength

2,000 V RMS opposite polarity
4,000 V RMS between live parts
and operator accessible surface

Insulation Resistance

50 megohms (minimum)

Base Material

Polyester

Actuator Style

Concave or convex rocker with grooved finger traction
Concave or convex with smooth surface
Illuminated concave or convex rocker with square lens(es)
Illuminated concave or convex rocker with bar lens(es)
Illuminated concave or convex rocker with combination square and bar lenses
Locking Rocker
Paddle
Illuminated paddle

Actuator Material

Underlay/lens - Polycarbonate
Hard overlay - Nylon
Soft Touch overlay - Thermoplastic elastomer

Bracket/Bezel Material

Nylon

Terminal Options

.250 QC Tabs

Mounting Method

Snap-In

Mounting Hole Dimensions

.83" x 1.45" ; 21.08mm x 36.83mm

Value Added

Custom colors and legends available
Special circuits
Hazard warning circuits
Square lenses offered in 1-piece or 2-piece constructions (for increased durability of imprinted lens symbols)
Mounting Panels
Optional lock-on terminal connector
Hole Plug
Actuator removal tool
and more

On/Off Highway Equipment
Marine
Military Armored Vehicles
Mining Machinery and Equipment
Any application requiring environmental protection
