N11-B0-24-610-121-D3

Category: N-Series

Submit Request	Estimated Annual Quantity
	Application	I want a quote. I want a sample.

Line Drawing - Click to Enlarge

Current Rating	10 amp
Voltage	240VAC
Poles	1
Trip Time Delay	50/60Hz Medium
Interrupting Capacity	10,000 amps
Circuit	Series Trip (Current)
Mounting	6-32 x 0.195" Threaded Insert
Termination	Screw

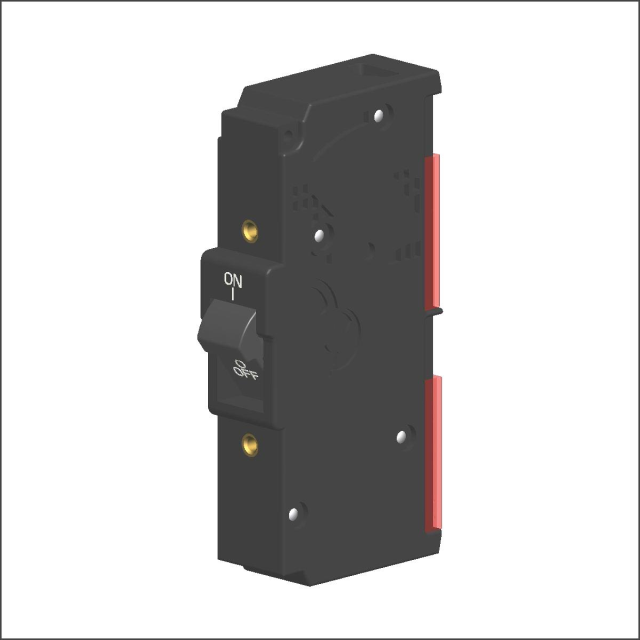

Actuator Type	Single Color Low Profile Rocker
Illumination	Non-Illuminated
Agency Approvals	TUV Certified to IEC/EN 60947-2\|UL 489 Listed
Group	Circuit Protection
Series	N-Series
Product Type	N-Series Circuit Breaker
3D CAD	Yes
