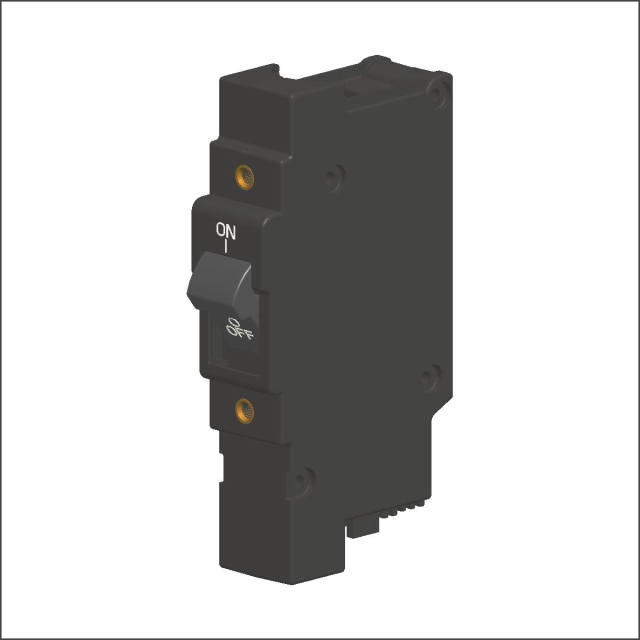

L11-B0-24-620-221-D3

Category: L-Series

Submit Request	Estimated Annual Quantity
	Application	I want a quote. I want a sample.

Line Drawing - Click to Enlarge

Current Rating	20 amp
Voltage	240VAC
Poles	1
Trip Time Delay	50/60Hz Medium
Interrupting Capacity	5,000 amps
Circuit	Series Trip (Current)
Mounting	6-32 x 0.195" Threaded Insert
Termination	Screw 8-32 Bus Type
Actuator Type	Single Color Low Profile Rocker
Illumination	Non-Illuminated
Agency Approvals	TUV Certified to IEC/EN 60934\|UL 489 Listed
Group	Circuit Protection
Series	L-Series
Product Type	L-Series Circuit Breaker
3D CAD	Yes
