EA1-B0-14-810-32E-BC

Category: E-Series

Submit Request	Estimated Annual Quantity
	Application	I want a quote. I want a sample.

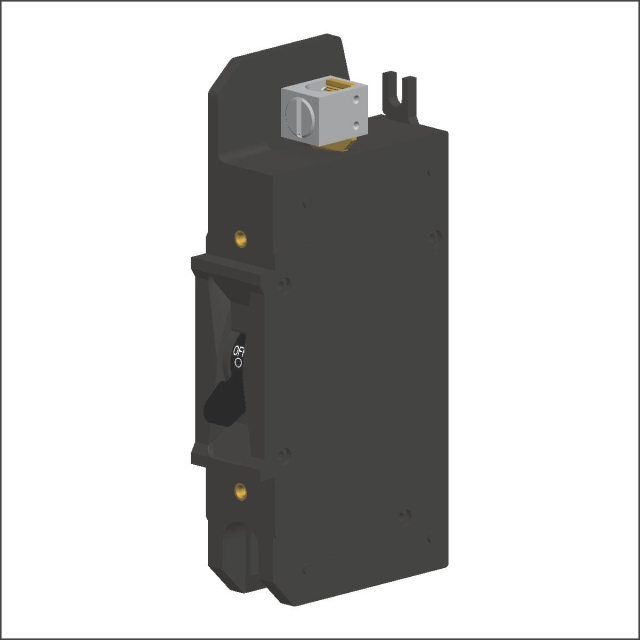

Line Drawing - Click to Enlarge

Current Rating	100 amp
Voltage	125VDC
Poles	1
Trip Time Delay	DC Medium
Interrupting Capacity	5,000 amps
Circuit	Series Trip (Current)
Mounting	Front Connected, Long Back Mounting Foot with 6-32 Front Mounting Insert
Termination	Box Wire Connector, Front Connected
Actuator Type	Handle
Illumination	Non-Illuminated
Agency Approvals	CSA Accepted\|UL 489 Listed
Group	Circuit Protection
Series	E-Series
Product Type	E-Series Circuit Breaker
3D CAD	Yes
