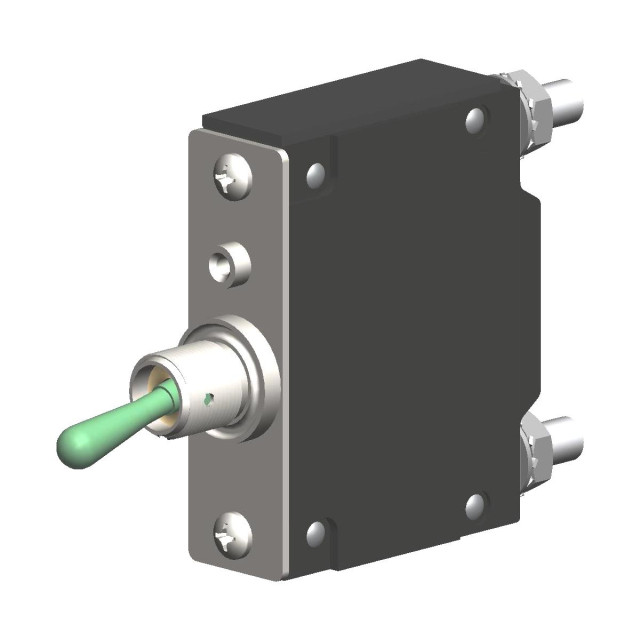

CM1-B0-16-660-301-I

Category: C-Series

Submit Request	Estimated Annual Quantity
	Application	I want a quote. I want a sample.

Line Drawing - Click to Enlarge

Current Rating	60 amp
Poles	1
Trip Time Delay	DC Long
Circuit	Series Trip (Current)
Mounting	Standard Hex Nut
Termination	Stud 1/4-20
Actuator Type	Sealed Toggle
Illumination	Non-Illuminated
Agency Approvals	UL 1077 Recognized\|CSA Accepted\|UL 1500 Recognized
Group	Circuit Protection
Series	C-Series
Product Type	C-Series Circuit Breaker
3D CAD	Yes
