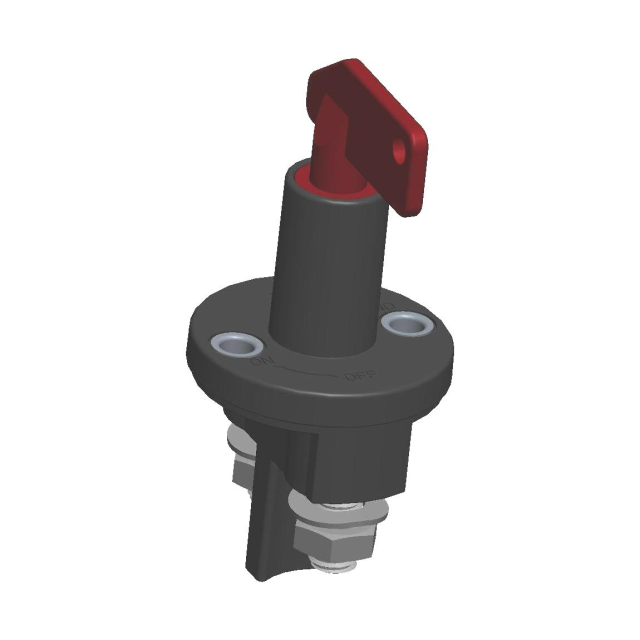

- BD1-1A1
Line Drawing - Click to Enlarge
Product Details
| Poles | 1 |
| Rating | 250A |
| Voltage | 12/24VDC |
| Horsepower | not HP rated |
| Switch Type | Battery Disconnect Switch |
| Actuator Type | Removable Key |
| Mounting | Screw |
| Termination | M10 Stud |
| Illumination | Non-Illuminated |
| Group | Switch |
| Series | BD1-Series |
| Product Type | Battery Disconnect Switch |
| Generic Std | Yes |
| 3D CAD | Yes |
| IP Rating | IP67 |
| Documentation | |
| Datasheet | bd1-series_datasheet.pdf |
| Product Video | K_3diYl2jEA |
| Product Page Link | battery-disconnect-bd1-series |
